THIS PRODUCT IS NO LONGER AVAILABLE. Click to see recommended item > L626D (CL-75)
Centre Lathe
  • 1 of 31
  • 2 of 31
    Chuck Guard with Micro
  • 3 of 31
    2 Axis Digital Readout Scale
  • 4 of 31
    Quick Change Toolpost
  • 5 of 31
    Quick Change Toolpost Rear View
  • 6 of 31
    Saddle Right View
  • 7 of 31
    Saddle Left View
  • 8 of 31
    Saddle Controls
  • 9 of 31
    One Shot Lubrication
  • 10 of 31
    Cross Feed Handle
  • 11 of 31
    Saddle Hand Wheel
  • 12 of 31
    Clutch Feed adjsutment
  • 13 of 31
    Compound Slide Angle Scale
  • 14 of 31
    Saddle Stop
  • 15 of 31
    Thread Chasing Dial Indicator Table
  • 16 of 31
    Spindle Engagement Lever
  • 17 of 31
    Taper Turning Attachment
  • 18 of 31
    Taper Turning Attachment Scale
  • 19 of 31
    Light and Coolant Hose
  • 20 of 31
    Removable Gab Bed
  • 21 of 31
    3 Point Steady
  • 22 of 31
  • 23 of 31
    Tailstock Quill Scale
  • 24 of 31
    Tailstock Hand Wheel
  • 25 of 31
  • 26 of 31
    Ajustable Feed Knockout
  • 27 of 31
    Compound Slide
  • 28 of 31
  • 29 of 31
    Feed Chart
  • 30 of 31
    Headstock Speed Controls
  • 31 of 31
    Headstock Feed Controls
Order Code: L626T

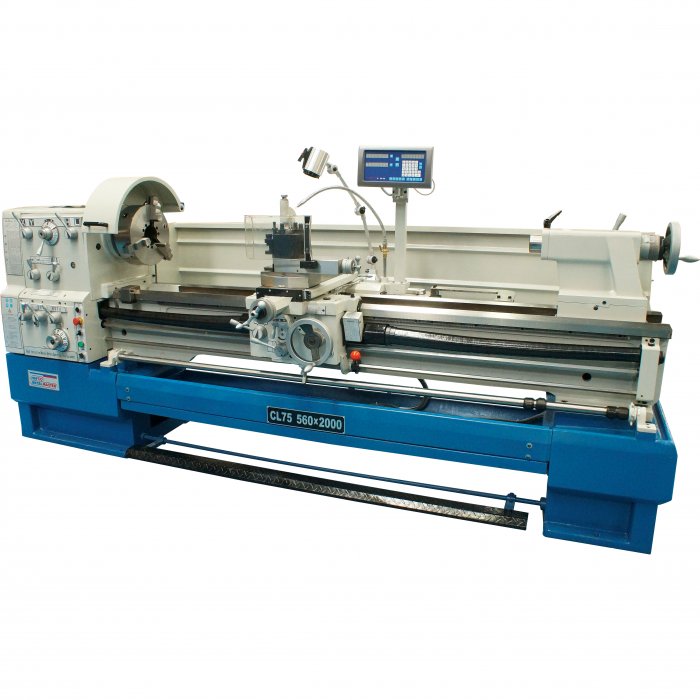

CL-75A - Centre Lathe (415V)
560 x 2000mm Turning Capacity - 105mm Bore
Includes Digital Readout, Quick Change Toolpost & Taper Turning Attachment
Swing Over Bed
Distance Between Centres
Spindle Bore
Swing In Gap
Swing Over Cross-slide
Digital Readout System Fitted
Quick Change Toolpost Fitted
Taper Turning Attachment
Coolant System
Tool Height To Suit
Centre Height
Spindle Nose Size or Type
D1-8 Camlock
Bed Width
Headstock Spindle Taper
Tailstock Taper
Cross Slide Travel
Compound Slide Travel
Cross Feed Range (X-Axis)
Longitudinal Feed Range (Z-Axis)
Metric Thread Steps & Pitch Range
47 (0.2-14mm)
Imperial Thread Steps & TPI Range
60 (2-112TPI)
3 Jaw Chuck Diameter
4 Jaw Chuck Diameter
Spindle Steps / Speed Range
12 (25-1500rpm)
Motor Power
7.5kW / 10hp
Weight (nett)
  • 2 Axis digital readout system
  • Quick change toolpost
  • Taper turning attachment fitted to saddle
  • Triple bearings supporting headstock spindle
  • Adjustable taper roller bearings providing spindle accuracy
  • Precision 'V'-beds & headstock gears are all hardened & ground
  • Slide out swarf tray for removal of waste material
  • Overload protection on drive motor and coolant system
  • Universal enclosed gearbox incorporating metric & imperial thread capabilities
  • Inching button incorporated on the control panel for convenient spindle speed selection
  • Foot operated spindle brake with safety cut out switch
  • 350mm wide induction hardened heavy duty cast iron bed
  • Removable gap bed allowing work piece to swing up to 785mm
  • Chuck guard fitted with safety micro switch
  • Powered longitudinal and cross feeds
  • Adjustable 4 position length-stop mechanism for accurate repetitive operation
  • Micro adjustable saddle stop
  • Dual calibrated dials incorporating metric & imperial graduations
  • Coolant system with flexible hose enabling operator to manipulate flow direction
  • Oil sight glass for head stock and gearbox
  • Low voltage halogen work light
  • Lubrication pump on saddle oiling slides
  • D1-8 camlock spindle for quick chuck removal
  • 12 spindle speeds from 25-1500rpm
  • Large 105mm spindle bore
  • 7.5kW / 10HP 415V main motor
  • 2 Axis digital readout system
  • Quick change toolpost
  • Taper turning attachment fitted to saddle
  • Concertina leadscrew covers
  • 315mm 3-jaw chuck with reverse jaws
  • 350mm 4-jaw chuck
  • Face plate
  • Fixed steady with roller bearings
  • Travelling steady with brass guides
  • Dead centres
  • Thread chasing dial
  • Foot brake
  • Coolant system
  • Work light
  • Rear splash guard
  • Spindle reducing bush
