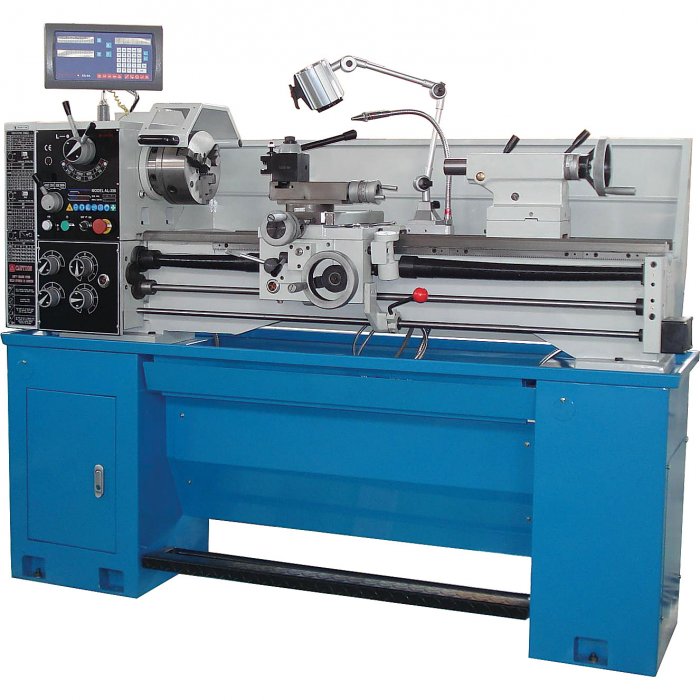

HAFCO METALMASTERAL-356
Centre Lathe
  • 1 of 21
    L564D
  • 2 of 21
    2 Axis Digital Readout
  • 3 of 21
    3 Jaw Chuck and Safety Guard
  • 4 of 21
    Quick Change Toolpost
  • 5 of 21
    Automatic Feed and Thread Cutting Levers
  • 6 of 21
    Gearbox Feed Controls
  • 7 of 21
    Metric Thread Chart
  • 8 of 21
    Imperial Thread Chart
  • 9 of 21
    Longitudinal and Cross feed Chart
  • 10 of 21
    Fixed and Travelling Steadies
  • 11 of 21
    Light and Coolant
  • 12 of 21
    Tailstock
  • 13 of 21
    Thread Chasing Dial
  • 14 of 21
    Cross Feed Handwheel
  • 15 of 21
    Swivel Compound Table
  • 16 of 21
    Saddle Feed Handwheel
  • 17 of 21
    Tail Stock Feed Handwheel
  • 18 of 21
    Induction Hardened Bed Ways
  • 19 of 21
    Adjustable Tailstock
  • 20 of 21
    Leadscrew Covers
  • 21 of 21
    Slideout Swarf Tray
Order Code: L564D
AL-356 - Centre Lathe (240V)
356 x 1000mm Turning Capacity - 51mm Bore
Includes Digital Readout & Quick Change Toolpost
HAFCO METALMASTER
ORDER CODE
L564D
MODEL
AL-356
Swing Over Bed (mm)
356
Distance Between Centres (mm)
1000
Spindle Bore (mm)
51
Swing In Gap (mm)
476
Swing Over Cross-slide (mm)
224
Digital Readout System Fitted
Quick Change Toolpost Fitted
Leadscrew Covers Fitted
Coolant System
Tool Height To Suit (mm)
16
Centre Height (mm)
178
Spindle Nose Size or Type
D1-5 Camlock
Bed Width (mm)
187
Headstock Spindle Taper (MT)
6
Tailstock Taper (MT)
4
Cross Slide Travel (mm)
160
Compound Slide Travel (mm)
68
Leadscrew Type
Metric
Metric Cross Feed Range (X-Axis) (mm/rev)
0.022 - 0.298
Metric Longitudinal Feed Range (Z-Axis) (mm/rev)
0.078 - 1.044
Metric Thread Steps & Pitch Range (No. / mm)
32 (0.45 - 10)
Imperial Thread Steps & TPI Range (No. / TPI)
20 (2-1/4 - 40)
3 Jaw Chuck Diameter (mm)
200
4 Jaw Chuck Diameter (mm)
200
Spindle Steps / Speed Range (No. / rpm)
8 (70 - 1900)
Motor Power (kW / hp)
1.8 / 2.4
Voltage / Amperage (V / amp)
240 / 15
Nett Weight (kg)
650
Features
  • 2 Axis digital readout system
  • Quick change toolpost with 4 holders
  • Concertina leadscrew cover
  • Gear drive headstock for quick change of spindle speeds
  • Precision 'V'-beds are hardened and ground, incorporating a rigid webbed casting
  • Low voltage work light
  • Foot operated spindle brake with safety cut out switch
  • Change gears for metric and imperial thread cutting
  • Oil sight glass for head stock and gearbox
  • Adjustable taper roller bearings support the spindle
  • Inching button is incorporated on the control panel for convenient spindle speed selection
  • Enclosed quick action gearbox for thread cutting and auto feeding
  • Powered longitudinal and cross feeds
  • D1-5 camlock spindle for quick chuck changes and safe reverse-direction turning. ISO standard
  • Removable gap bed-way for larger diameter jobs
  • Dual calibrated dials (except for saddle hand-wheel)
  • Chuck & change gear guards are fitted with micro switches
  • Coolant system with flexible hose
  • Slide out swarf tray
Includes
  • 2 Axis digital readout system
  • Concertina leadscrew covers
  • Quick change tool-post with 4 holders
  • 200mm 3-jaw chuck with reverse jaws
  • 200mm 4-jaw chuck
  • Face plate
  • Fixed steady
  • Travelling steady
  • Change gears
  • Dead centres
  • Thread-chasing dial
  • Work light
  • Cast iron stand
  • Rear splash guard & swarf tray
  • Tool box
  • Instruction booklet
