Right Hand Turning Tool Holder - CTGPR-1212-F11
12mm Tool Height
Insert tip not included
L400
1 of 4
Full View
2 of 4
Side View
3 of 4
Locking Tool
4 of 4
Discontinued
Order Code: L400
Made in Taiwan
Description
Right Hand Turning Tool Holder - CTGPR-1212-F11
12mm Tool Height
Insert tip not included
Overview
Quality Tipped Tool Holders ISO Standard to suit Tungsten Carbide Indexable Insert Tips.
NOTE: Inserts not included with tool holders
Use insert TPMR 110304 (L061)
NOTE: Inserts not included with tool holders
Use insert TPMR 110304 (L061)
Features
- Positive rake turning tool holder with 90º approach angle
- Suitable for heavy duty cutting
- Right hand tool holder suitable for turning towards the chuck
Compare Product Range
Specifications
| ORDER CODE | L400 |
|---|---|
| Part Number - Style | CTGP |
| (mm)Tool Height Size | 12 |
| Application | ~ |
| Hand Type | Right |
| Insert Type | TPMR11 |

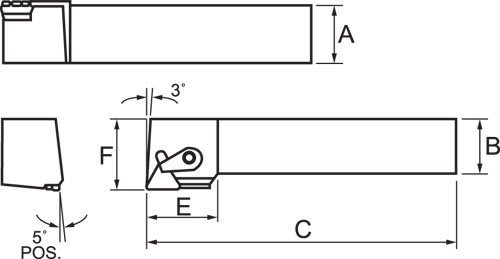

| (mm)A (H) | 12 |
| (mm)B | 12 |
| (mm)C (LF) | 80 |
| (mm)F (WF) | 16 |
| (mm)E | 20 |
