THIS PRODUCT IS NO LONGER AVAILABLE. Click to see similar products > Toolpost - Quick Change Toolpost
TOOLMASTERModel E5
Quick Change Toolpost - 40 Position
  • 1 of 3
    L2992
  • 2 of 3
    Quick Change Toolpost
  • 3 of 3
    40 Position
Order Code: L2992
Model E5 - Quick Change Toolpost - 40 Position
100 - 200mm Lathe Centre Height
TOOLMASTER
ORDER CODE
L2992
Model
E5
Lathe Centre Height
100 - 200mm
Lathe Swing
200 - 400mm

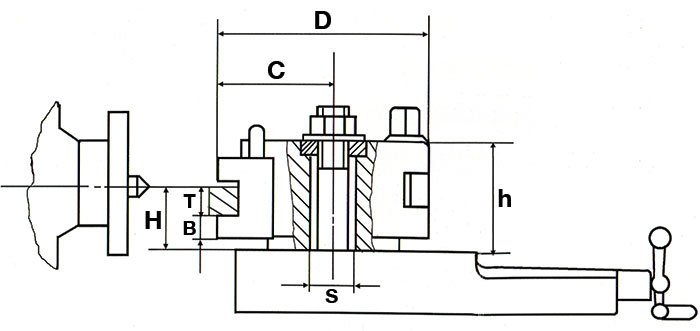

B
12mm
C
66mm
D
132mm
H
32-52mm
h (lowercase)
68mm
S
20mm
T
20mm
No. Holders
4
Weight (nett)
6.2kg
Description
40 Position European style quick change toolpost.
Basic body and tool holders are made of high quality steel which is hardened and ground. The tool holders are clamped against the body with an eccentric bolt.
Features
  • The system allows a repeat accuracy of 0.01mm with 40 possible angular positions of the tool holder
  • Body and tool holder are both made of high quality steel which is hardened and ground
  • Tool holder is clamped against the body by an eccentric bolt
  • Supplied with 3 square tool holders and one vee tool holder
  • Please Note: Some machining required to suit your lathe
Includes
  • 3 x square tool holders
  • 1 x Vee tool holder
Optional Accessories
  • Holders - L2993
