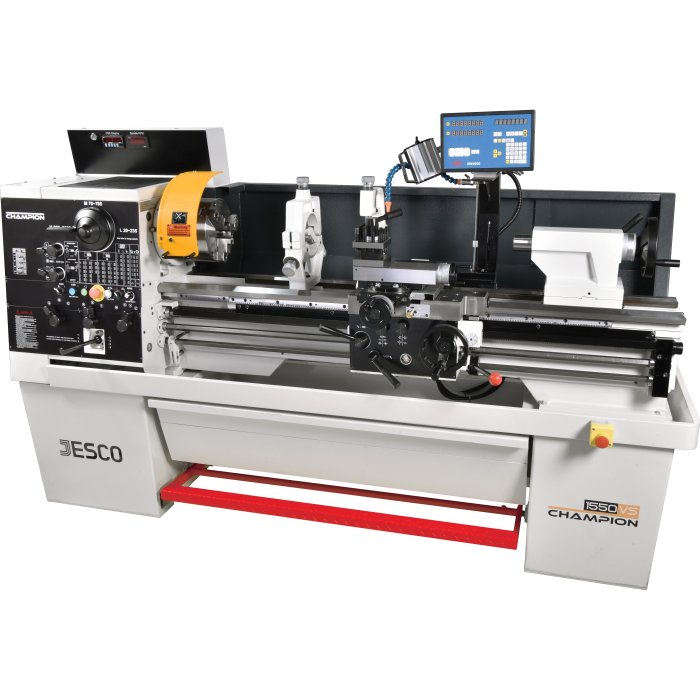

HAFCO METALMASTERDASHIN CHAMPION 2500VS
Centre Lathe
  • 1 of 35
    L255VS
  • 2 of 35

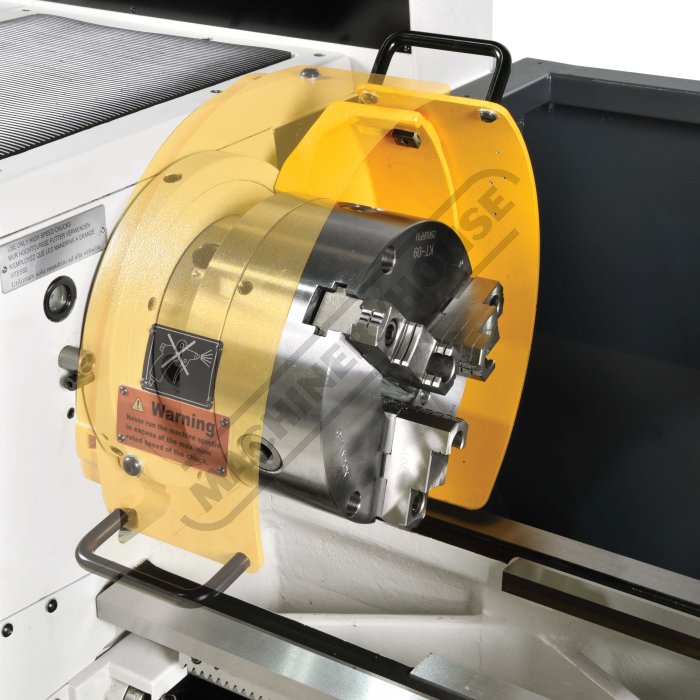

    Chuck guard with safety micro switch cut out
  • 3 of 35

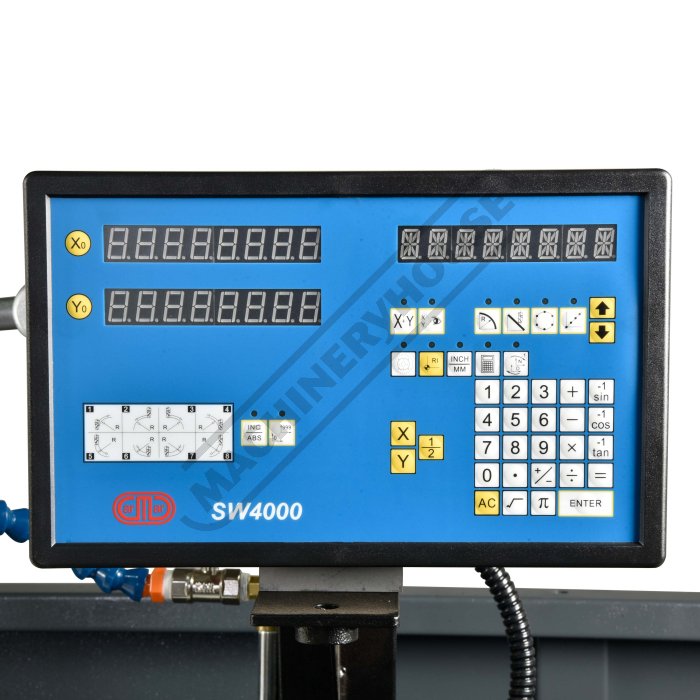

    2 Axis digital readout system
  • 4 of 35

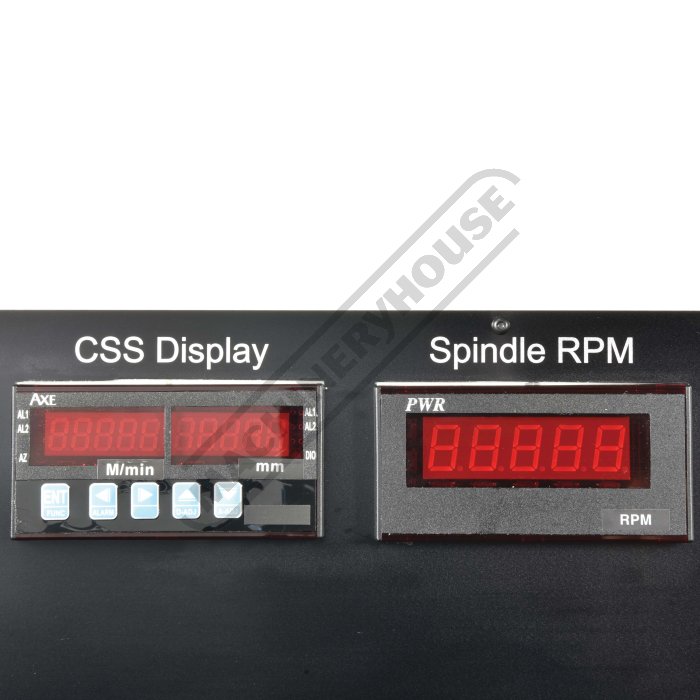

    Constant Surface Speed Digital Read Out
  • 5 of 35
    Spindle Speed Digital Read Out
  • 6 of 35

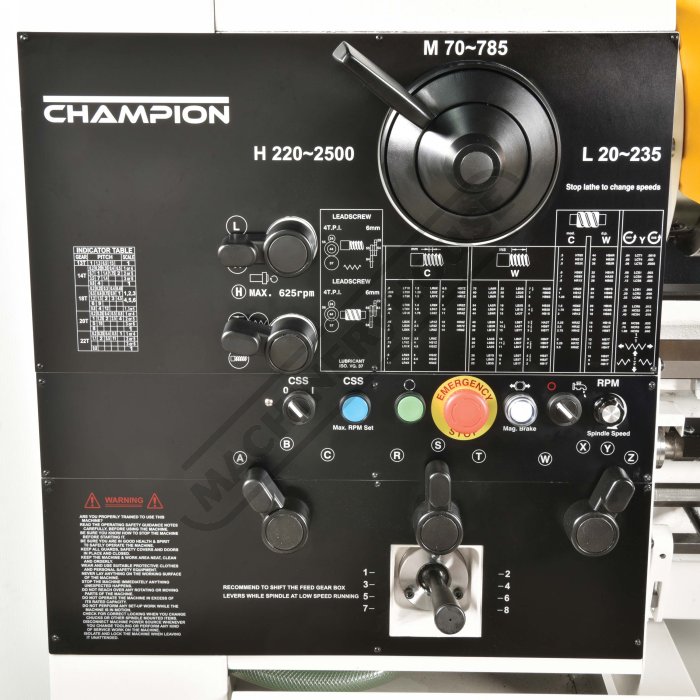

    Headstock Controls
  • 7 of 35
    Speed Control Lever
  • 8 of 35
    Feed Lever
  • 9 of 35

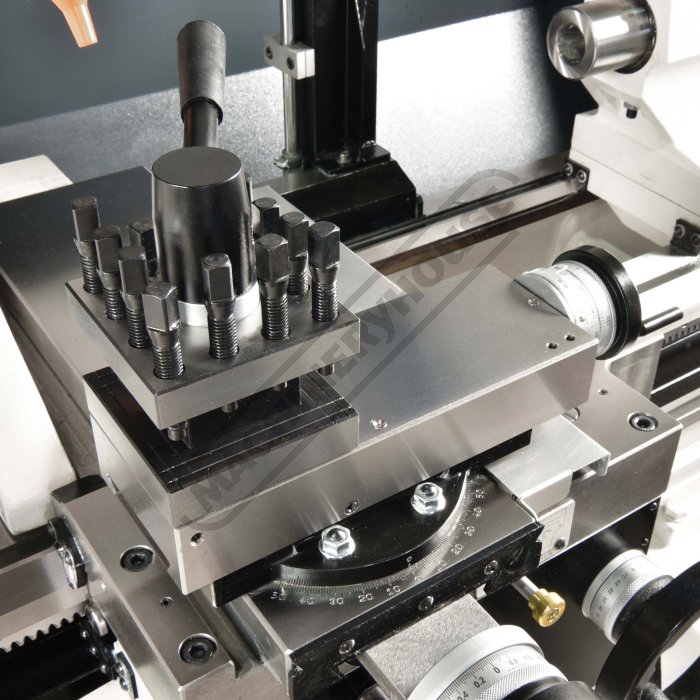

    Toolpost
  • 10 of 35
    Saddle - Left View
  • 11 of 35
    Saddle
  • 12 of 35

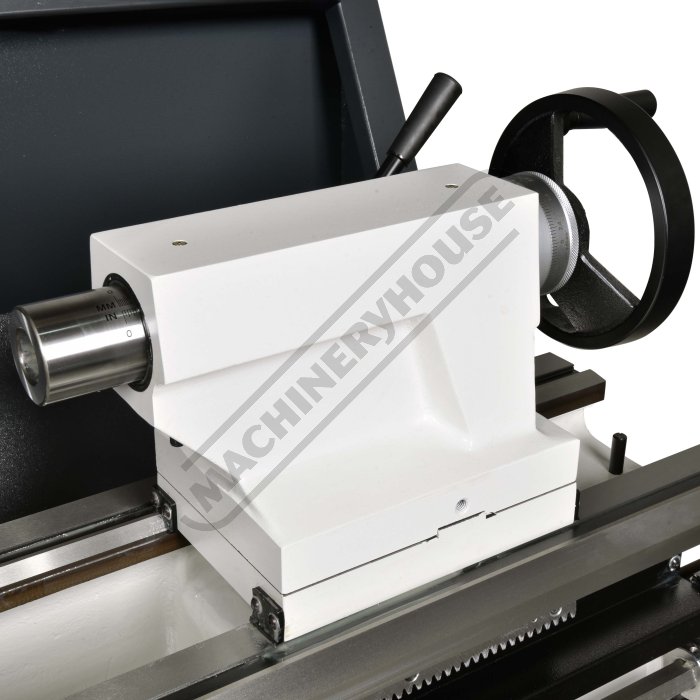

    Heavy duty tailstock
  • 13 of 35

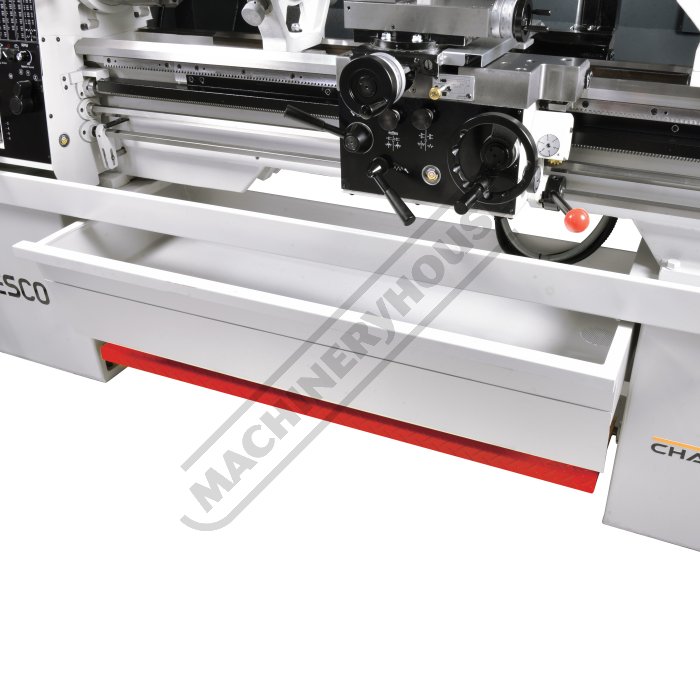

    Slide out tray for easy cleaning
  • 14 of 35
    2 Point Steady
  • 15 of 35

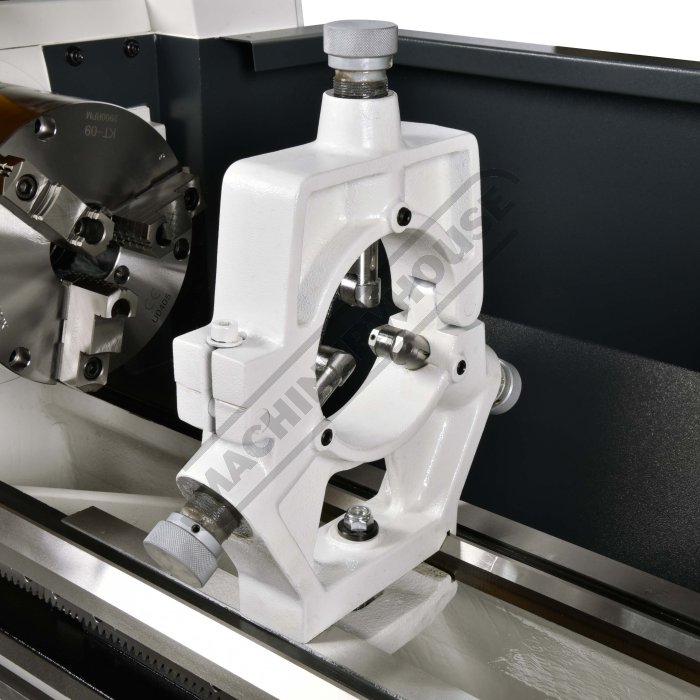

    3 Point Steady
  • 16 of 35
    Bed
  • 17 of 35
    Leadscrew covers
  • 18 of 35
    Safety Micro to Belt Cover
  • 19 of 35

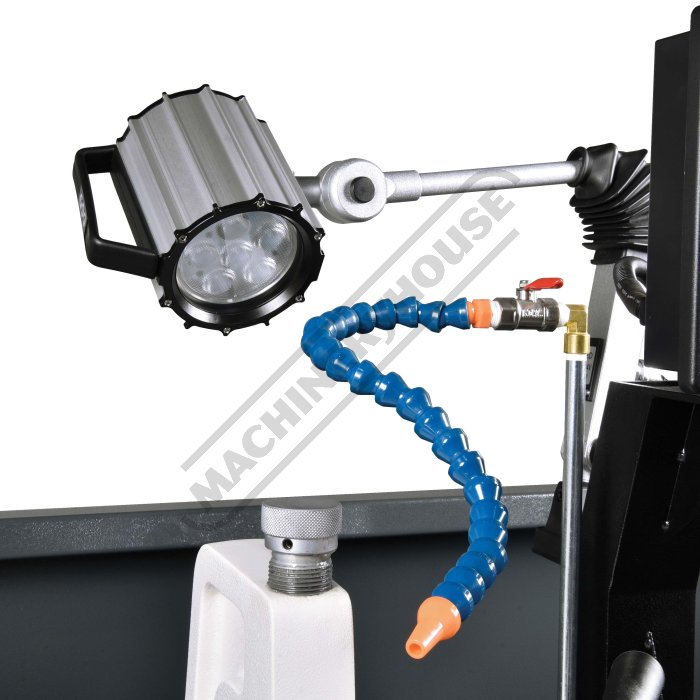

    Coolant Nozzle and Work Light
  • 20 of 35
    Compound Slide
  • 21 of 35
    Cross Slide Handle
  • 22 of 35
    Cross Slide Handle
  • 23 of 35
    Saddle Handle
  • 24 of 35
    Electro Magnetic Disc Brake
  • 25 of 35
    Scale for DRO
  • 26 of 35
    Adjustable Feed Torque Clutch
  • 27 of 35

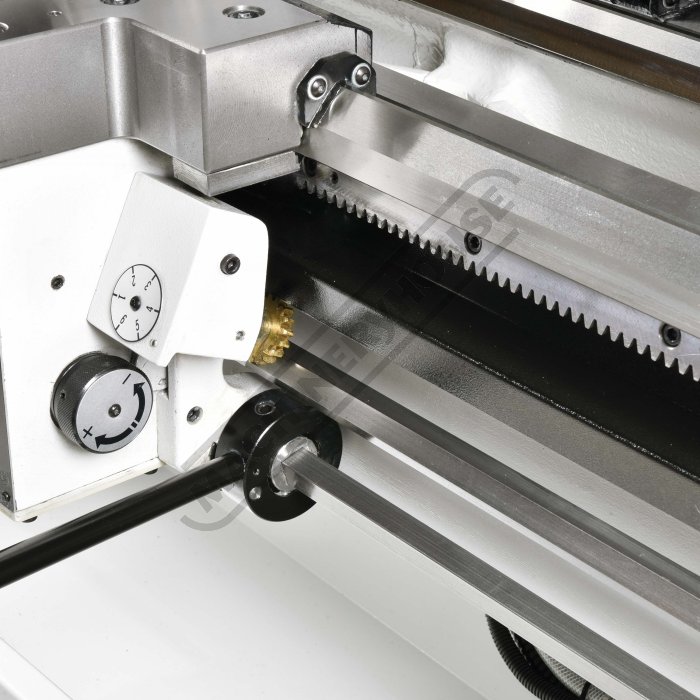

    Thread Chasing Dial
  • 28 of 35
    Saddle controls
  • 29 of 35

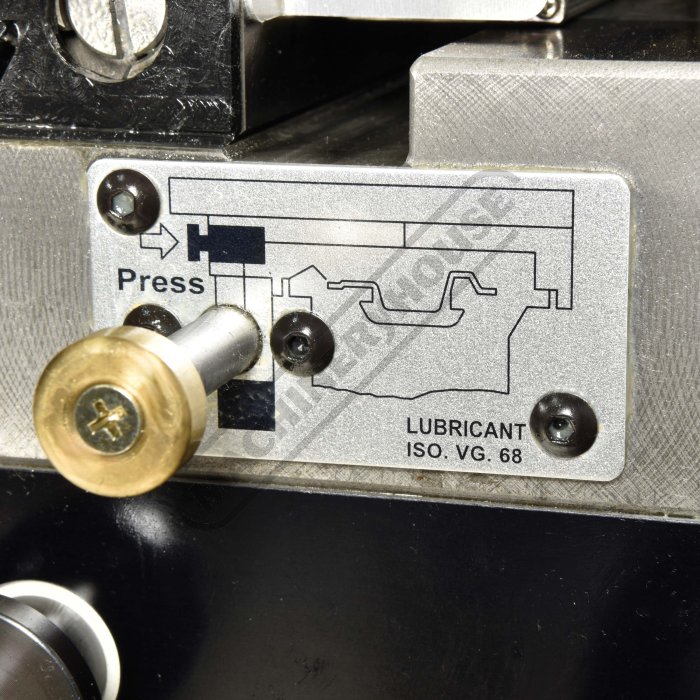

    Lubrication pump for slide
  • 30 of 35
    Mechanical Foot Brake
  • 31 of 35
    Leadscrew Covers
  • 32 of 35

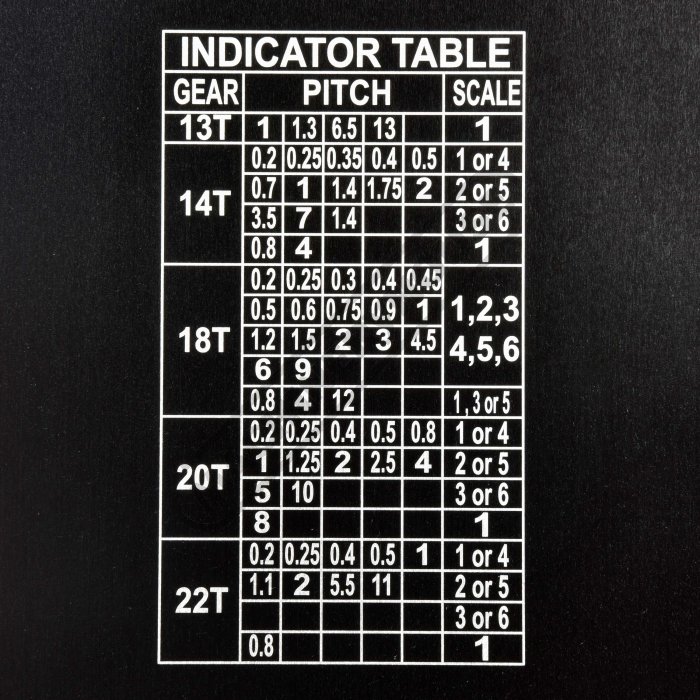

    Indicator Table
  • 33 of 35
    Feed Chart and Levers
  • 34 of 35

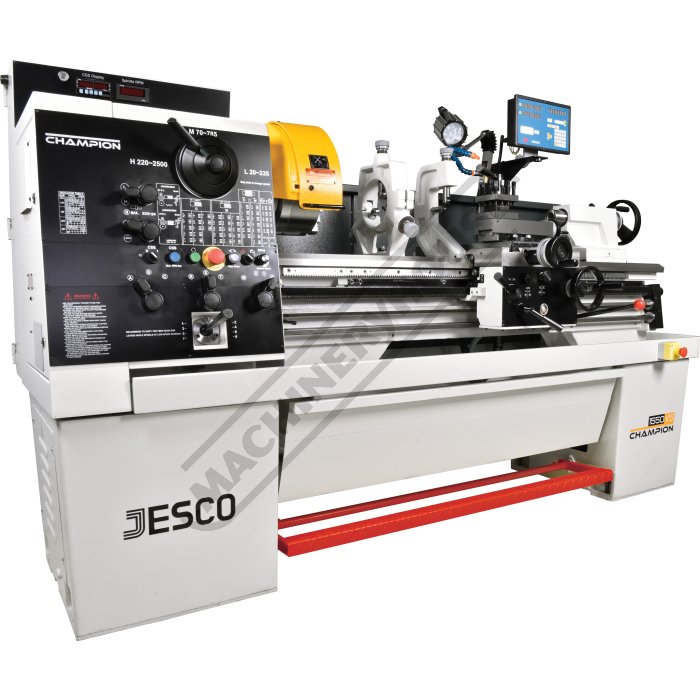

    Front View
  • 35 of 35
    Left View
Order Code: L255VS
DASHIN CHAMPION 2500VS - Centre Lathe (415V)
390 x 1250mm Turning Capacity - 55mm Bore
Includes Digital Readout, Variable Spindle Speed & (CSS) Costant Surface Speed System
HAFCO METALMASTER
ORDER CODE
L255VS
Model
DASHIN CHAMPION 2500
Digital Readout System Fitted
Quick Change Toolpost Fitted
Optional
Leadscrew Covers Fitted
Coolant System
Tool Height To Suit
20mm
Distance Between Centres
1250mm
Swing Over Bed
390mm
Swing Over Cross-slide
240mm
Swing In Gap
610mm
Centre Height
190mm
Spindle Bore
55mm
Spindle Nose Size or Type
D1-6
Bed Width
270mm
Headstock Spindle Taper
6MT
Tailstock Taper
4MT
Cross Slide Travel
230mm
Compound Slide Travel
120mm
Leadscrew
Meric
Cross Feed Range (X-Axis)
0.02-0.5mm/rev
Longitudinal Feed Range (Z-Axis)
0.040-1.00mm/rev
Metric Thread Steps & Pitch Range
39(0.2-14mm)
Imperial Thread Steps & TPI Range
45(2-72TPI)
3 Jaw Chuck Diameter
230mm
4 Jaw Chuck Diameter
250mm
Spindle Steps / Speed Range
Variable (18-2500rpm)
Motor Power
5.5kW / 7.5HP
Voltage
415V
Weight (nett)
1500kg
Description
Manufactured in Taiwan
Features
  • 2 axis digital readout system
  • YASKAWA Varispeed high-performance, Low-noise, Inverter drive
  • Constant surface speed cutting - Allows for auto acceleration of the spindle when facing or reducing diameters
  • Electronic variable speed system 18-2500rpm, with high/low speed selector - low noise emissions below 80dba
  • Dual braking system - Mechanical foot brake plus electromagnetic for safety
  • Feed shaft fitted with torque limiting safety clutch
  • Precision Taiwanese machine, sold for over 34 years
  • Adjustable taper roller bearings providing spindle accuracy
  • Precision 'V'-beds & headstock gears are all hardened & ground
  • Chuck guard with safety micro switch cut out
  • Overload protection on drive motor and coolant system
  • Universal enclosed gearbox incorporating metric & imperial thread capabilities
  • Inching button incorporated on the control panel for convenient spindle speed selection
  • Foot operated spindle brake with safety cut out switch
  • 270mm wide induction hardened heavy duty cast iron bed
  • Removable gap bed allowing work piece to swing up to 610mm
  • Powered longitudinal and cross feeds
  • Clutch in apron enabling pressure adjustment for feeding in both axis
  • Metric calibrated dials with clearly marked graduations
  • Coolant system with flexible hose enabling operator to manipulate flow direction
  • Oil sight glass for head stock and gearbox
  • Lubrication pump on saddle oiling slides
  • Change gears for metric and imperial thread cutting
Includes
  • 230mm 3-jaw chuck with reverse jaws
  • 250mm 4-jaw chuck
  • Fixed Steady with roller bearings
  • Travelling steady with roller bearings
  • Chuck guard
  • Dead centres
  • Thread chasing dial
  • Foot brake
  • Coolant system
  • Rear splash guard
  • Spindle reducing bush
  • Instruction booklet
