HAFCO METALMASTERCL-38A
Centre Lathe
  • 1 of 30
    L191D
  • 2 of 30
    Left View
  • 3 of 30

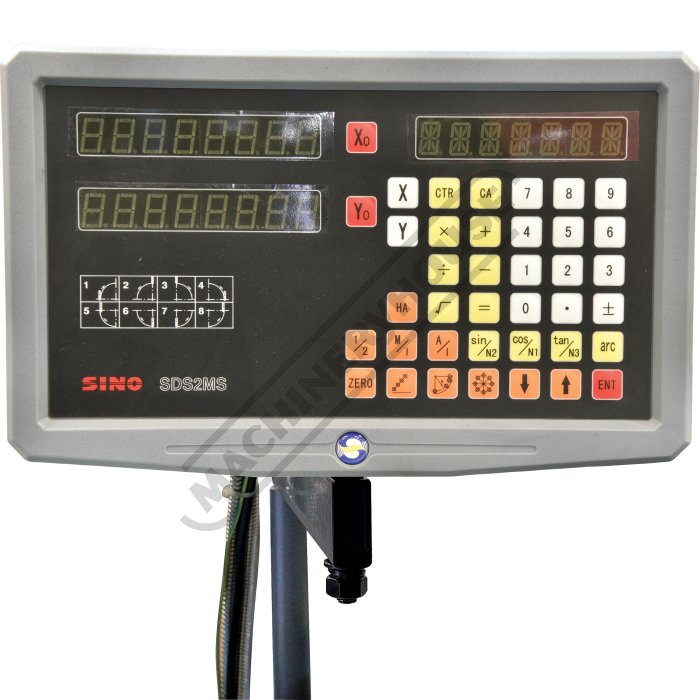

    2 Axis Digital Readout
  • 4 of 30
    Safety Chuck Guard
  • 5 of 30
    V Bed
  • 6 of 30
    Head Stock Control
  • 7 of 30
    Speed Selectors
  • 8 of 30
    Feed Gearbox
  • 9 of 30
    Back Gear Set Up Chart
  • 10 of 30
    Module and Diametral Pitch and Feed Chart
  • 11 of 30
    Thread Chart Metric
  • 12 of 30
    Inch Thread Chart
  • 13 of 30
    Leadscrew Covers
  • 14 of 30
    Saddle
  • 15 of 30
    Saddle Left View
  • 16 of 30
    Saddle Front View
  • 17 of 30
    One Shot Slide Way Lubrication
  • 18 of 30
    Foot Break
  • 19 of 30
    Saddle Stop
  • 20 of 30
    Adjustable 4 Position Saddle Stop
  • 21 of 30
    Spindle Engagement Handle
  • 22 of 30
    Thread Chasing Dial
  • 23 of 30
    Feed and Threading Lever
  • 24 of 30
    Cross Feed Handle
  • 25 of 30
    Saddle Hand Wheel
  • 26 of 30
    Compound Side Hand Wheel
  • 27 of 30
    Quick Change Tadpost Rear View
  • 28 of 30
    Tailstock
  • 29 of 30
    Tailstock Quill Scale
  • 30 of 30
    Tailstock Hand Wheel
Order Code: L191D
CL-38A - Centre Lathe (415V)
410 x 1000mm Turning Capacity - 52mm Spindle Bore
Includes Digital Readout & Quick Change Toolpost
HAFCO METALMASTER
On Special - Ends 30th June 2017
ex GST
inc GST
$8,890.00
$9,779.00
$8,690.00
$9,559.00

ORDER CODE
L191D
MODEL
CL-38A
Swing Over Bed (mm)
410
Distance Between Centres (mm)
1000
Spindle Bore (mm)
52
Swing In Gap (mm)
580
Swing Over Cross-slide (mm)
255
Digital Readout System Fitted
Quick Change Toolpost Fitted
Leadscrew Covers Fitted
Coolant System
Tool Height To Suit (mm)
20
Centre Height (mm)
205
Spindle Nose Size or Type
D1-6 Camlock
Bed Width (mm)
250
Headstock Spindle Taper (MT)
6
Tailstock Taper (MT)
4
Cross Slide Travel (mm)
210
Compound Slide Travel (mm)
140
Leadscrew Type
Metric
Metric Cross Feed Range (X-Axis) (mm/rev)
0.025 - 0.85
Metric Longitudinal Feed Range (Z-Axis) (mm/rev)
0.05 - 1.7
Metric Thread Steps & Pitch Range (No. / mm)
39 (0.2 - 14)
Imperial Thread Steps & TPI Range (No. / TPI)
45 (2 - 72)
3 Jaw Chuck Diameter (mm)
200
4 Jaw Chuck Diameter (mm)
250
Spindle Steps / Speed Range (No. / rpm)
16 (45 - 1800)
Motor Power (kW / hp)
3.3 / 4.5
Voltage / Amperage (V / amp)
415
Nett Weight (kg)
1550
Features
  • 2 axis digital readout system
  • Quick change toolpost
  • Triple bearings supporting headstock spindle
  • Adjustable taper roller bearings providing spindle accuracy
  • Precision 'V'-beds & headstock gears are all hardened & ground
  • One piece cast iron base increases rigidity
  • Overload protection on drive motor and coolant system
  • Universal enclosed gearbox incorporating metric & imperial thread capabilities
  • Inching button incorporated on the control panel for convenient spindle speed selection
  • Foot operated spindle brake with safety cut out switch
  • 250mm wide induction hardened heavy duty cast iron bed
  • Removable gap bed allowing work piece to swing up to 580mm
  • Chuck guard fitted with safety micro switch
  • Powered longitudinal and cross feeds
  • Adjustable 6 position length-stop on bed-way for accurate repetitive operation
  • Dual calibrated dials incorporating metric & imperial graduations
  • Coolant system with flexible hose enabling operator to manipulate flow direction
  • Oil sight glass for head stock and gearbox
  • Low voltage halogen work light
  • Lubrication pump on saddle oiling slides
  • D1-6 camlock spindle for quick chuck removal
  • Large 52mm spindle bore
  • 2 speed, 4.5hp, 415V motor
Includes
  • 2 Axis digital readout system
  • Quick change toolpost
  • Concertina leadscrew covers
  • 200mm 3-jaw chuck with reverse jaws
  • 250mm 4-jaw chuck
  • Face plate
  • Fixed steady with roller bearings
  • Travelling steady with roller bearings
  • Dead centres
  • Thread chasing dial
  • Foot brake
  • Coolant system
  • Work light
  • Rear splash guard
  • Spindle reducing bush
Product Brochure

Instruction Manual
9.08 MB
