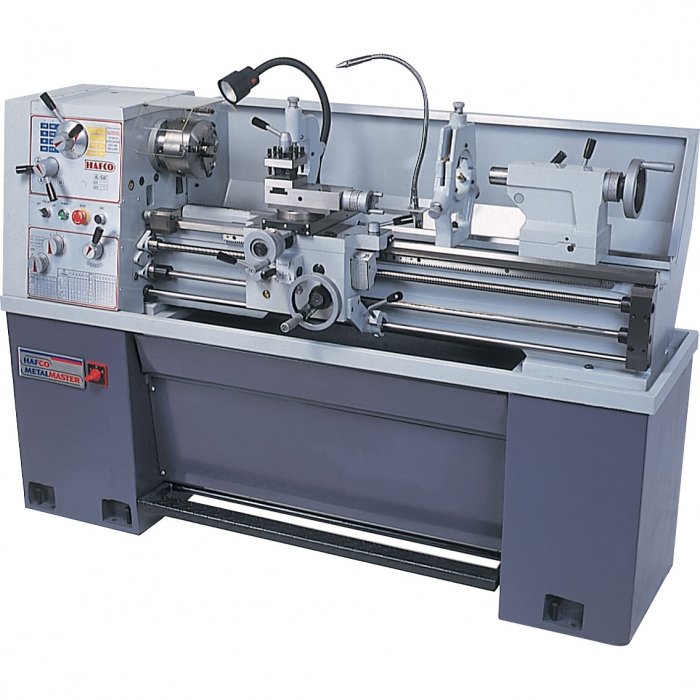

HAFCO METALMASTERAL-540D
Centre Lathe
  • 1 of 1
    L189D
Order Code: L189D
AL-540D - Centre Lathe (415V)
356 x 1000mm Turning Capacity
Includes Digital Readout
HAFCO METALMASTER
ORDER CODE
L189D
Model
AL-540D
Digital Readout System Fitted
Quick Change Toolpost Fitted
Leadscrew Covers Fitted
Coolant System
Tool Height To Suit
20mm
Distance Between Centres
1000mm
Swing Over Bed
356mm
Swing Over Cross-slide
220mm
Swing In Gap
506mm
Centre Height
178mm
Spindle Bore
38mm
Spindle Nose Size or Type
D1-4 Camlock
Bed Width
206mm
Headstock Spindle Taper
5MT
Tailstock Taper
3MT
Cross Slide Travel
180mm
Compound Slide Travel
100mm
Leadscrew
Metric
Cross Feed Range (X-Axis)
0.015~0.220mm/rev
Longitudinal Feed Range (Z-Axis)
0.043~0.653mm/rev
Metric Thread Steps & Pitch Range
48 (0.45-7.5mm)
Imperial Thread Steps & TPI Range
40 (4-112TPI)
3 Jaw Chuck Diameter
160mm
4 Jaw Chuck Diameter
200mm
Spindle Steps / Speed Range
16 (45-1800rpm)
Motor Power
2.4kW / 3.2hp
Voltage
415V
Weight (nett)
880kg
Features
  • 2 Axis digital readout system
  • Quick change toolpost with 4 holders
  • Concertina leadscrew cover
  • Gear drive headstock for quick change of spindle speeds
  • Cast iron stand increasing rigidity and reducing vibration
  • Precision 'V'-beds are hardened and ground, incorporating a rigid webbed casting
  • Low voltage work light
  • Foot operated spindle brake with safety cut out switch
  • Change gears for metric and imperial thread cutting
  • Oil sight glass for head stock and gearbox
  • Adjustable taper roller bearings support the spindle
  • Overload clutch mechanism on auto power feed
  • Micro-adjustable length-stop on bed-way for accurate repetitive operation
  • 3.2HP/415V motor 16-speed(45-1800rpm)
  • Inching button is incorporated on the control panel for convenient spindle speed selection
  • Enclosed quick action gearbox for thread cutting and auto feeding
  • Powered longitudinal and cross feeds
  • D1-4 camlock spindle for quick chuck changes and safe reverse-direction turning. ISO standard
  • Removable gap bed-way for larger diameter jobs
  • Dual calibrated dials (except for saddle handwheel)
  • Chuck & change gear guards are fitted with micro switches
  • Coolant system with flexible hose
  • Slide out swarf tray
Includes
  • 2 Axis digital readout system
  • Quick change toolpost with 4 holders
  • Concertina leadscrew cover
  • 160mm 3-jaw chuck with reverse jaws
  • 200mm 4-jaw chuck
  • Faceplate
  • Fixed Steady
  • Travelling Steady
  • Change gears
  • Dead centres
  • Thread-chasing dial
  • Work light
  • Cast iron stand
  • Foot brake
  • Rear splash guard & Swarf tray
  • Toolbox
  • Instruction booklet
