THIS PRODUCT IS NO LONGER AVAILABLE. Click to see recommended item > L564E (AL-356)
HAFCO METALMASTERAL-340G
Centre Lathe
  • 1 of 21
    L179G
  • 2 of 21
    2 Axis Digital Readout System
  • 3 of 21
    Chuck Guard with Micro Switch
  • 4 of 21
    Headstock
  • 5 of 21
    Headstock Controls 2
  • 6 of 21
    Spindle Speed Selection Levers
  • 7 of 21
    Feed Gearbox
  • 8 of 21
    Feed Gearbox
  • 9 of 21
    2 Speed Switch
  • 10 of 21
    Dial Chasing Gauge
  • 11 of 21
    Saddle Stop
  • 12 of 21
    Indicator Table
  • 13 of 21

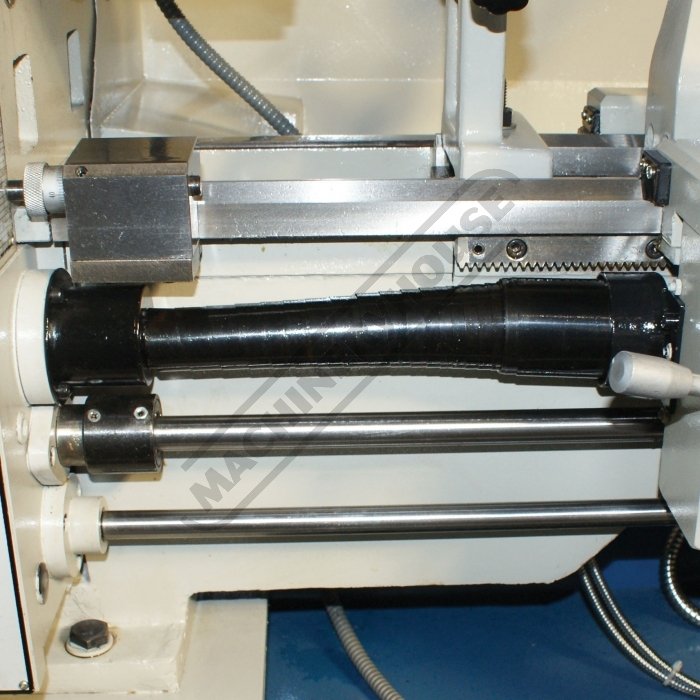

    Leadscrew Covers
  • 14 of 21
    Leadscrew Covers
  • 15 of 21
    Compound Slide
  • 16 of 21
    Quick Change Toolpost
  • 17 of 21
    Saddle Controls
  • 18 of 21
    Forward Reverse Engage Lever
  • 19 of 21
    Worklight and Coolant Nozzle
  • 20 of 21
    Foot Brake
  • 21 of 21
    Slide Out Drip and Swarf Tray
Order Code: L179G
AL-340G - Centre Lathe (415V)
356 x 500mm Turning Capacity - 39mm Bore
Includes Digital Readout & Quick Change Toolpost
HAFCO METALMASTER
ORDER CODE
L179G
MODEL
AL-340D
Swing Over Bed (mm)
356
Distance Between Centres (mm)
500
Spindle Bore (mm)
39
Swing In Gap (mm)
515
Swing Over Cross-slide (mm)
220
Digital Readout System Fitted
Quick Change Toolpost Fitted
Leadscrew Covers Fitted
Coolant System
Tool Height To Suit (mm)
16
Centre Height (mm)
178
Spindle Nose Size or Type
D1-4 Camlock
Bed Width (mm)
187
Headstock Spindle Taper (MT)
5
Tailstock Taper (MT)
3
Cross Slide Travel (mm)
160
Compound Slide Travel (mm)
68
Leadscrew Type
Metric
Metric Cross Feed (X-Axis) (mm/rev)
0.018 - 0.583
Metric Longitudinal Feed (Z-Axis) (mm/rev)
0.082 - 2.711
Metric Thread Steps & Pitch (No. / mm)
32 (0.4 - 7.0)
Imperial Thread Steps & TPI (No. / TPI)
32 (4 - 56)
3 Jaw Chuck Diameter (mm)
160
4 Jaw Chuck Diameter (mm)
200
Spindle Steps / Speeds (No. / rpm)
16 (35 - 2000)
Motor Power (kW / hp)
1.5 / 2
Voltage / Amperage (V / amp)
415
Nett Weight (kg)
595
Features
  • 2 Axis digital readout system
  • Quick change toolpost with 4 holders
  • Concertina leadscrew cover
  • Gear drive headstock for quick change of spindle speeds
  • Precision 'V'-beds are hardened and ground, incorporating a rigid webbed casting
  • Low voltage work light
  • Foot operated spindle brake with safety cut out switch
  • Change gears for metric and imperial thread cutting
  • Oil sight glass for head stock and gearbox
  • Adjustable taper roller bearings support the spindle
  • Micro-adjustable length-stop on bed-way for accurate repetitive operation
  • 2HP/415V motor 16-speed (35-2000rpm)
  • Inching button is incorporated on the control panel for convenient spindle speed selection
  • Enclosed quick action gearbox for thread cutting and auto feeding
  • Powered longitudinal and cross feeds
  • D1-4 camlock spindle for quick chuck changes and safe reverse direction turning. ISO standard
  • Removable gap bed-way for larger diameter jobs
  • Dual calibrated dials (except for saddle handwheel)
  • Chuck & change gear guards are fitted with micro switches
  • Coolant system with flexible hose
  • Slide out swarf tray
Includes
  • 2 Axis digital readout system
  • Concertina leadscrew cover
  • Quick change tool post with 4 holders
  • 3-jaw chuck with reverse jaws
  • 4-jaw chuck
  • Face plate
  • Fixed steady
  • Travelling steady
  • Change gears
  • Dead centres
  • Thread-chasing dial
  • Safety chuck guard
  • Work light
  • Stand
  • Foot brake
  • Rear splash guard & swarf tray
  • Tool box
  • Instruction booklet
