Centre Lathe
  • 1 of 32
  • 2 of 32
    Chuck Guard
  • 3 of 32
  • 4 of 32
    Headstock Controls
  • 5 of 32
    Spindle Speed Selection Levers
  • 6 of 32
    2 Speed Switch
  • 7 of 32
    Feed Gearbox
  • 8 of 32
    Feed Gearbox
  • 9 of 32
    Saddle Left View
  • 10 of 32
  • 11 of 32
    Compound Slide
  • 12 of 32
    Compund Slide Angle Graduations
  • 13 of 32
  • 14 of 32
    Thread Chasing Dial
  • 15 of 32
    Forward Reverse Engagement Lever
  • 16 of 32
    Leadscrew Hand Wheel
  • 17 of 32
    Cross Slide Hand Wheel
  • 18 of 32
    Compound Slide Hand Wheel
  • 19 of 32
    Leadscrew Covers
  • 20 of 32
    Leadscrew Covers Right Side
  • 21 of 32
    Coolant Nozzle and Work Light
  • 22 of 32
    3 Point Steady
  • 23 of 32
    2 Point Steady
  • 24 of 32
    Saddle Stop
  • 25 of 32
    Indicator Table
  • 26 of 32
  • 27 of 32
    Tailstock Quill
  • 28 of 32
    Tailstock Hand Wheel
  • 29 of 32
    Foot Brake
  • 30 of 32
    Slide Out Drip and Swarf Tray
  • 31 of 32
  • 32 of 32
    Induction Hardened Bedways
Order Code: L179E

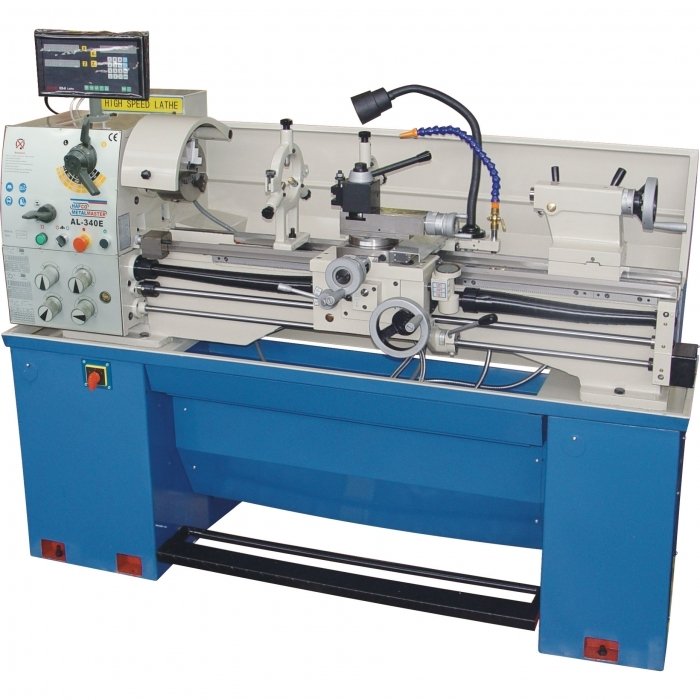

AL-340D - Centre Lathe (415V)
356 x 1000mm Turning Capacity - 39mm Bore
Includes Digital Readout & Quick Change Toolpost
Digital Readout System Fitted
Quick Change Toolpost Fitted
Leadscrew Covers Fitted
Coolant System
Tool Height To Suit
Distance Between Centres
Swing Over Bed
Swing Over Cross-slide
Swing In Gap
Centre Height
Spindle Bore
Spindle Nose Size or Type
D1-4 Camlock
Bed Width
Headstock Spindle Taper
Tailstock Taper
Cross Slide Travel
Compound Slide Travel
Cross Feed Range (X-Axis)
Longitudinal Feed Range (Z-Axis)
Metric Thread Steps & Pitch Range
32 (0.4-7.0mm)
Imperial Thread Steps & TPI Range
32 (4-56TPI)
3 Jaw Chuck Diameter
4 Jaw Chuck Diameter
Spindle Steps / Speed Range
16 (35-2000rpm)
Motor Power
1.5kW / 2hp
Weight (nett)
  • 2 Axis digital readout system
  • Quick change tool-post with 4 holders
  • Concertina leadscrew cover
  • Gear drive headstock for quick change of spindle speeds
  • Precision 'V'-beds are hardened and ground, incorporating a rigid webbed casting
  • Low voltage work light
  • Foot operated spindle brake with safety cut out switch
  • Change gears for metric and imperial thread cutting
  • Oil sight glass for head stock and gearbox
  • Adjustable taper roller bearings support the spindle
  • Micro-adjustable length-stop on bed-way for accurate repetitive operation
  • 2HP/415V motor 16-speed (35-2000rpm)
  • Inching button is incorporated on the control panel for convenient spindle speed selection
  • Enclosed quick action gearbox for thread cutting and auto feeding
  • Powered longitudinal and cross feeds
  • D1-4 camlock spindle for quick chuck changes and safe reverse direction turning. ISO standard
  • Removable gap bed-way for larger diameter jobs
  • Dual calibrated feed dials
  • Chuck & change gear guards are fitted with micro switches
  • Coolant system with flexible hose
  • Slide out swarf tray
  • 2 Axis digital readout system
  • Concertina leadscrew cover
  • Quick change tool-post with 4 holders
  • 3-jaw chuck with reverse jaws
  • 4-jaw chuck
  • Face plate
  • Fixed steady
  • Travelling steady
  • Change gears
  • Dead centres
  • Thread-chasing dial
  • Safety chuck guard
  • Work light
  • Stand
  • Foot brake
  • Rear splash guard & swarf tray
  • Tool box
  • Instruction booklet
