THIS PRODUCT IS NO LONGER AVAILABLE. Click to see recommended item > L564E (AL-356)
Centre Lathe
  • 1 of 31
  • 2 of 31
    Safety Chuck Guard
  • 3 of 31
  • 4 of 31
    Headstock Controls
  • 5 of 31
    Spindle Speed Selectors
  • 6 of 31
    Feed Gearbox
  • 7 of 31
    Feed Gearbox
  • 8 of 31
    Saddle Left View
  • 9 of 31
  • 10 of 31
    Compound Slide
  • 11 of 31
    Compund Slide Angle Graduations
  • 12 of 31
  • 13 of 31
    Thread Chasing Dial
  • 14 of 31
    Forward Reverse Engagement Lever
  • 15 of 31
    Leadscrew Hand Wheel
  • 16 of 31
    Cross Slide Hand Wheel
  • 17 of 31
    Compound Slide Hand Wheel
  • 18 of 31
    Leadscrew Covers
  • 19 of 31
    Leadscrew Covers Right Side
  • 20 of 31
    Coolant Nozzle and Work Light
  • 21 of 31
    3 Point Steady
  • 22 of 31
    2 Point Steady
  • 23 of 31
    Saddle Stop
  • 24 of 31
    Indicator Table
  • 25 of 31
  • 26 of 31
    Tailstock Quill
  • 27 of 31
    Tailstock Hand Wheel
  • 28 of 31
  • 29 of 31
    Induction Hardened Bedways
  • 30 of 31
    Foot Brake
  • 31 of 31
    Slide Out Drip and Swarf Tray
Order Code: L179D

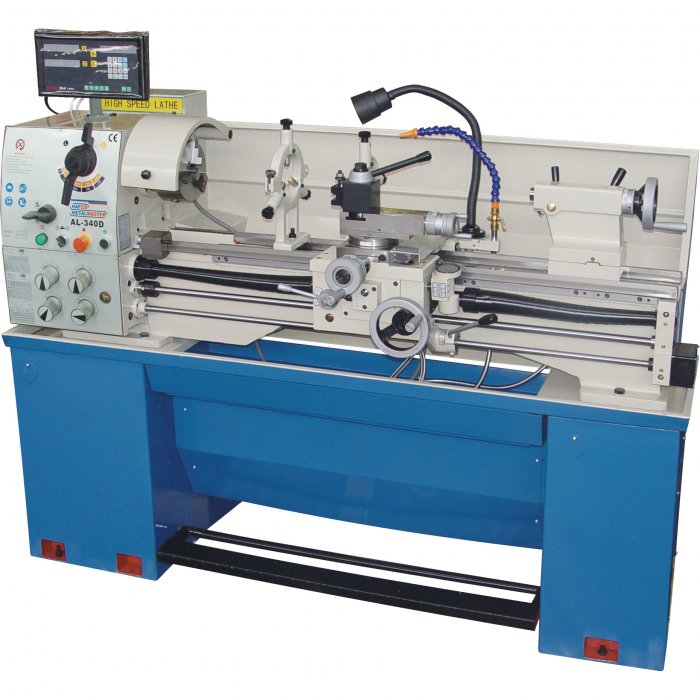

AL-340D - Centre Lathe (240V)
356 x 1000mm Turning Capacity - 39mm Bore
Includes Digital Readout & Quick Change Toolpost
Swing Over Bed
Distance Between Centres
Spindle Bore
Swing In Gap
Swing Over Cross-slide
Digital Readout System Fitted
Quick Change Toolpost Fitted
Leadscrew Covers Fitted
Coolant System
Tool Height To Suit
Centre Height
Spindle Nose Size or Type
D1-4 Camlock
Bed Width
Headstock Spindle Taper
Tailstock Taper
Cross Slide Travel
Compound Slide Travel
Cross Feed Range (X-Axis)
Longitudinal Feed Range (Z-Axis)
Metric Thread Steps & Pitch Range
32 (0.4-7.0mm)
Imperial Thread Steps & TPI Range
32 (4-56TPI)
3 Jaw Chuck Diameter
4 Jaw Chuck Diameter
Spindle Steps / Speed Range
8 (70-2000rpm)
Motor Power
1.5kW / 2hp
Weight (nett)
  • 2 Axis digital readout system
  • Quick change tool-post with 4 holders
  • Concertina leadscrew cover
  • Gear drive headstock for quick change of spindle speeds
  • Precision 'V'-beds are hardened and ground, incorporating a rigid webbed casting
  • Low voltage work light
  • Foot operated spindle brake with safety cut out switch
  • Change gears for metric and imperial thread cutting
  • Oil sight glass for head stock and gearbox
  • Adjustable taper roller bearings support the spindle
  • Micro-adjustable length-stop on bed-way for accurate repetitive operation
  • 2HP/240V motor 8-speed (70-2000rpm)
  • Inching button is incorporated on the control panel for convenient spindle speed selection
  • Enclosed quick action gearbox for thread cutting and auto feeding
  • Powered longitudinal and cross feeds
  • D1-4 camlock spindle for quick chuck changes and safe reverse direction turning. ISO standard
  • Removable gap bed-way for larger diameter jobs
  • Dual calibrated feed dials
  • Chuck & change gear guards are fitted with micro switches
  • Coolant system with flexible hose
  • Slide out swarf tray
  • 2 Axis digital readout system
  • Concertina leadscrew cover
  • Quick change tool-post with 4 holders
  • 3-jaw chuck with reverse jaws
  • 4-jaw chuck
  • Face plate
  • Fixed steady
  • Travelling steady
  • Change gears
  • Dead centres
  • Thread-chasing dial
  • Safety chuck guard
  • Work light
  • Stand
  • Foot brake
  • Rear splash guard & swarf tray
  • Tool box
  • Instruction booklet
Product Brochure
Instruction Manual
1.44 MB
Spare Parts Ordering
To assist you in ordering your spare part quicker than ever before, we have listed our most common spare parts to suit our Hafco Machinery for purchase online. Just choose between the 2 options outlined below, to find exactly what you are looking for. If you need further assistance please contact us.
Option 1
Browse through the "Common Spare Parts" tab below . Once you have identified your part, you can add it to your cart by clicking on the "+ ADD TO CART" button. If you wish to add multiples of this part you can either click the "+ ADD TO CART" button as many times as you like or click on the "VIEW CART" button and change the order quantity, prior to completing your order.
Option 2
If your part is NOT listed in the "Common Spare Parts" tab below , click the "MORE INFO" button to complete the "Spare Parts Enquiry Form".
This will provide you with the option to email your spare part enquiry direct to our Spare Parts and Service Department, or if you wish, you can download a printable version of this enquiry form which will include a copy of the Parts List to suit this machine (if available). Further instructions for the return email address or fax number of this printable form is provided on the document for your convenience.
NOTE: Please remember to clearly identify your part on the included parts diagram if necessary so that we can respond as quickly as possible with a price and availability for the part(s) you require.
Parts List
1008.05 KB
