TOOLMASTERPCKNR-2525-K12
Right Hand Turning Tool Holder
  • 1 of 4
    L0507
  • 2 of 4
    Tool Holder
  • 3 of 4
    Side View
  • 4 of 4
    Top View
Order Code: L0507
PCKNR-2525-K12 - Right Hand Turning Tool Holder
25mm Tool Height
Insert tip not included
Only Available From: Sydney, Melbourne, Brisbane
Additional Freight Charges May Apply
TOOLMASTER
On Special - While Stocks Last
ex GST
inc GST
$90.00
$99.00
$65.00
$71.50

ORDER CODE
L0507
Size
25mm
Hand
Right
Style
PCKNR

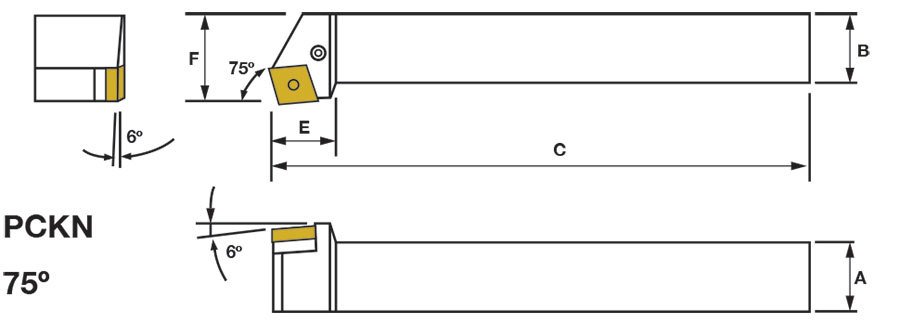

A
25mm
B
25mm
C
150mm
E
26mm
F
32mm
Description
Quality Tipped Tool Holders ISO Standard to suit Tungsten Carbide Indexable Insert Tips.

NOTE: Inserts not included with tool holders

Use insert CNMG 120408 (L0602)
Features
  • Negative rake turning tool holder with 75º approach angle and suitable for rapid metal removal
  • Works in partnership with the 95º approach tool holders. These tools allow the other four cutting edges of the insert to be utilised.
  • Right hand tool holder suitable for turning towards the chuck
