Right Hand Boring Bar - A32T-PCLNR-12
Ø32mm
Insert tip not included
L0263
1 of 3

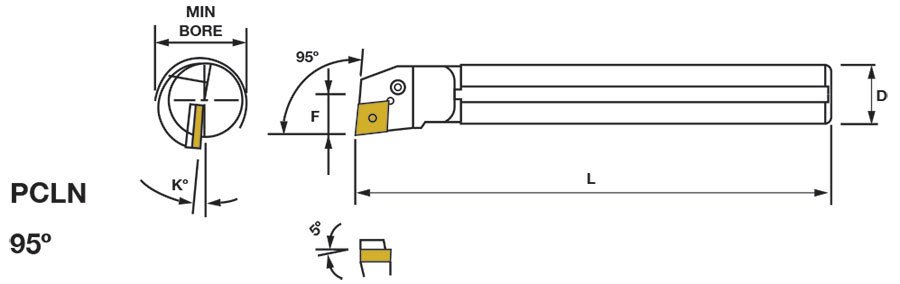

Top View
2 of 3
Side View
3 of 3
Discontinued
Order Code: L0263
Made in Taiwan
Description
Right Hand Boring Bar - A32T-PCLNR-12
Ø32mm
Insert tip not included
Overview
Negative rake boring bar for Heavy duty roughing with 95 degree approx angle. Roughing tool for large metal removal when boring large bores.
Through coolant supplies coolant directly to the insert to cool and washout the swarf
NOTE: Inserts NOT included with tool holders.
Use insert CNMG 120408 (L0602)
Through coolant supplies coolant directly to the insert to cool and washout the swarf
NOTE: Inserts NOT included with tool holders.
Use insert CNMG 120408 (L0602)
Features
- Positive rake turning tool holder with 90º approach angle
- Suitable for rapid metal removal
Compare Product Range
Specifications
| ORDER CODE | L0263 |
|---|---|
| (mm)Size | 32 |
| Hand Type | RIGHT |
| (mm)B = Minimum Bore | 40 |
| (mm)D | 32 |
| (mm)F | 22 |
| (mm)L | 250 |
| (deg)K | 11º |
| (mm)Minimum Bore | 40 |
On Sale
Discontinued
Back In Stock Soon
Discontinued
Discontinued
Discontinued
On Sale
On Sale
On Sale
On Sale
On Sale
On Sale
On Sale
On Sale
On Sale
On Sale
On Sale
On Sale
On Sale
On Sale
On Sale
On Sale
On Sale
On Sale
On Sale
- Compare:
- Wishlist:
- ORDER CODE
- Part Number - Style
- (mm)Size
- Hand Type
- (mm)B = Minimum Bore
- (mm)D
- (mm)F
- (mm)L
- (deg)K
- (mm)Minimum Bore
- (ex-gst)Pricing
- (inc-gst)
- On Sale
-
Compare
-
Wishlist
- L020
- SCLC
- 8
- RIGHT
- 10
- 8
- 5
- 125
- 13º
- 10
- $50.91
- $56.00
- ADD TO CART
- On Sale
-
Compare
-
Wishlist
- L0201
- SCLC
- 10
- RIGHT
- 12
- 10
- 6
- 125
- 12º
- 12
- $50.91
- $56.00
- ADD TO CART
- On Sale
-
Compare
-
Wishlist
- L021
- STFC
- 12
- RIGHT
- 16
- 12
- 9
- 150
- 10º
- 15
- $50.91
- $56.00
- ADD TO CART
- On Sale
-
Compare
-
Wishlist
- L022
- STFC
- 16
- RIGHT
- 20
- 16
- 11
- 180
- 6º
- 19
- $54.55
- $60.00
- ADD TO CART
- On Sale
-
Compare
-
Wishlist
- L023
- STFC
- 20
- RIGHT
- 25
- 20
- 13
- 250
- 3º
- 23
- $63.64
- $70.00
- ADD TO CART
- On Sale
-
Compare
-
Wishlist
- L415
- MWLN
- 20
- RIGHT
- 25
- 20
- 13
- 250
- 17º
- 23
- $110.00
- $121.00
- ADD TO CART
- On Sale
-
Compare
-
Wishlist
- L0235
- MTUN
- 20
- RIGHT
- 25
- 20
- 13
- 300
- 17º
- 25.5
- $109.09
- $120.00
- ADD TO CART
- On Sale
-
Compare
-
Wishlist
- L416
- MWLN
- 25
- RIGHT
- 32
- 25
- 17
- 300
- 14º
- 29.5
- $127.27
- $140.00
- ADD TO CART
- On Sale
-
Compare
-
Wishlist
- L024
- MTUN
- 25
- RIGHT
- 32
- 25
- 17
- 300
- 12º
- 29.5
- $127.27
- $140.00
- ADD TO CART
- On Sale
-
Compare
-
Wishlist
- L417
- MWLN
- 32
- RIGHT
- 40
- 32
- 22
- 300
- 14º
- 38
- $151.82
- $167.00
- ADD TO CART
