AC/DC 200 INVERTER TIG/ARC WELDER
  • 1 of 1
    K8778
Order Code: K8778
QLD Schools / TAFE - AC/DC 200 INVERTER TIG/ARC WELDER (240V)
10-185A
QLD Contract Item No.26
UNIMIG
ORDER CODE
K8778
QLD Contract No.
QLD Item No.26
Model
QLD Schools / TAFE

UNITIG 200 AC/DC
Primary Input Voltage (-15% +10%)
240V - 15 amp
Rated Duty Cycle In 10 Min (TIG) 40ºc
20% @ 185 Amps
Rated Duty Cycle In 10 Min (Stick) 40ºc
20% @ 170 Amps
Rated Output Current
10 - 200 Amps
Weldable Stick Electrode
5mm
Hot Start
Anti Sticking
Arc Force
TIG Ignition
High Frequency
Dimensions
510 x 330 x 360mm
Weight
30kg
Description
We for many years have been working in close consultation with education departments to ensure the most suitable equipment is provided to our schools and TAFE, not only does it comply with the departments stringent safety requirements but is built to last the distance. That's why we consider our company to be a specialist when it comes to supplying quality Wood Work and Metal Working Machinery for Public or Private Schools, TAFE Colleges and Trade Training Centres in all states of Australia.

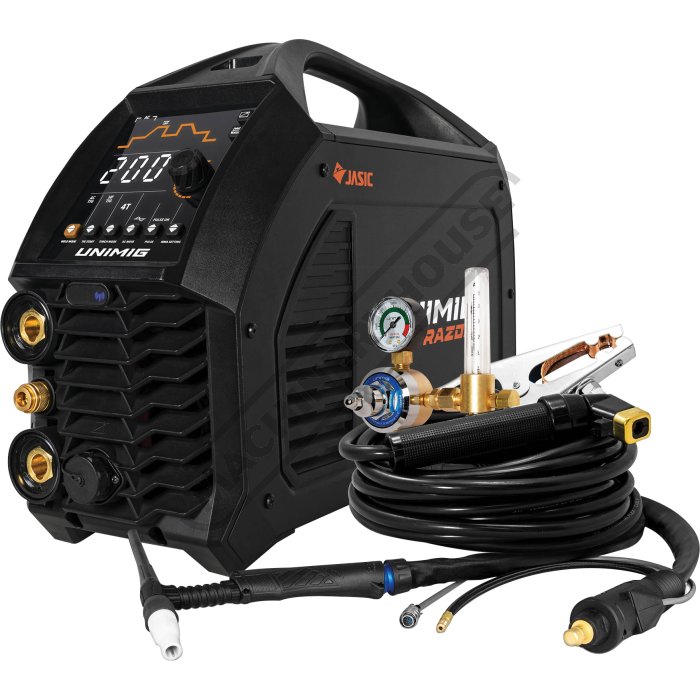

The Uni-Tig 200AC/DC is a 240V square wave AC/DC TIG inverter welder incorporating full TIG functionality including AC balance control, pre gas, down slope, post gas, variable pulse parameters, HF start with 2/4T trigger control.

The HF arc start provides easy arc ignition leaving no tungsten inclusion and no contamination of the tungsten electrode.

The Down Slope and Post Gas combined with the 2/4T trigger function gives you control of the welder allowing you to control the start and finish of the weld process at a professional level. The addition of a fully adjustable pulse function of frequency, base current and pulse width gives you the added capability to better control heat input into the work, control penetration & control distortion.

AC balance control lets you set the AC TIG arc for cleaning of the oxide layer on aluminium and adjustment for a deeper penetrating weld. Combining the functions of the Uni-Tig 200P AC/DC ensures comprehensive control of the welding parameters when welding both AC and DC weldable materials giving you the ability to produce professional Tig welds.

The DC MMA welding capability delivers a smooth and stable arc allowing easy welding with electrodes obtaining high quality welds including cast Iron, stainless and low hydrogen. Addition of the optional Foot Control provides variable amperage adjustment.

The Uni-Tig 200P AC/DC has set the benchmark for 240V single phase AC/DC welders and made it ideal for multiple applications; aluminium & stainless steel fabrication, light industrial use, repair and maintenance applications.

Robust & reliable, built to our specification and manufactured in compliance to AS/NZ60974.1
Features
  • Adjustable amperage control on torch
  • Adjustable Down slope
  • 2T / 4T Trigger function
  • Adjustable pulse control
  • HF Start AC/DC TIG function
  • Digital amperage display
  • Adjustable Pre Gas - Post gas
  • Adjustable AC balance control
  • Electrode Hot start
  • Adjustable Arc force
Includes
  • SR26-4M TIG Torch
  • Argon Regulator
  • Earth Lead
  • 200 AC/DC Machine
Optional Accessories
  • Foot Control (W174A)
  • Stand (W174B)
Product Brochure

AC_DC200 Manual
1.07 MB
