TECNAQLD Schools / TAFE

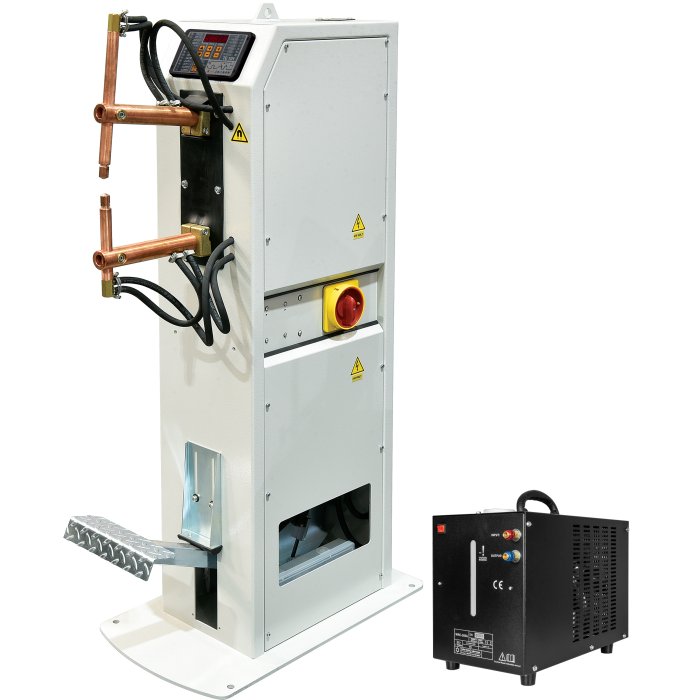

TECNA 4643-25 Pedestal Spot Welder & Water Cooling Unit
  • 1 of 3
    K8721
  • 2 of 3
    TE 101 Controller
  • 3 of 3
    Water Cooling Unit
Order Code: K8721
QLD Schools / TAFE - TECNA 4643-25 Pedestal Spot Welder & Water Cooling Unit (415V)
25 kVA
QLD Contract Item No. 7
TECNA
ORDER CODE
K8722
QLD Contract No.
QLD Item No. 7
Model
School / TAFE

TECNA-4643-25
Part Number
4643-25
Type
Manual
Main Power Supply
415V 3 Phase
Nominal Power
50% @ 25kVA
Max. Welding Power
62kVA
Secondary No Load Voltage
4.6V
Main Fuse
50 Amp
Min-Max Throat Depth
230-550mm
Arms Gap
220mm
Maximum Thickness
3 + 3mm
Weight (nett)
128kg
Description
We for many years have been working in close consultation with education departments to ensure the most suitable equipment is provided to our schools and TAFE, not only does it comply with the departments stringent safety requirements but is built to last the distance. That's why we consider our company to be a specialist when it comes to supplying quality Wood Work and Metal Working Machinery for Public or Private Schools, TAFE Colleges and Trade Training Centres in all states of Australia.
Features
  • 25kVA, 4643-25 - Pedestal Spot Welder:
  • Arms adjustable in length allowing a better working flexibility
  • Chrome-copper electrode-holders for long life and heavy duty service, designed for straight and angled fitting
  • Adjustable electrode stroke
  • Epoxy resin coated transformer
  • Water-cooled transformer, arms and electrodes
  • Microprocessor control unit TECNA TE101
  • Adjustable electrode force; a micro switch starts the welding cycle when the desired pre-set value is reached
  • The foot pedal is adjustable in length

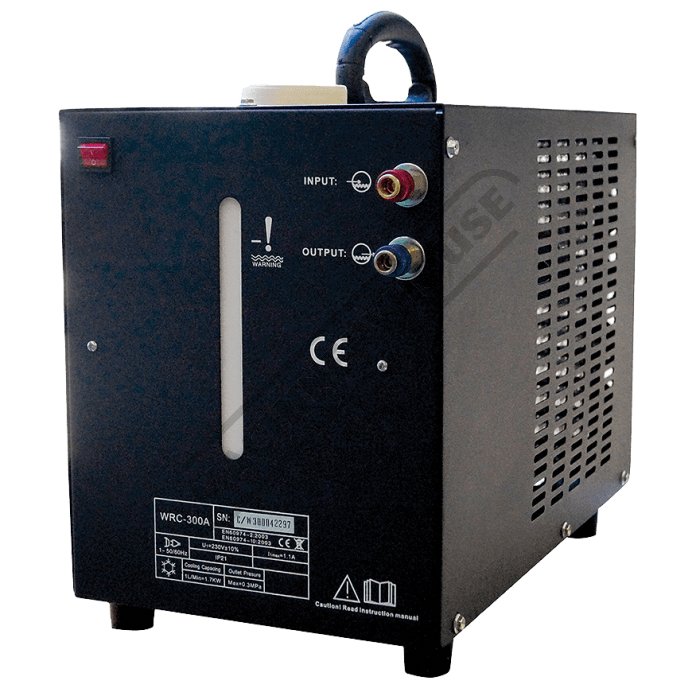

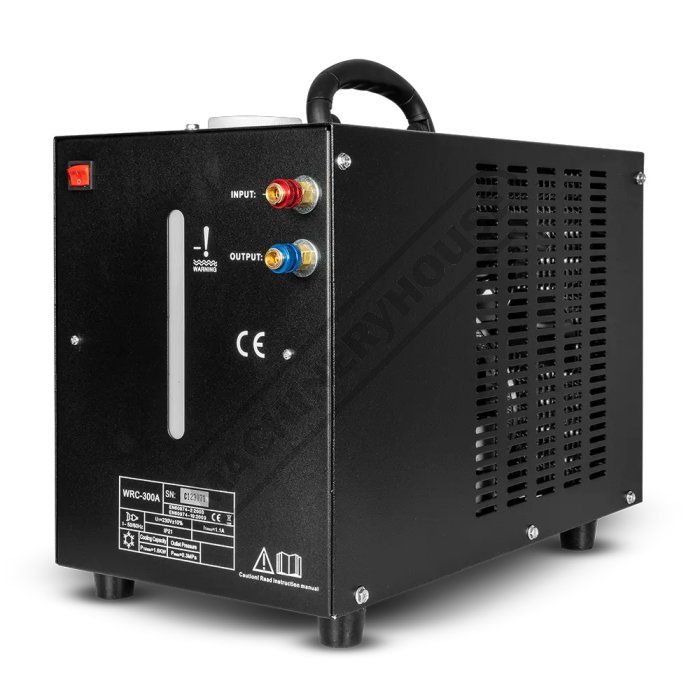

  • UTJRWC-1 8 Litre Water Cooling Unit:
  • This universal water cooler removes heat from your TIG welder torch and can be used with any welder that incorporates water cooling
  • Stainless steel pump and shafts, corrosion free
  • Heat resistant motor improves cooling
  • No priming required, quick fill in & drain out
  • Universal and can be used with any welder
  • Carry handle for portability and convenience
  • Water level gauge on front of unit
  • Ø200mm fan on steel tube radiator
  • Design to recycled water back into cooler unit
  • Uses ordinary tap water but better with distilled
Includes
  • 25kVA, 4643-25 - Pedestal Spot Welder (415V)
  • UTJRWC-1 8 Litre Water Cooling Unit
