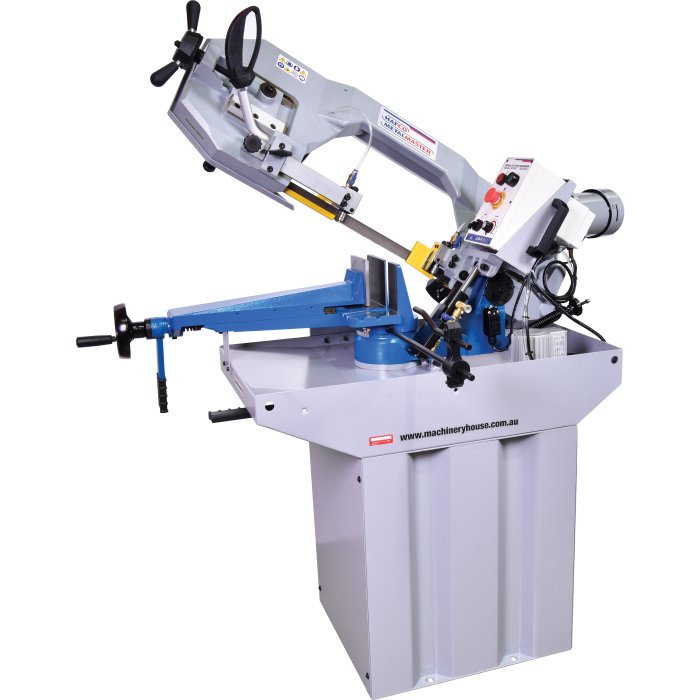

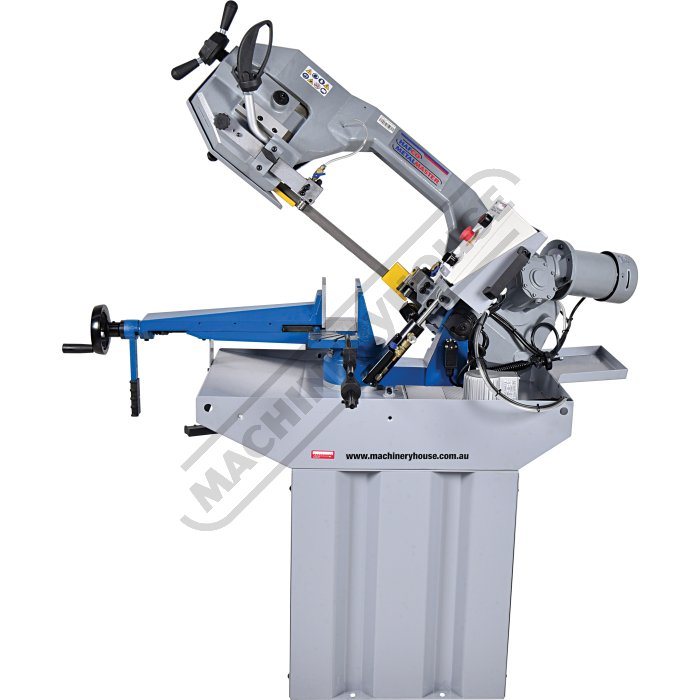

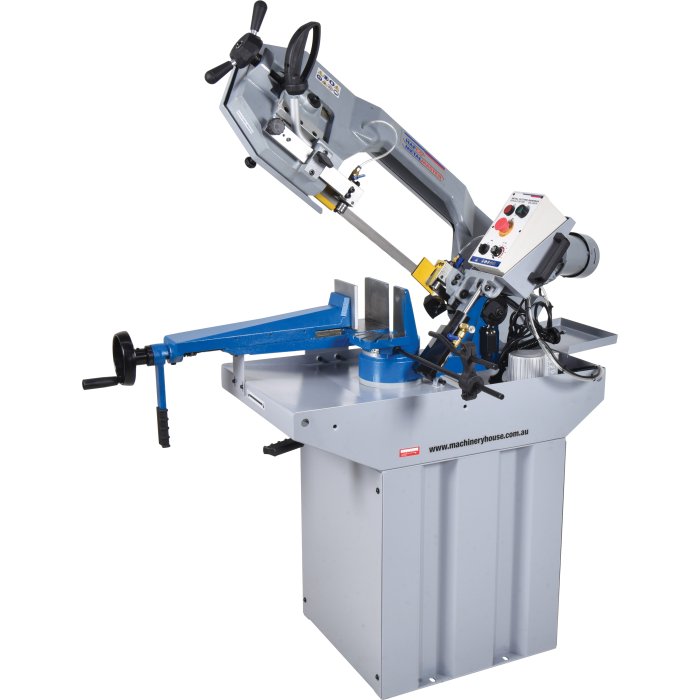

BS-7DS Swivel Head Band Saw - Belt Drive
  • 1 of 10
  • 2 of 10

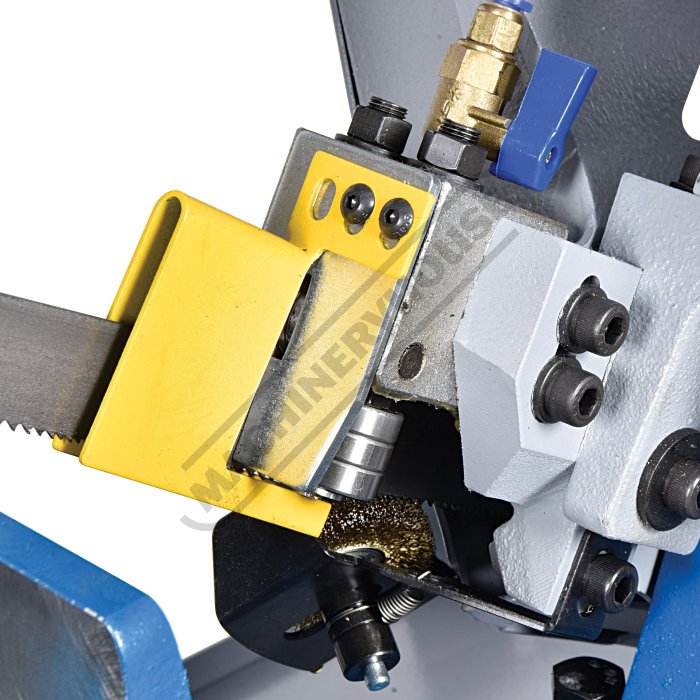

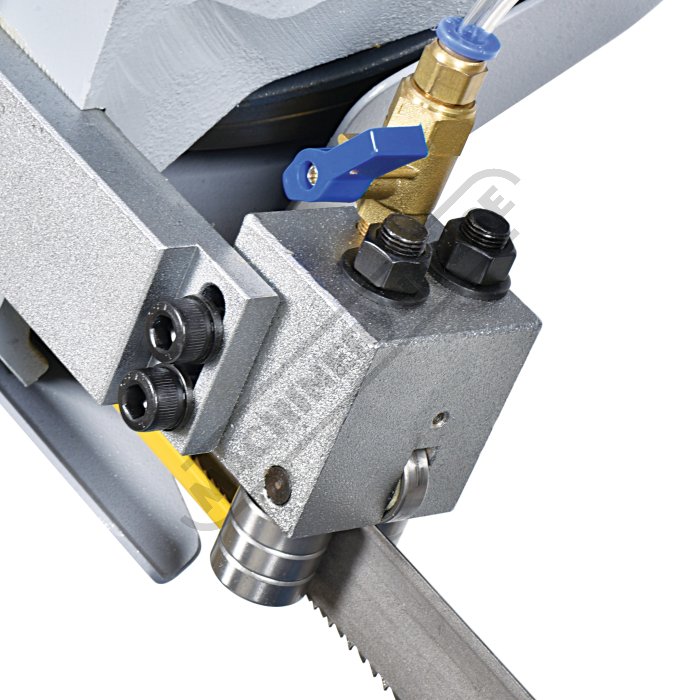

    Blade Guide
  • 3 of 10
    Coolant to Blades
  • 4 of 10

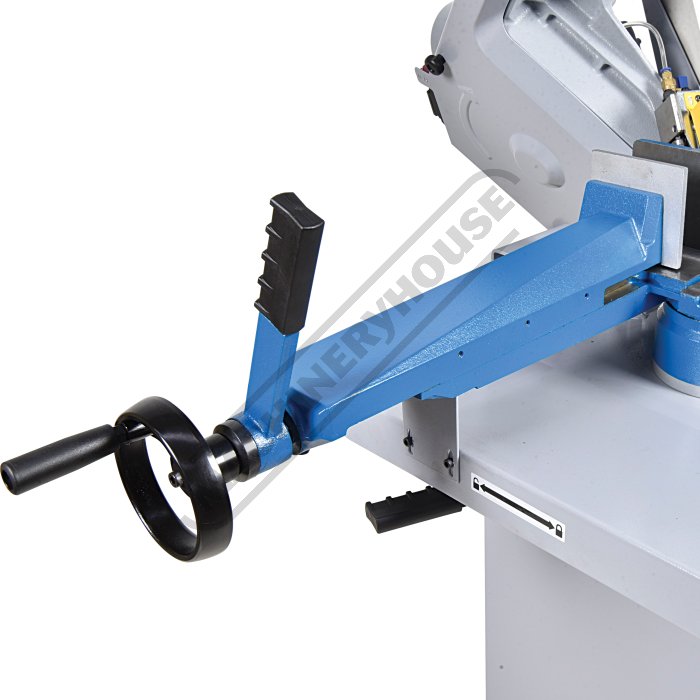

    Quick Action Vice Handle Lever
  • 5 of 10

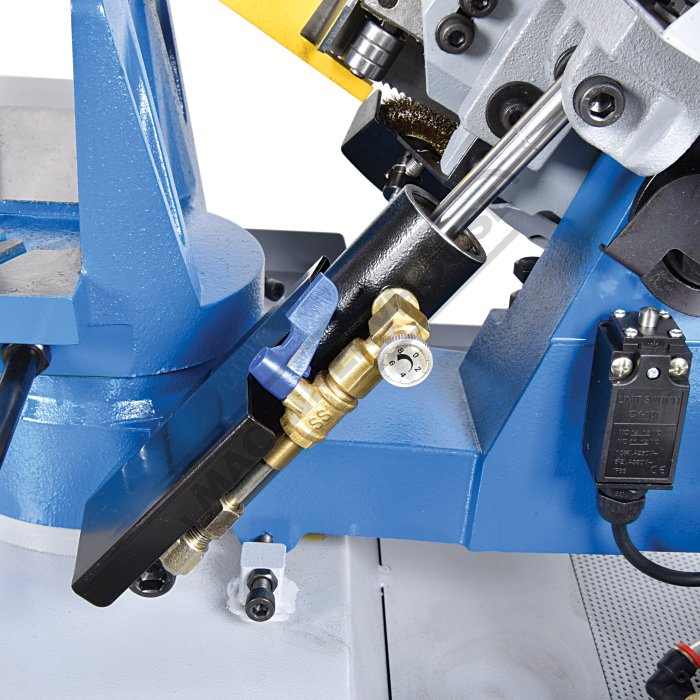

    Hydraulic Ram Down Feed Control
  • 6 of 10
    Down Feed Control
  • 7 of 10
    Speed Chart
  • 8 of 10

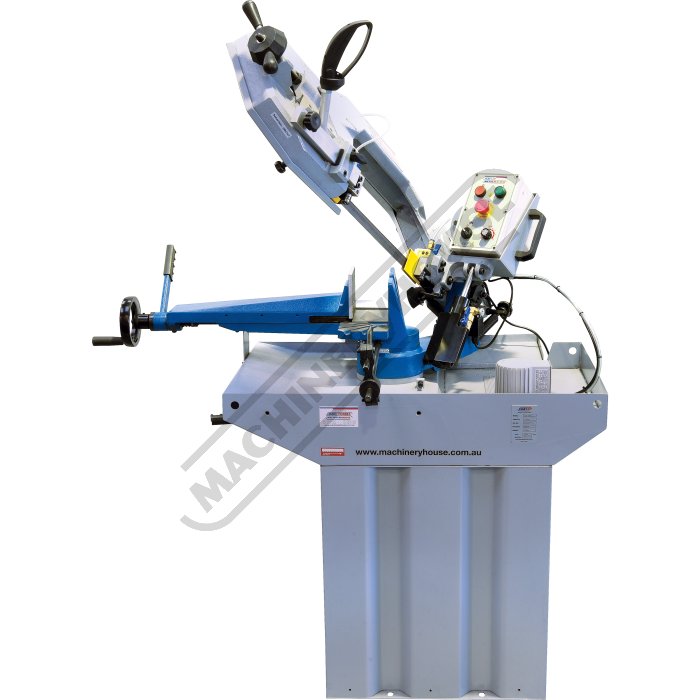

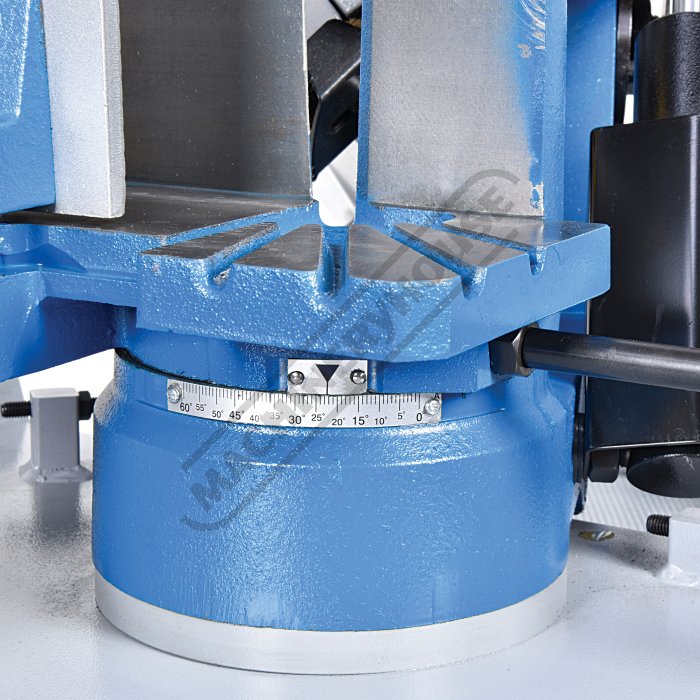

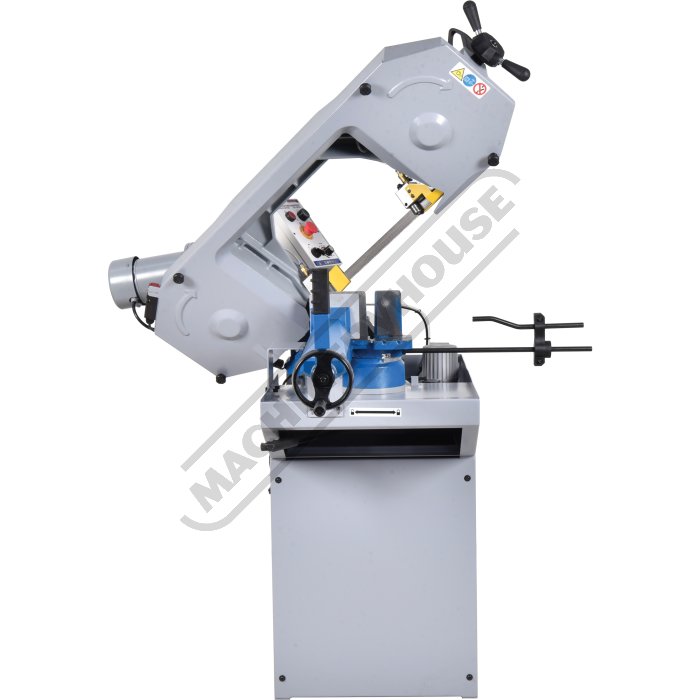

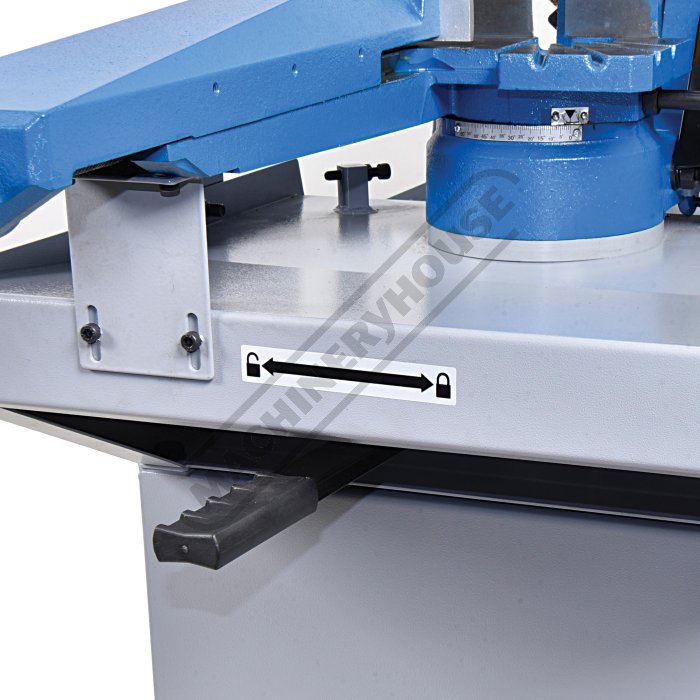

    Swivel Head
  • 9 of 10

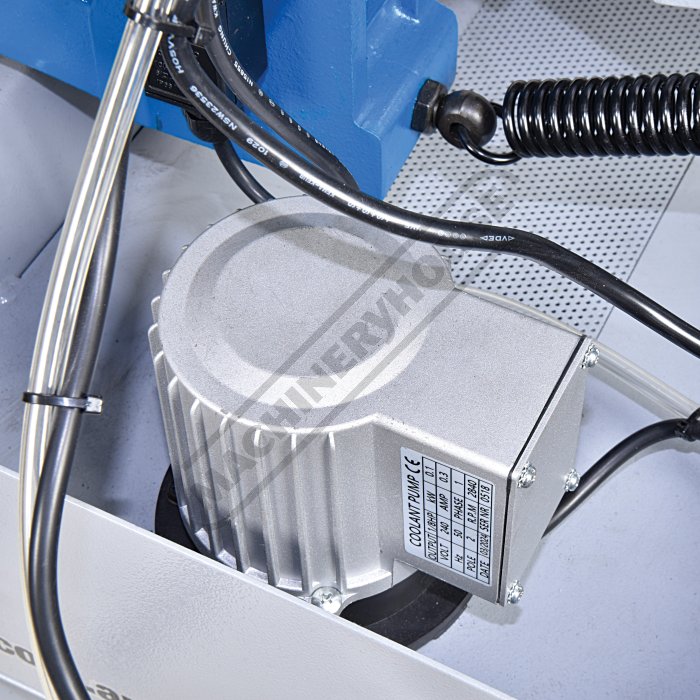

    Coolant System
  • 10 of 10
Order Code: K8718
QLD Schools / TAFE - BS-7DS Swivel Head Band Saw - Belt Drive (240V)
215 x 178mm (W x H) Rectangle
QLD Contract Item No. 5.1
QLD Contract No.
QLD Item No. 5.1
School / TAFE BS-7DS
Operation Type
Swivel Head
Round Capacity 90º
Round Capacity 45º
Square Capacity 90º
Square Capacity 45º
Rectangle Capacity 90º
215 x 178mm
Rectangle Capacity 45º
140 x 85mm
24-41-61-82 M/min
Blade Size
2362 x 19 x 0.8mm
Motor Power
0.75kW / 1hp
Weight (nett)
We for many years have been working in close consultation with education departments to ensure the most suitable equipment is provided to our schools and TAFE, not only does it comply with the departments stringent safety requirements but is built to last the distance. That's why we consider our company to be a specialist when it comes to supplying quality Wood Work and Metal Working Machinery for Public or Private Schools, TAFE Colleges and Trade Training Centres in all states of Australia.

The BS-7DS medium duty swivel head metal cutting band saw has many features on offer with a double mitre swivel head capable of cutting up to 178mm diameter or 215 x 178mm in steel at 90º . There is a choice of four blade speeds via an adjustable 4 stage pulley system so that the cutting speed can be changed to suit a wide range of materials, whilst the built-in coolant system ensures maximum cutting efficiency and long blade life.

The cutting operation works automatically with the weight of the head providing the cutting force and a limit switch shutting the machine down when the cut is complete. The weight of the head is counterbalanced by an adjustable hydraulic damper to control the feed rate, an excellent machine choice for maintenance shops, medium steel fabrications, and engineering workshops.
  • 215 x 178mm (W x H) rectangular capacity

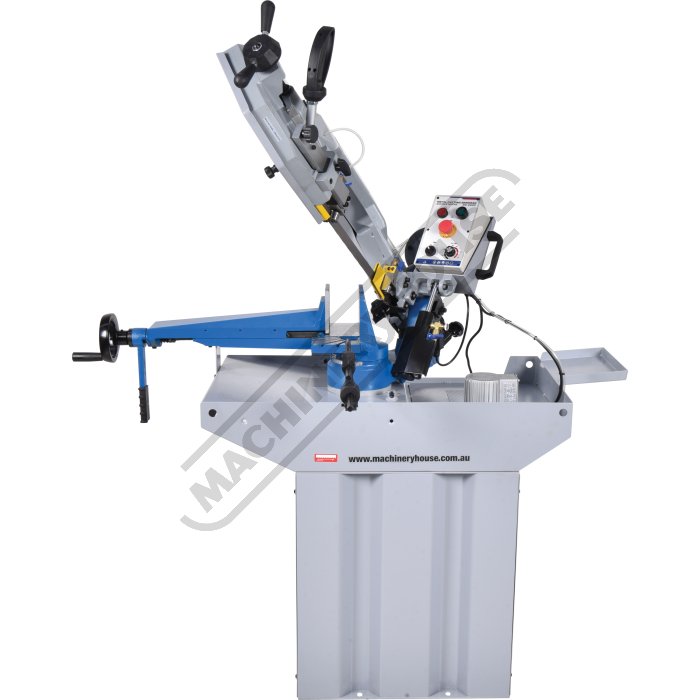

  • ±45º swivel head for easy angle cutting without moving material
  • Adjustable hydraulic feed cutting rate for multiple applications
  • Dual mitre cutting capabilities to 45º via swivelling head and sliding vice
  • Built-in coolant system for maximum cutting efficiency

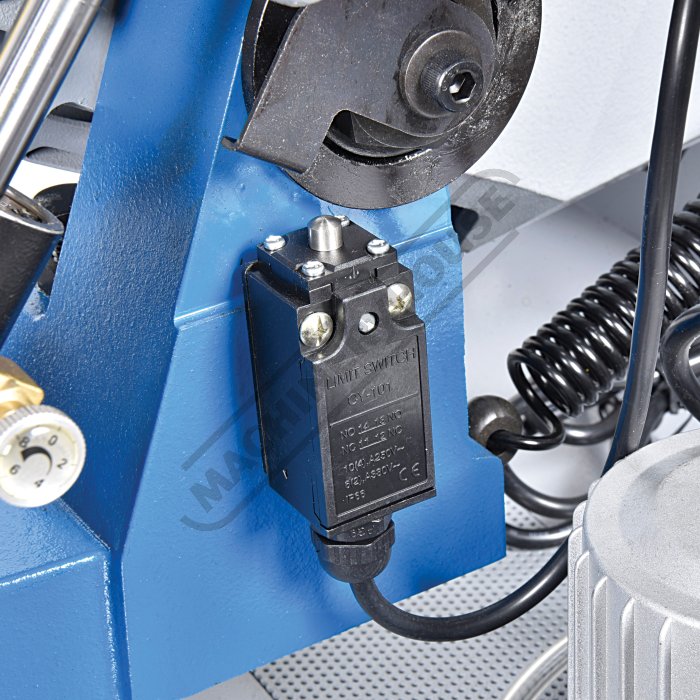

  • Limit switch stops machine when cut is complete
  • Coolant system with flow control valve

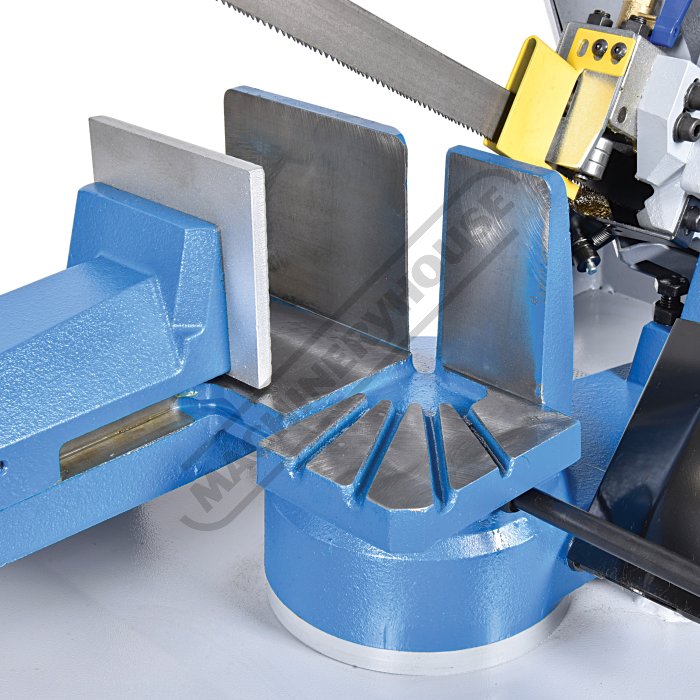

  • Quick action material clamping lever
  • Adjustable blade roller guides provides accurate cutting
  • Adjustable 4-speed pulley drive system enabling 24-41-61-82mpm cutting speeds

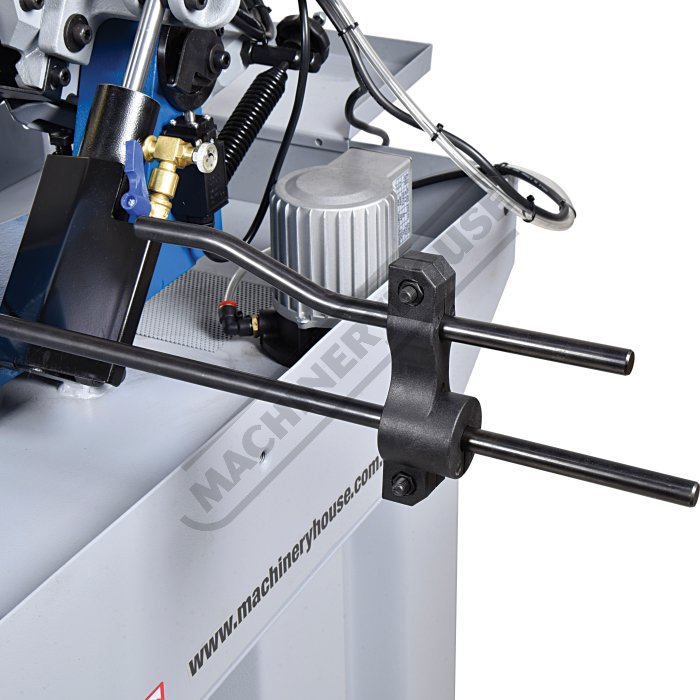

  • Adjustable length stop for repetition cutting

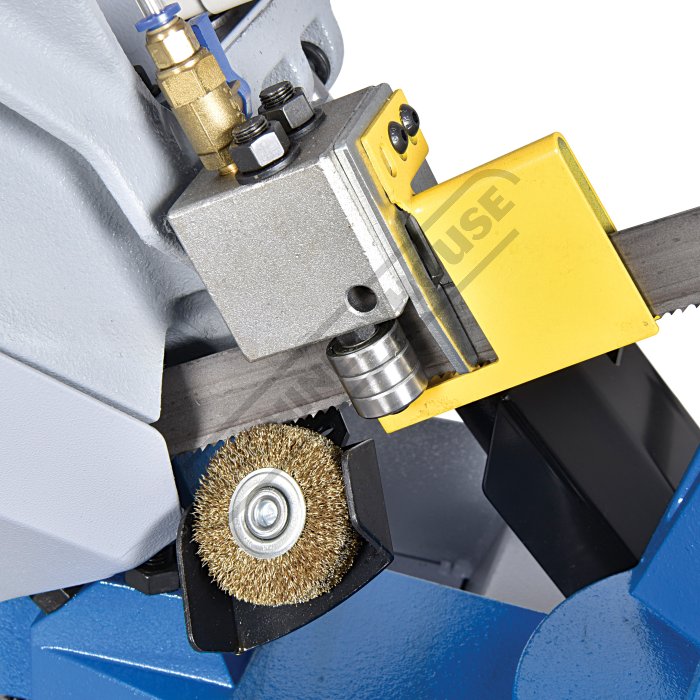

  • Wire wheel brush to clean swarf from blade
  • Vertical cutting table included

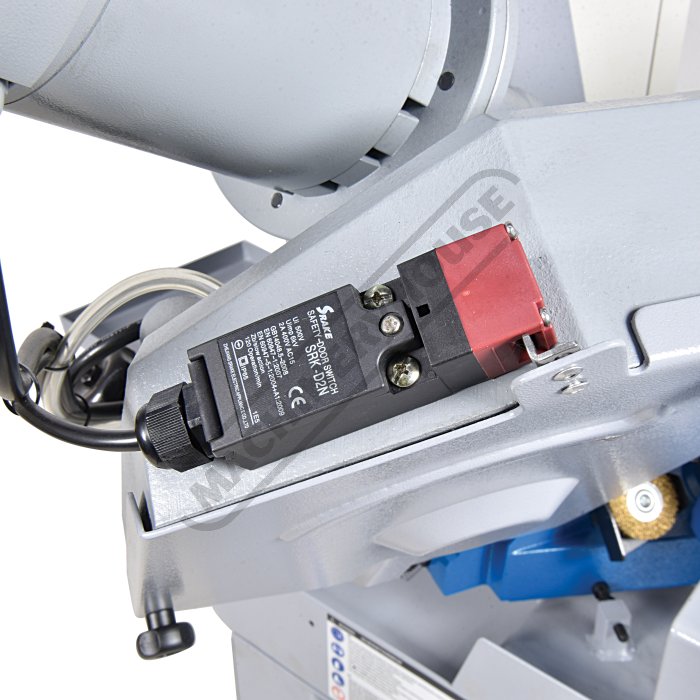

  • Automatic electric cut-out switch
  • Heavy-duty 750W/240V fully enclosed fan-cooled motor
