HAFCO METALMASTERQLD Schools / TAFE

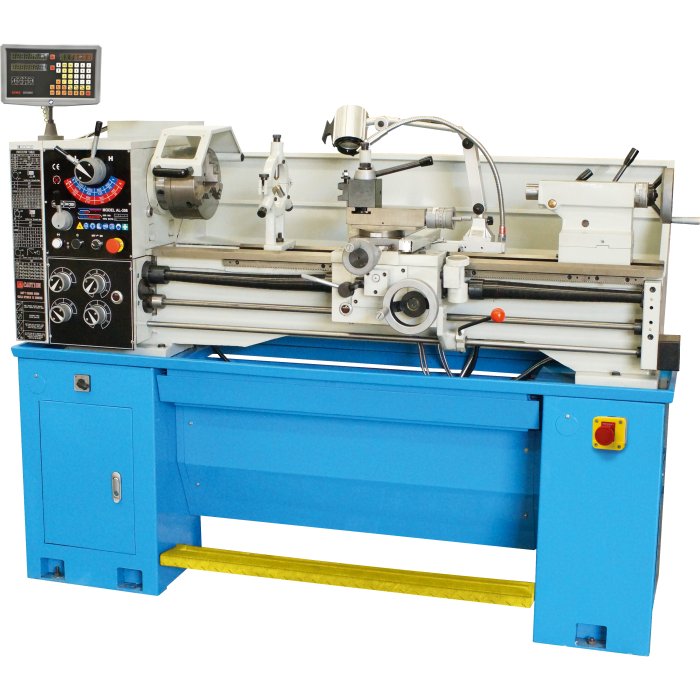

AL-356 Centre Lathe with DRO - Includes Tooling Package
  • 1 of 30
    K8710D
  • 2 of 30
    Z Axis Digital Readout
  • 3 of 30
    3 Jaw Chuck and Safety Guard
  • 4 of 30
    Quick Change Toolpost
  • 5 of 30
    Feed and Screw Cutting Lever
  • 6 of 30
    Gearbox Feed Dials
  • 7 of 30
    Metric Thread Chart
  • 8 of 30
    Imperial Thread Chart
  • 9 of 30
    Longitudinal and Cross feed Chart
  • 10 of 30
    Fixed and Travelling Steadies
  • 11 of 30
    Light and Coolant
  • 12 of 30
    Tailstock
  • 13 of 30
    Thread Chasing Dial
  • 14 of 30
    Cross Feed Handwheel
  • 15 of 30
    Swivel Compound Table
  • 16 of 30
    Saddle Feed Handwheel
  • 17 of 30
    Tail Stock Feed Handwheel
  • 18 of 30
    Induction Hardened Bed Ways
  • 19 of 30
    Adjustable Tailstock
  • 20 of 30
    Leadscrew Covers
  • 21 of 30
    Slideout Swarf Tray
  • 22 of 30
    Tailstock Quill Graduations
  • 23 of 30
    Spindle Speed Selectors
  • 24 of 30
    Headstock Controls
  • 25 of 30
    Spindle Engagement Lever
  • 26 of 30
    Saddle Right View
  • 27 of 30
    Saddle Front View
  • 28 of 30
    Indicator Table For Thread Chasing
  • 29 of 30
    Compound Slide Handle
  • 30 of 30
    2 Speed Switch
Order Code: K8710D
QLD Schools / TAFE - AL-356 Centre Lathe with DRO - Includes Tooling Package (415V)
356 x 1000mm
QLD Contract Item No. 4.2
HAFCO METALMASTER
ORDER CODE
K8710D
QLD Contract No.
QLD Item No. 4.2
Model
Schools/TAFE AL-356

with DRO
Digital Readout
Tool To Suit
16mm
Distance Between Centres
1000mm
Swing Over Bed
356mm
Swing Over Gap
224mm
Swing Over Cross-slide
476mm
Centre Height
178mm
Spindle Bore
51mm
Camlock Spindle Size
D1-5
Bed Width
187mm
Head Stock Spindle Taper
6MT
Tail Stock Taper
4MT
Cross Slide Travel
160mm
Compound Slide Travel
68mm
Lead Screw
Metric
Cross Feed
0.022-0.298mm/rev
Longitudinal Feed
0.078-1.044mm/rev
Metric Thread Range
32 (0.45-10mm)
Imperial Thread Range
20 (2-1/4-40TPI)
3 Jaw Chuck ø
200mm
4 Jaw Chuck ø
200mm
Spindle Steps/speeds
16 (35-1900rpm)
Motor Power
1.8kW / 2.4hp
Voltage
415V
Weight (nett)
650kg
Description
We for many years have been working in close consultation with education departments to ensure the most suitable equipment is provided to our schools and TAFE, not only does it comply with the departments stringent safety requirements but is built to last the distance. That's why we consider our company to be a specialist when it comes to supplying quality Wood Work and Metal Working Machinery for Public or Private Schools, TAFE Colleges and Trade Training Centres in all states of Australia.

The AL-356 is manufactured with all the safety features needed to comply with the education department. This machine has the following safety features such as leadscrew cover, chuck guard with micro switch, micro switch fitted to side access door and emergency foot brake making this machine superior in safety to protect the learning and developing students.
Features
  • 2 Axis digital readout system
  • Quick change toolpost with 4 holders
  • Concertina leadscrew cover
  • Gear drive headstock for quick change of spindle speeds
  • Precision 'V'-beds are hardened and ground, incorporating a rigid webbed casting
  • Low voltage work light
  • Foot operated spindle brake with safety cut out switch
  • Slide out front swarf tray for easy cleaning
  • Change gears for metric and imperial thread cutting
  • Oil sight glass for head stock and gearbox
  • Adjustable taper roller bearings support the spindle
  • Inching button is incorporated on the control panel for convenient spindle speed selection
  • Enclosed quick action gearbox for thread cutting and auto feeding
  • Powered longitudinal and cross feeds
  • D1-5 camlock spindle for quick chuck changes and safe reverse-direction turning. ISO standard
  • Removable gap bed-way for larger diameter jobs
  • Dual calibrated dials (except for saddle hand-wheel)
  • Chuck & change gear guards are fitted with micro switches
  • Coolant system with flexible hose
  • Slide out swarf tray
Includes
  • 2 Axis digital readout system
  • Concertina leadscrew covers
  • Slide out front swarf tray
  • Quick change tool-post with 4 holders
  • 200mm 3-jaw chuck with reverse jaws
  • 200mm 4-jaw chuck
  • Face plate
  • Fixed steady
  • Travelling steady
  • Change gears
  • Dead centres
  • Thread-chasing dial
  • Work light
  • Cast iron stand
  • Rear splash guard & swarf tray
  • Tool box
  • Instruction booklet
