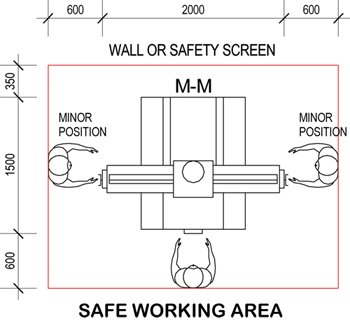

HM-52G Geared Head Milling Machine with DRO - Includes Tooling Package
  • 1 of 31
    K8243
  • 2 of 31
    Control Panel
  • 3 of 31
    Right View
  • 4 of 31
    Horizontal Setup
  • 5 of 31
    Horizontal Milling Accessories
  • 6 of 31
    Horizontal Speed Spindle Chart
  • 7 of 31
    Horizontal Spindle
  • 8 of 31
    Horizontal Spindle Support
  • 9 of 31
    Horizontal Milling Setup
  • 10 of 31
    Speed Chart
  • 11 of 31
    Geared Head Spindle Speed Selectors
  • 12 of 31
    Quill Controls
  • 13 of 31
    Spindle Controls
  • 14 of 31
    Swivel Table
  • 15 of 31
    Tilting Head Scale
  • 16 of 31
    Adjustable Swivel & Sliding Ram
  • 17 of 31
    Concertina Slide Way Cover
  • 18 of 31
    Knee Feed Handle
  • 19 of 31
    Halogen Light
  • 20 of 31
    Coolant Nozzel
  • 21 of 31
    Coolant Pump
  • 22 of 31
    14mm Clamp Kit (C096)
  • 23 of 31
    150mm Machine Vice (V106)
  • 24 of 31
    16mm Keyless Drill Chuck (C294)
  • 25 of 31
    NT30 Drill Chuck Arbor (D451)
  • 26 of 31
    NT30 6 Piece Collet Chuck Set (C924)
  • 27 of 31
    4 12mm Metric End Mill & Slot Drill Set (M333)
  • 28 of 31
    75mm Face Mill Cutter (M512)
  • 29 of 31
    Pkt of 10 Milling Inserts (L066)
  • 30 of 31
    NT30 x 27mm Face Mill Arbor (M542)
  • 31 of 31
    4 x Machine Mounts (M002)
Order Code: K8243
NSW Schools / TAFE - HM-52G Geared Head Milling Machine with DRO - Includes Tooling Package (415V)
(X) 600mm (Y) 220mm (Z) 340mm
NSW Contract Item No.38
HAFCO METALMASTER
ORDER CODE
K8243
NSW Contract No.
NSW Item No.38
Model
Schools / TAFE HM-52G

with Digital Readout
Digital Readout
3-Axis DRO
Drilling Capacity
38mm
End Milling Capacity
32mm
Face Milling Capacity
80mm
Spindle Taper
NT30
Quill Travel / Diameter
125mm / 90mm
Ram Stroke
500mm
Spindle to Table
375mm
Type of Slides
Dovetail
Spindle to Column
640mm
Table Size
1000 x 240mm
T-Slot
14mm
Longitudinal Travel (X-Axis)
600mm
Cross Travel (Y-Axis)
220mm
Vertical Travel (Z-Axis)
340mm
Work Table Load Capacity
175kg
Swivel Head (Left - Right)
±90º
Power Feed Longitudintal (X-Axis)
Optional
Power Feed Cross (Y-Axis)
Optional
Power Feed Vertical (Z-Axis)
Optional
Quill Feed Rate/Rev
Manual
Spindle Speeds (Vertical)
8(115-1750rpm)
Spindle Speeds (Horizontal)
9(60-1350rpm)
Motor Power (Vertical)
1.5kW
Motor Power (Horizontal)
1.5kW
Motor Voltage
415V
Weight (nett)
1050kg
Description
We for many years have been working in close consultation with education departments to ensure the most suitable equipment is provided to our schools and TAFE, not only does it comply with the departments stringent safety requirements but is built to last the distance. That's why we consider our company to be a specialist when it comes to supplying quality Wood Work and Metal Working Machinery for Public or Private Schools, TAFE Colleges and Trade Training Centres in all states of Australia.

A well-built entry level geared head, turret milling, vertical and horizontal, drilling machine with a powerful continuous-load 1.5 kw motor, intended for trade use. The work table is precision made with adjustable dovetail guides and is recognised for its 600mm X axis by 220mm Y axis travel. There is a three armed handle on the side for drilling also incorporating a fine feed control hand wheel on the front for milling. Two levers mounted on right side of milling head enables quick change off the geared spindle speeds.

Other features include taper roller bearing support for the spindle, easy-to-read drilling depth stop, low voltage work light, 8 piece metric collet chuck set, coolant system, 150mm machine vice, drill chuck, 2 & 3 morse taper adaptors. The combination of generous sized vertical support and rugged cast iron construction throughout reduces vibration and guarantees accurate and chatter-free operation.
Features
  • 3 Axis Digital Readout
  • Swivel table & two arbors for the Horizontal spindle
  • Geared head for vertical spindle speeds
  • Tilting head ±90º left to right.
  • 340mm horizontally sliding and rotating ram
  • 30Int Horizontal and vertical spindles that are hardened and ground
  • Precision-ground dovetail slide-ways and table
  • Precision milling table incorporating machined T slots
  • Rear concertina slide-way cover
  • Forward and reverse on/off switch
  • Fine handwheel operated quill feed
  • Swarf & splash tray
  • Spindle lock for quill
  • Metric dial graduations @ 0.02mm for X , Y & Z axis
  • Vertical dial graduations on hand wheel @ 0.05mm
  • All slides utilise dovetail construction for maximum rigidity
  • 2 Arbors for the Horizontal spindle
Includes
  • 3 Axis Digital Readout
  • Swarf Tray
  • Coolant system
  • Halogen lamp
  • 150mm Machine vice
  • Drill chuck & arbor
  • 2 & 3MT adaptors
  • 8-piece Metric collet chuck set (4-16mm)
  • 14mm Clamp Kit (C096)
  • 150mm Machine Vice (V106)
  • 16mm Keyless Drill Chuck (C294)
  • NT30 Drill Chuck Arbor (D451)
  • NT30 x 6 Piece Collet Chuck Set (C9245)
  • 6-20mm Metric End Mill & Slot Drill Set (M330)
  • NT30 x 27mm Face Mill Arbor (M542)
  • 75mm Face Mill Cutter (M512)
  • Pkt of 10 Milling Inserts (L066)
  • 4 x Machine Mounts (M002)
