HAFCO METALMASTERNSW Schools / TAFE

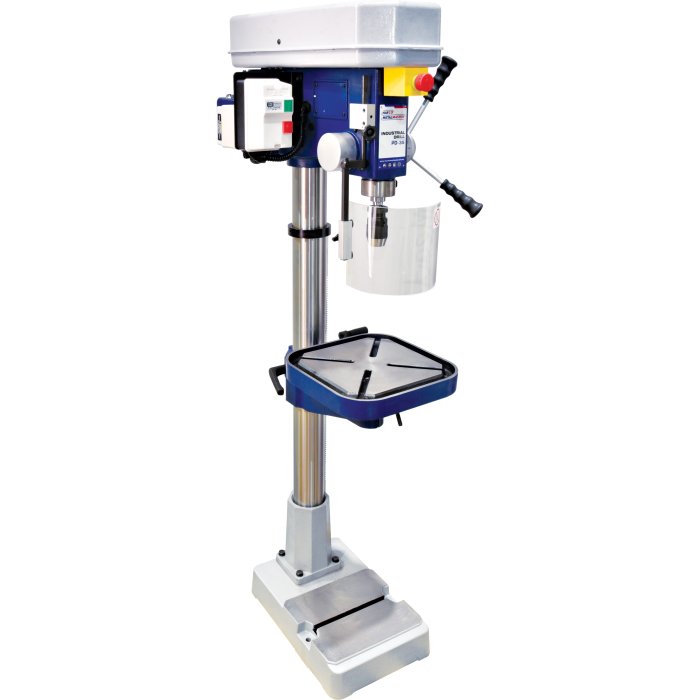

PD-35 Pedestal Drill
  • 1 of 21
    K8200
  • 2 of 21

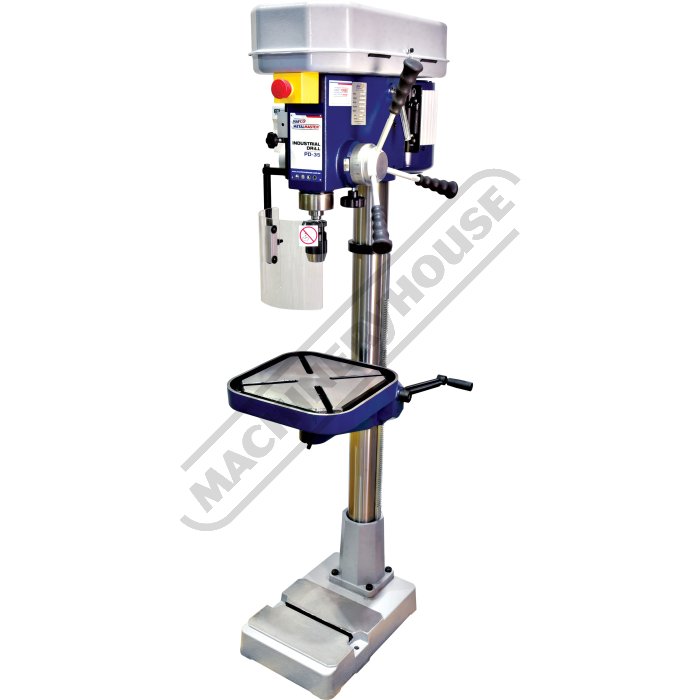

    Right View
  • 3 of 21

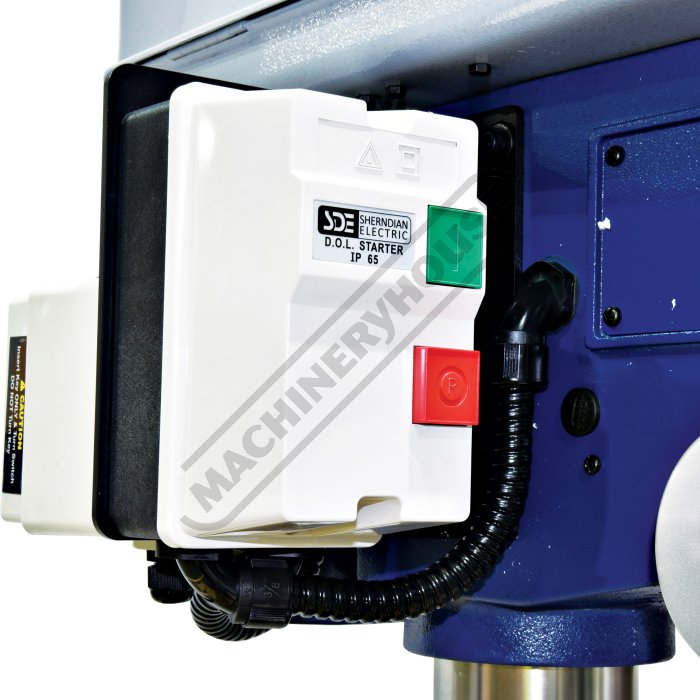

    Magnetic Switch & Safety Stop Switch
  • 4 of 21

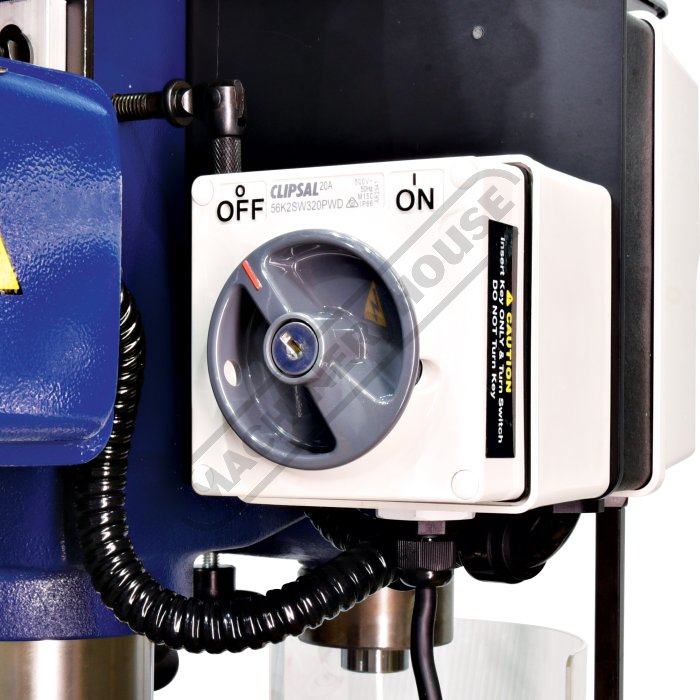

    Lockable Switch
  • 5 of 21

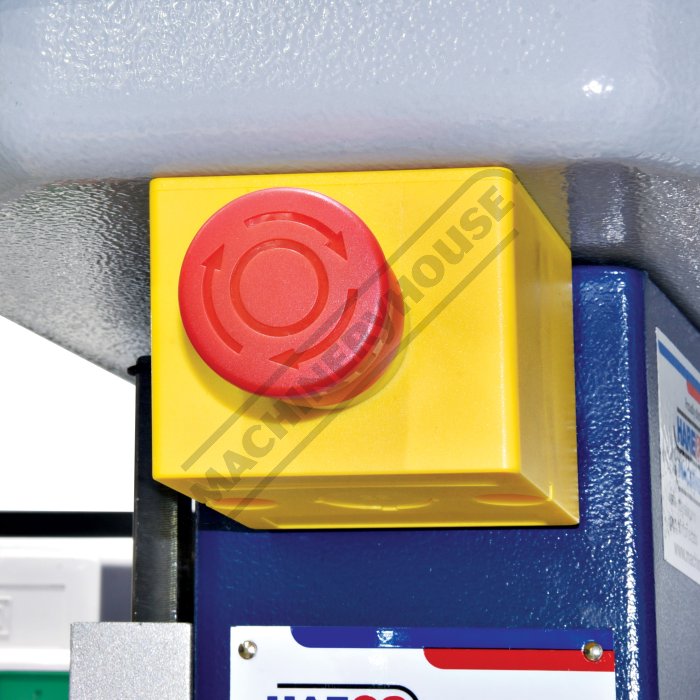

    Safety Stop Switch
  • 6 of 21

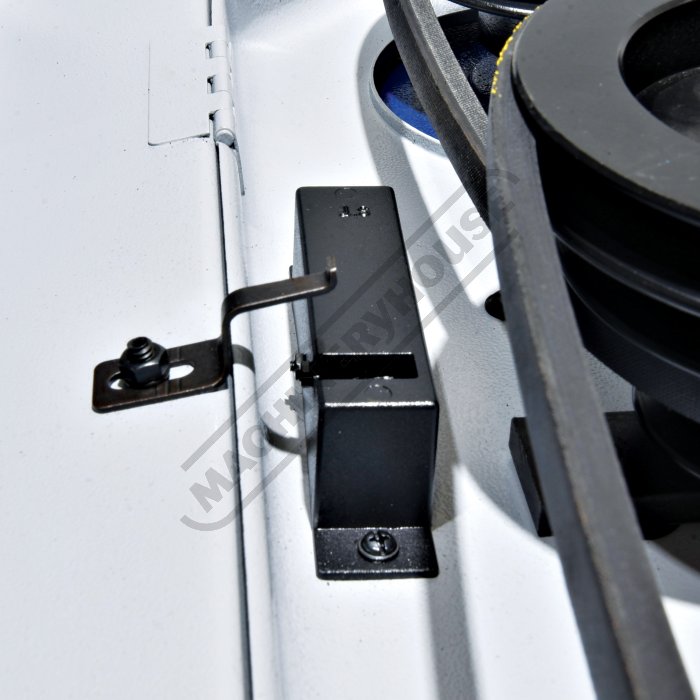

    Safety Micro Switch on Belt Cover
  • 7 of 21

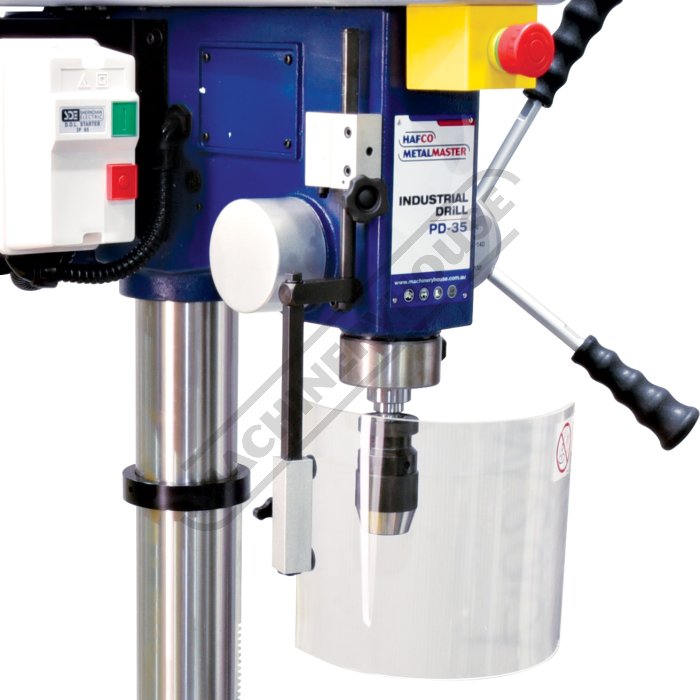

    Adjustable Safety Chuck Guard
  • 8 of 21

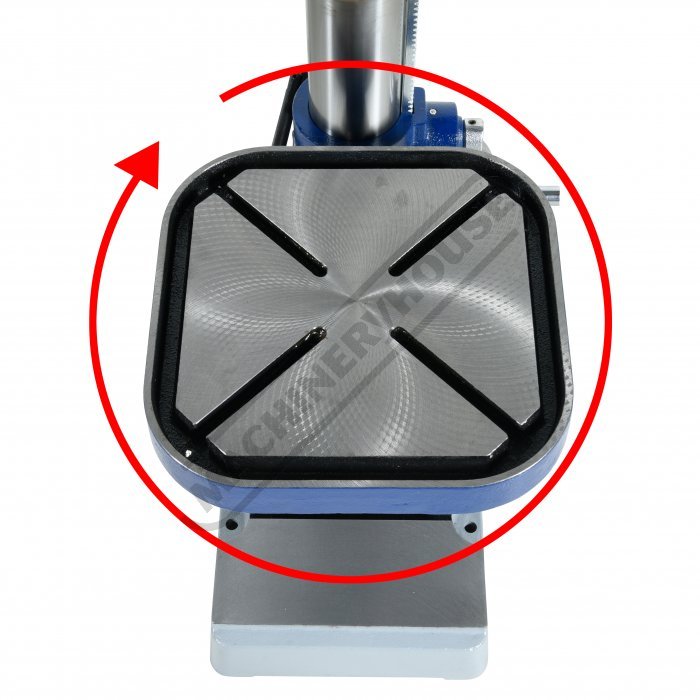

    Tilting & Rotating Cast Iron Table
  • 9 of 21

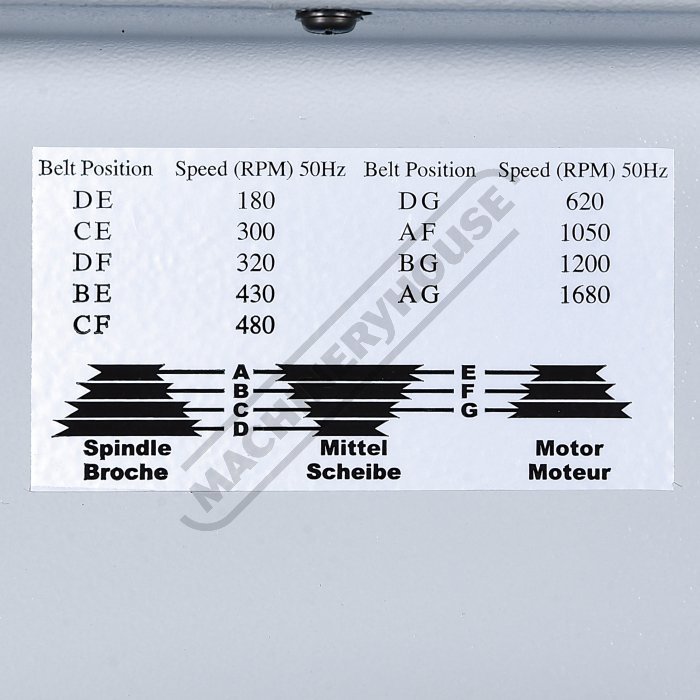

    Speed Chart
  • 10 of 21

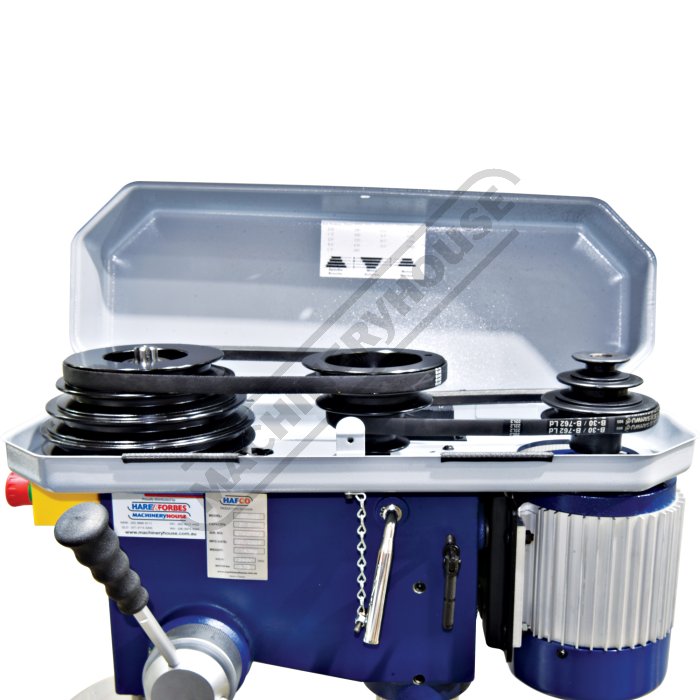

    B Section Belt Drive System
  • 11 of 21

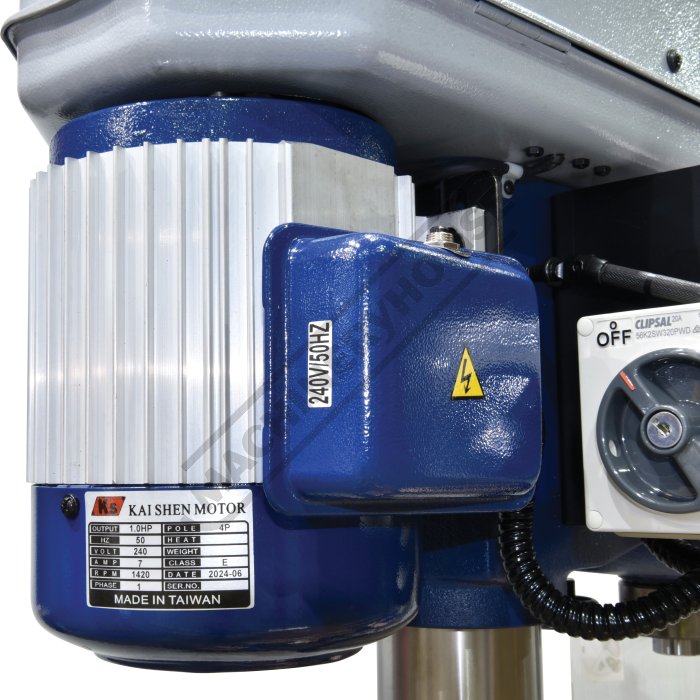

    1hp 240V Motor
  • 12 of 21

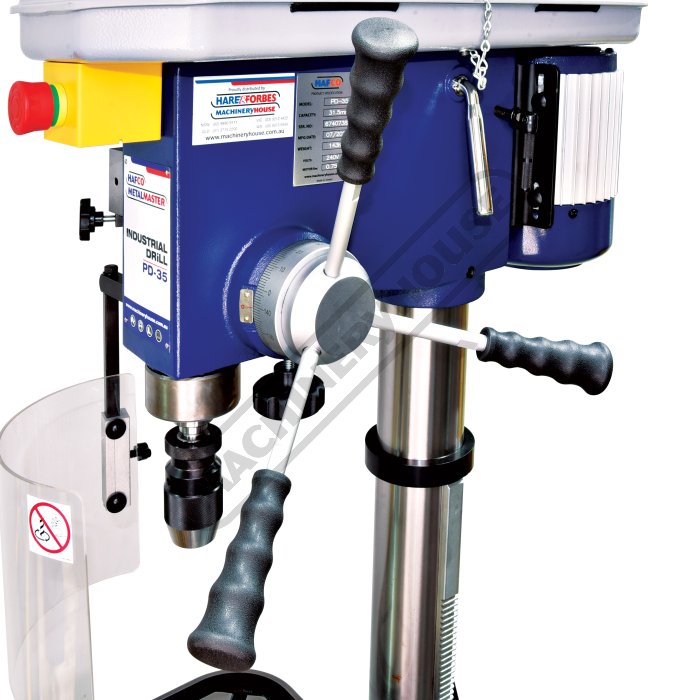

    Quill Handle
  • 13 of 21

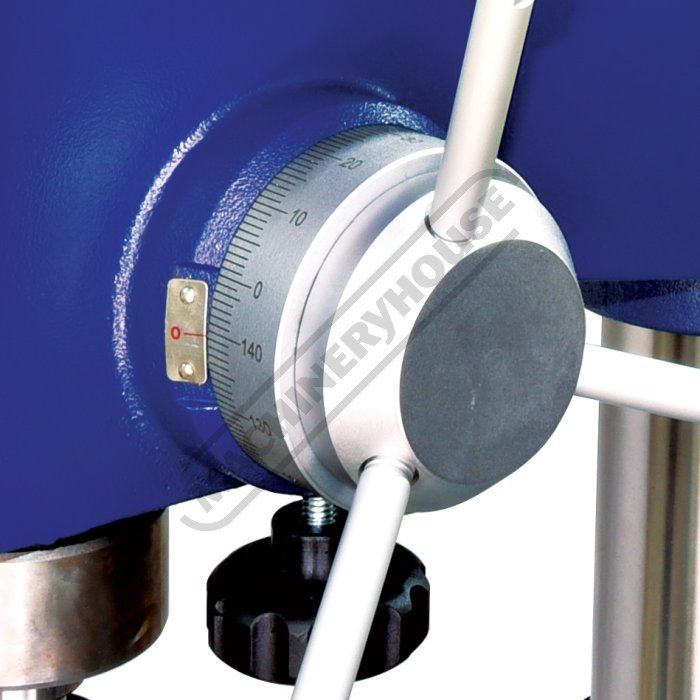

    Drilling Depth Stop Setting with Scale
  • 14 of 21

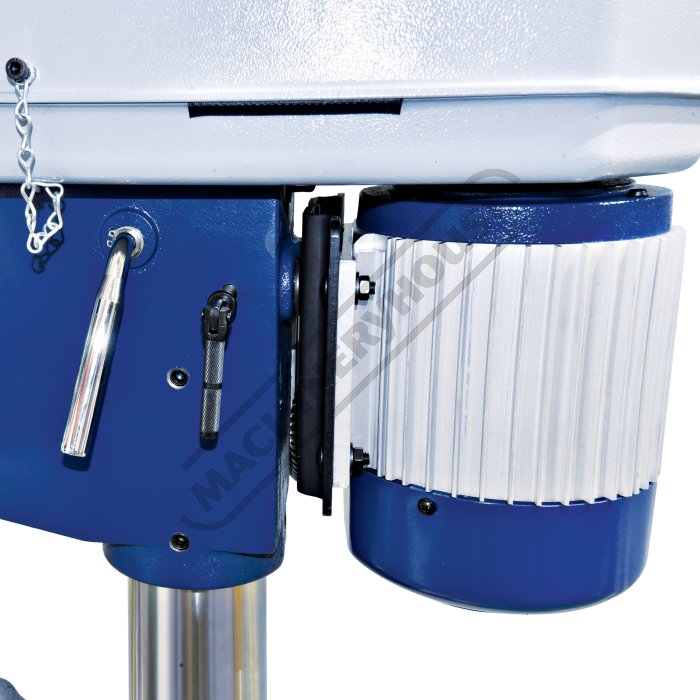

    Motor & Belt Tension Lever & Lock
  • 15 of 21
    Rear View
  • 16 of 21

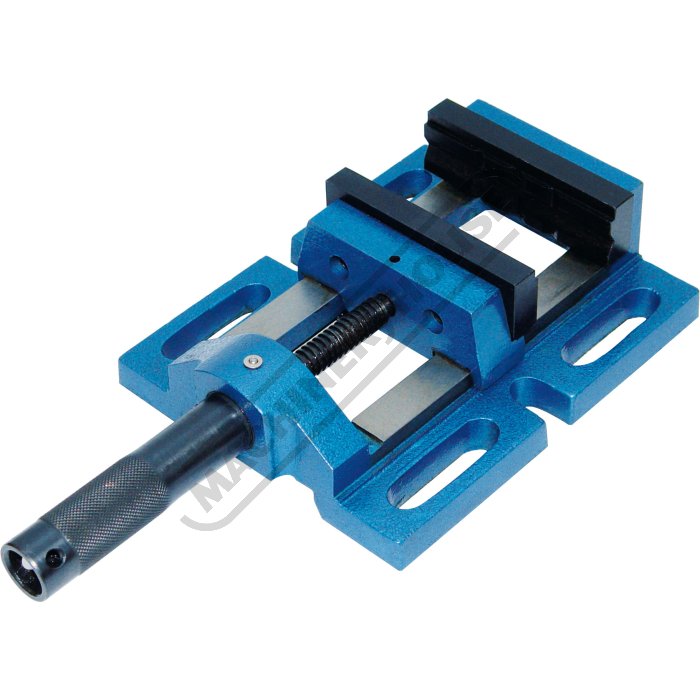

    100mm Deluxe Drill Vice (V144)
  • 17 of 21

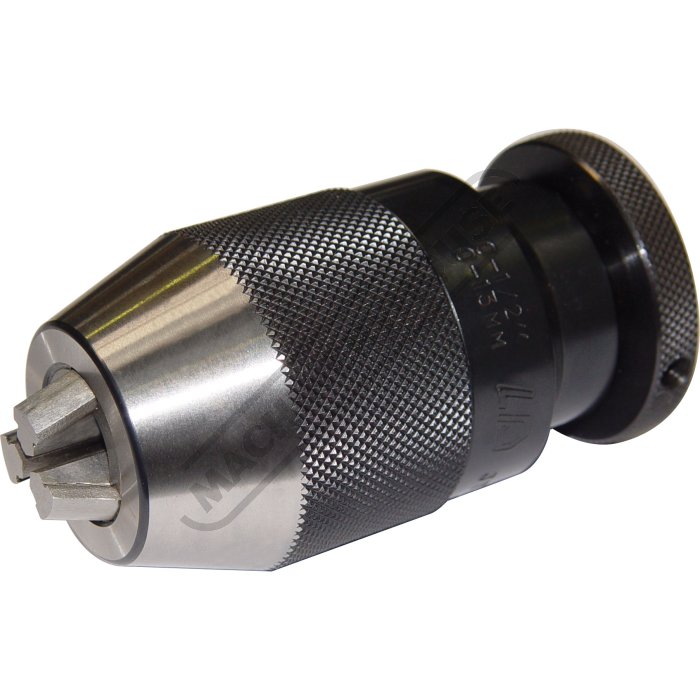

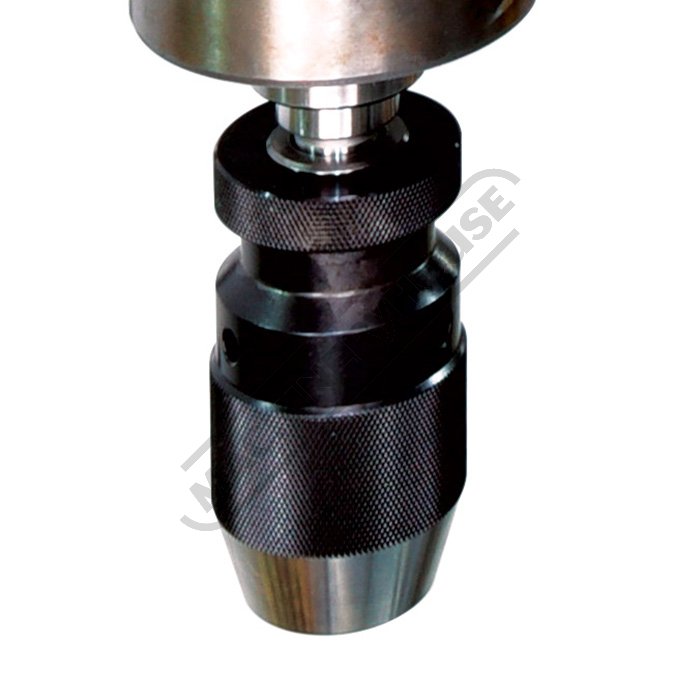

    13mm Keyless Drill Chuck (C292)
  • 18 of 21

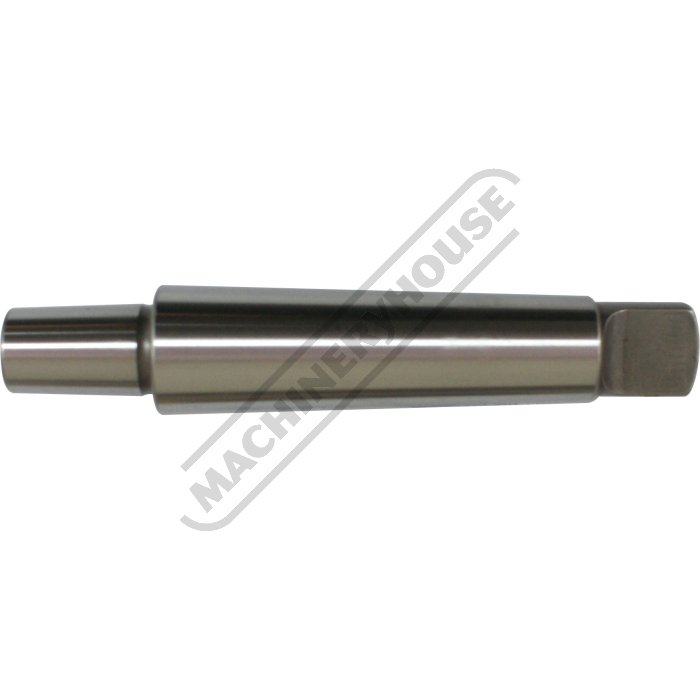

    3MT x JT6 Drill Chuck Arbor (D443)
  • 19 of 21

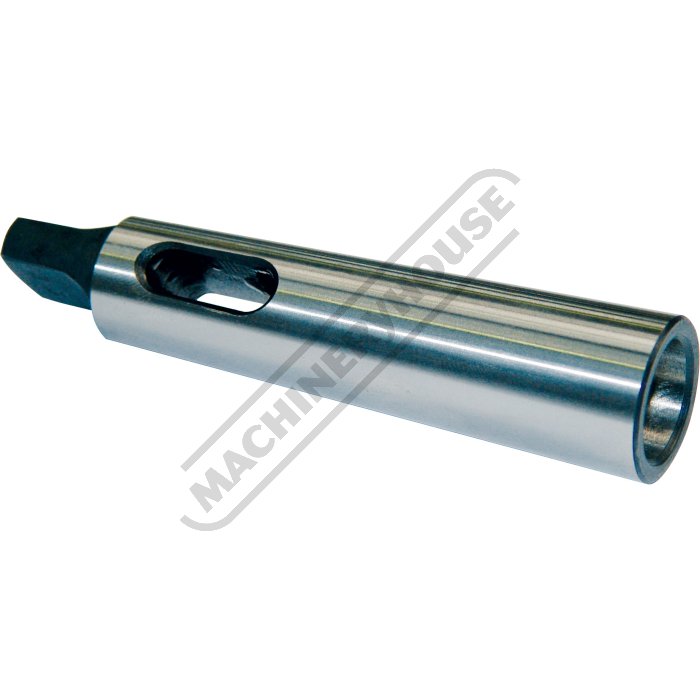

    2MT 1MT Drill Sleeve (D420)
  • 20 of 21

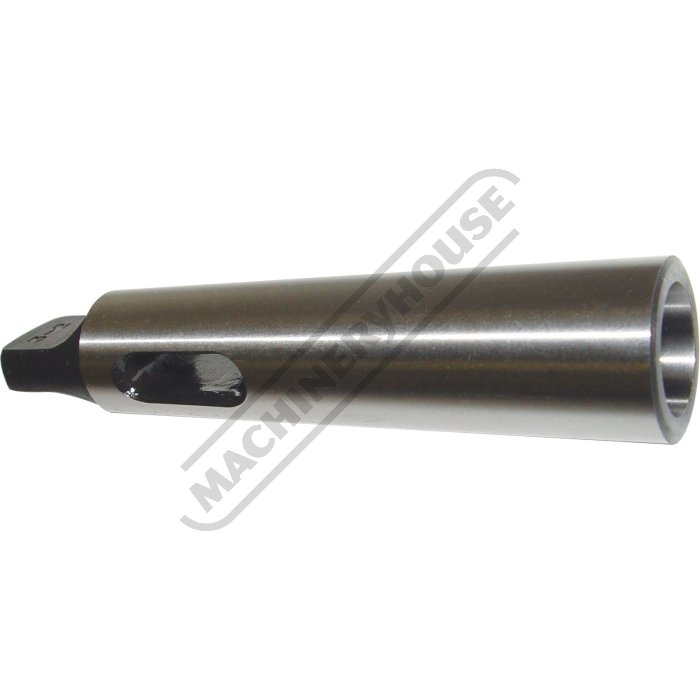

    3MT 2MT Drill Sleeve (D422)
  • 21 of 21

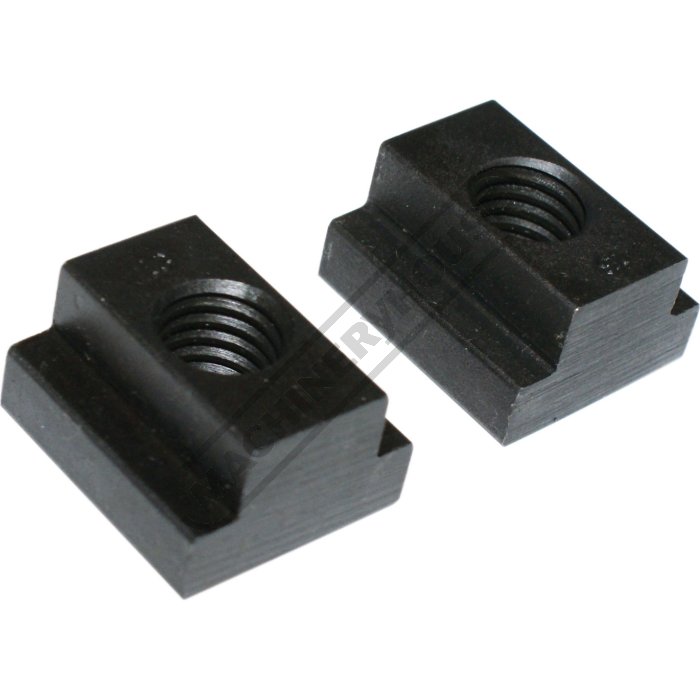

    Clamp Kit Tee Nuts (C085A)
Order Code: K8200
NSW Schools / TAFE - PD-35 Pedestal Drill (240V)
31.5mm
NSW Contract Item No.2A
HAFCO METALMASTER
ORDER CODE
K8200
NSW Contract No.
NSW Contract No.2A
MODEL
Schools / TAFE PD-35
Bench / Pedestal Type
Pedestal
Duty Type
Industrial-Duty
Drill Capacity (mm)
31.5
Spindle Taper (MT)
3
Auto Feed (Yes / No)
No
Spindle Travel (mm)
125
Throat Depth (mm)
225
Quill Diameter (mm)
72
Collar Diameter (mm)
92
Column Diameter (mm)
92
Spindle To Table (mm)
730
Spindle To Base (mm)
1175
Table Shape
Square
Micro Switch On Pulley Guard (Yes / No)
Table Size
350 x 350
Spindle Drive Type
B Section Belt
Spindle Steps (No.)
9
Spindle Speeds (RPM)
180 - 1680
Motor Power (kW / hp)
0.75 / 1
Voltage / Amperage (V / amp)
240 / 10
Overall Height (mm)
1700
Nett Weight (kg)
136
Description
We for many years have been working in close consultation with education departments to ensure the most suitable equipment is provided to our schools and TAFE, not only does it comply with the departments stringent safety requirements but is built to last the distance. That's why we consider our company to be a specialist when it comes to supplying quality Wood Work and Metal Working Machinery for Public or Private Schools, TAFE Colleges and Trade Training Centres in all states of Australia.
Features
  • Ideal for industrial workshop use
  • Quiet "B" section V-belt drive system
  • Quick action belt tensioning lever
  • Adjustable safety drilling chuck guard with swivel screen
  • Safety micro switch on belt cover
  • Safety magnetic-type switch
  • Emergency stop switch

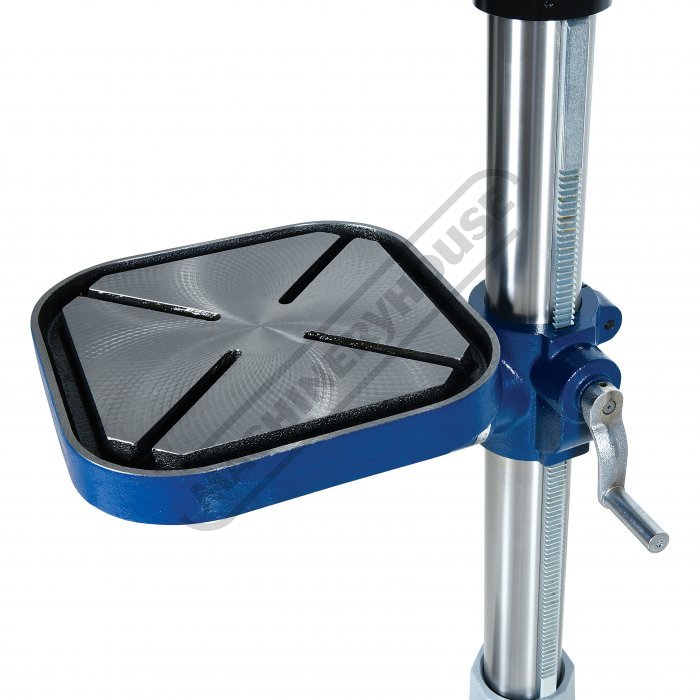

  • Rack & pinion table height adjustment with locking lever
  • Thick walled column ensuring greater rigidity
  • Table tilts left & right to 45º & rotates 360º
  • Drilling depth stop setting with scale
  • T slotted work table
  • 9 Spindle speeds - 180, 300, 320, 310, 430, 480, 620, 1050, 1200, 1680rpm
  • Fan-cooled 240 volt motor rated for continuous use with overload protection
Includes
  • 100mm Delux Drill Vice (V144)
  • 13mm Keyless Drill Chuck (C292)
  • 3MT x JT6 Drill Chuck Arbor (D443)
  • 2MT - 1MT Drill Sleeve (D420)
  • 3MT - 2MT Drill Sleeve (D422)
  • 12mm Clamp Kit Tee Nuts (C085A)
