HAFCO WOODMASTERNSW Schools / TAFE

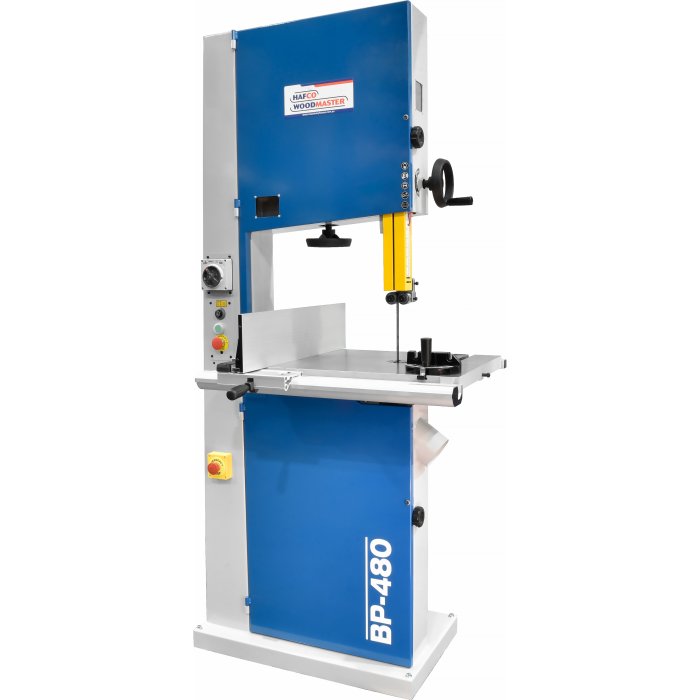

BP-480 Wood Working Band Saw
  • 1 of 16
    K8100
  • 2 of 16

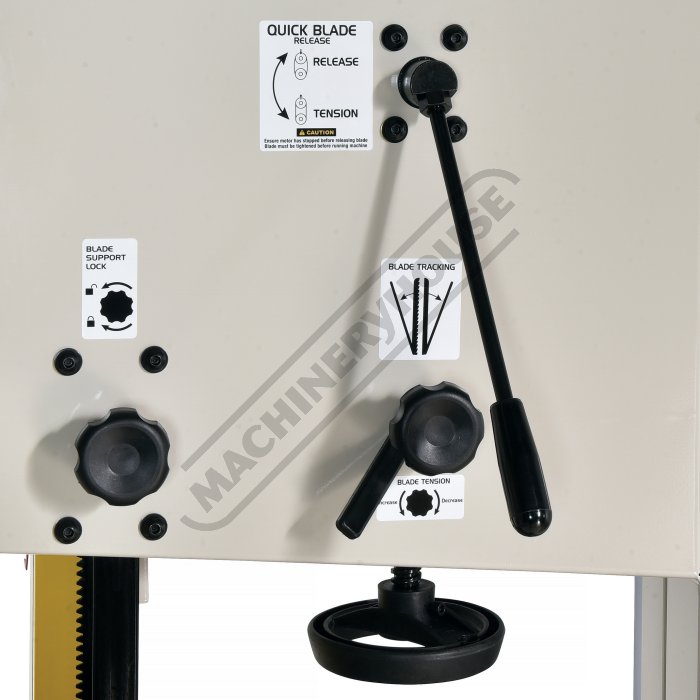

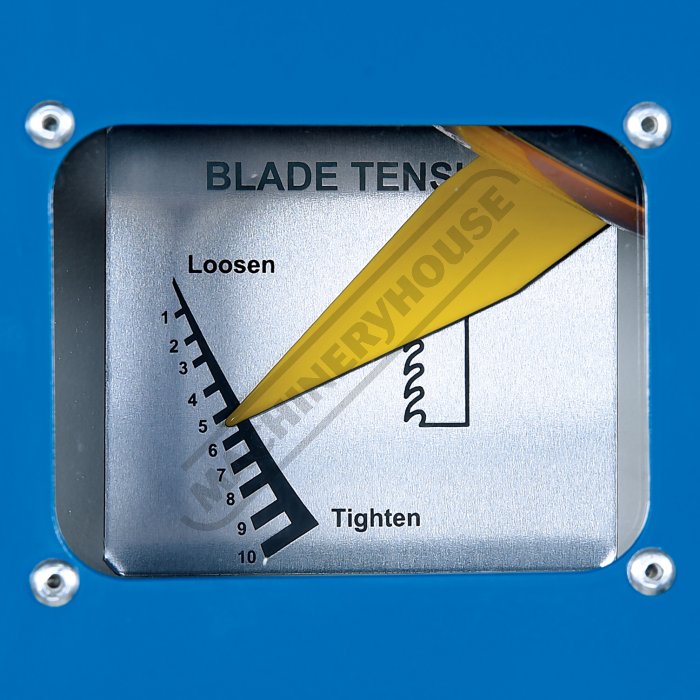

    Blade Tension Sight Indicator
  • 3 of 16

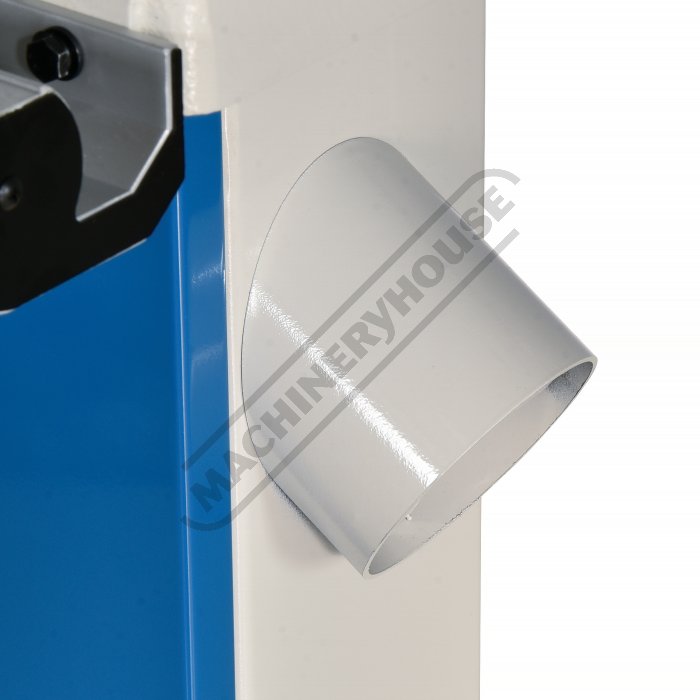

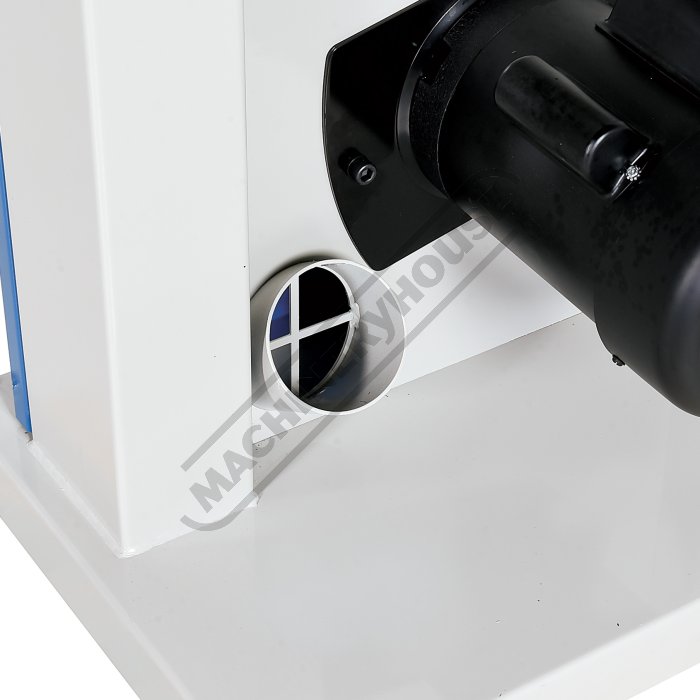

    100mm Dust Chute
  • 4 of 16

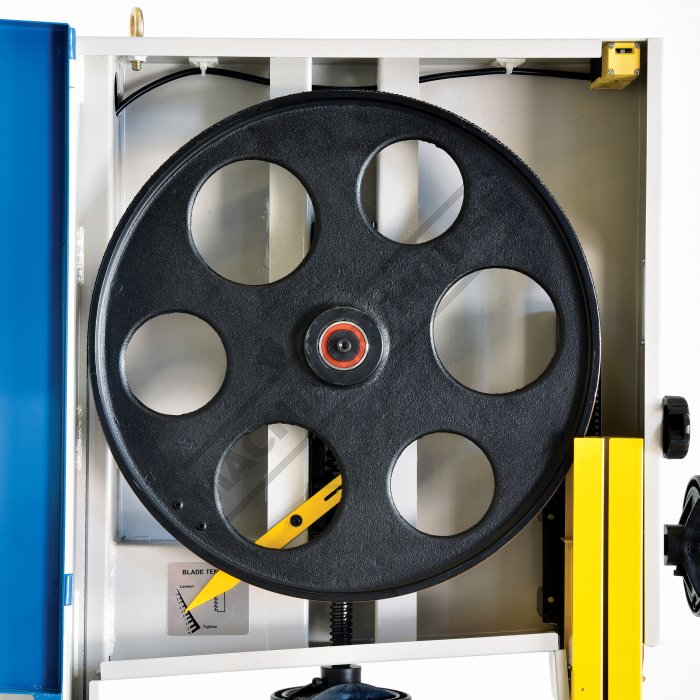

    Heavy Duty Cast Iron Wheels
  • 5 of 16

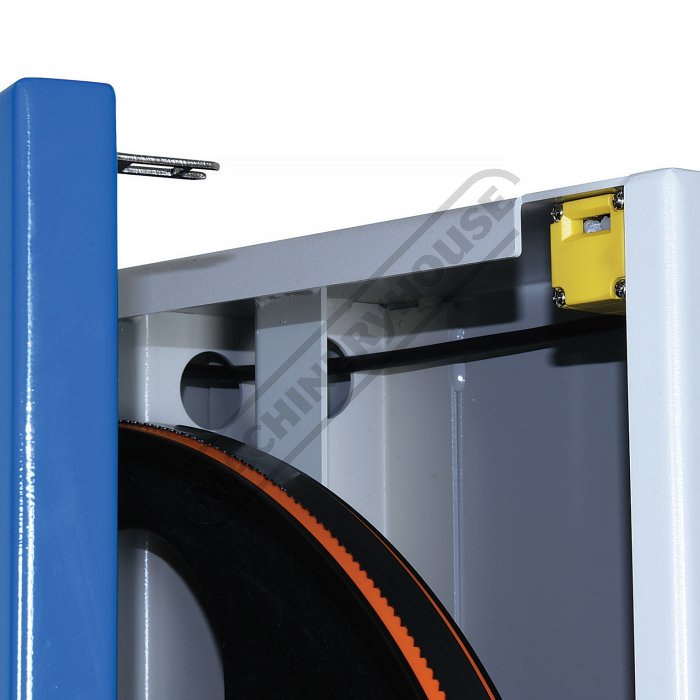

    Safety Micro Switch on Doors
  • 6 of 16
    Ball Bearing Blade Guides
  • 7 of 16

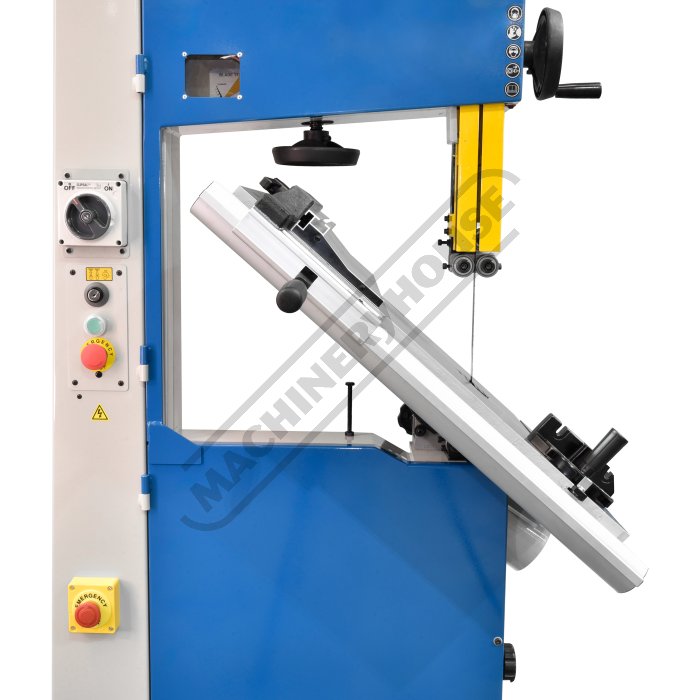

    Cast Iron Table Tilts to 45 Degrees
  • 8 of 16

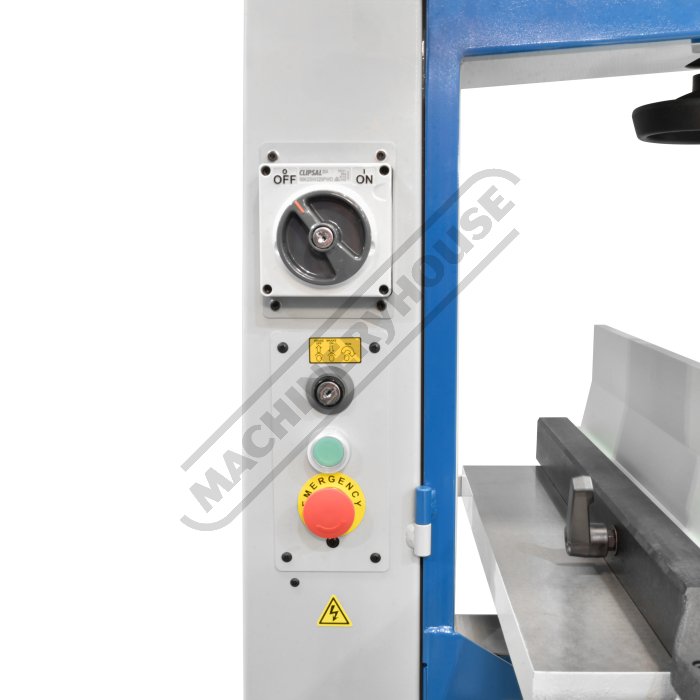

    Keyed Safety Switch
  • 9 of 16

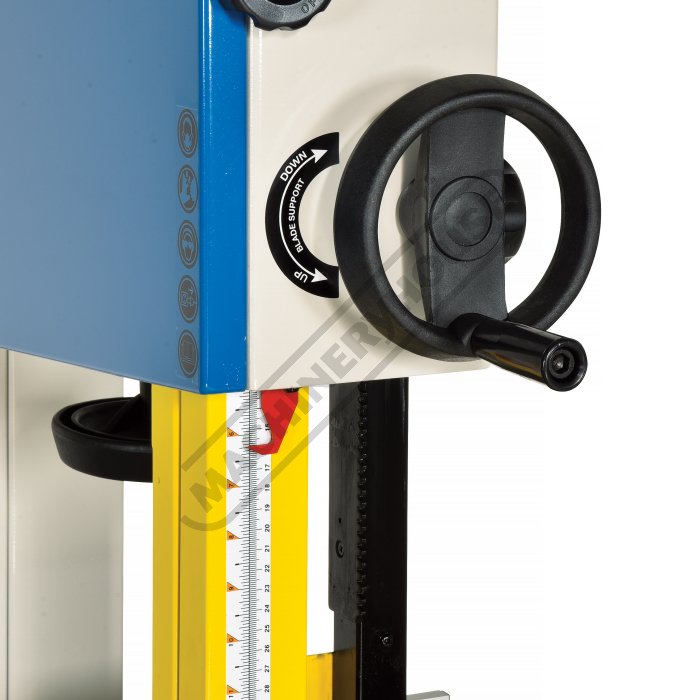

    Rack & Pinion Adjustment on Top Blade Guide
  • 10 of 16

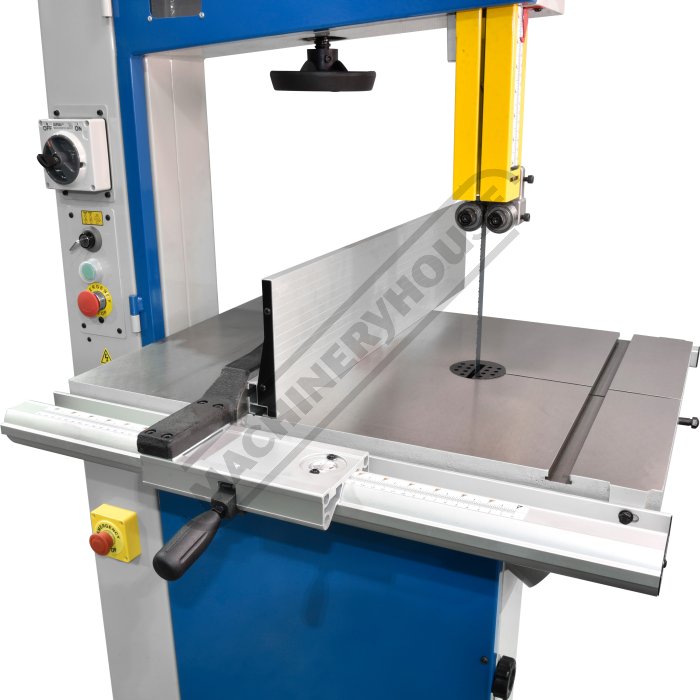

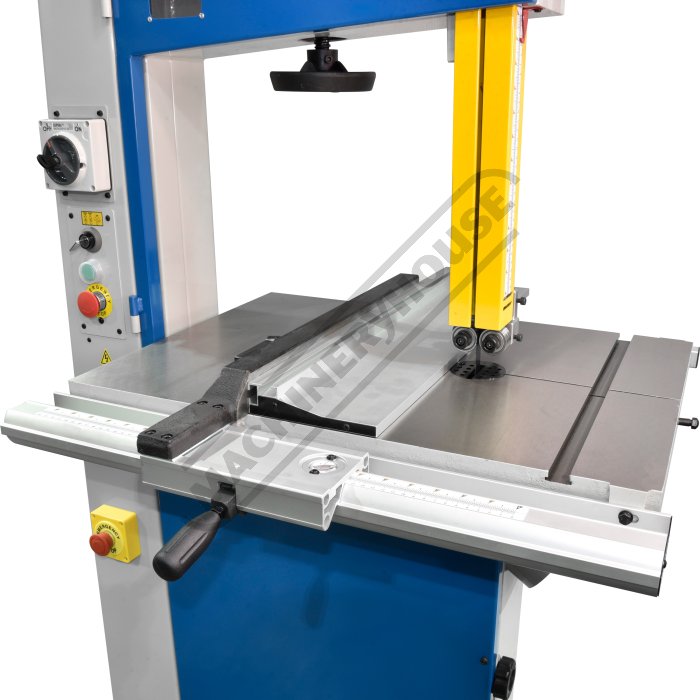

    Sliding Rip Fence
  • 11 of 16

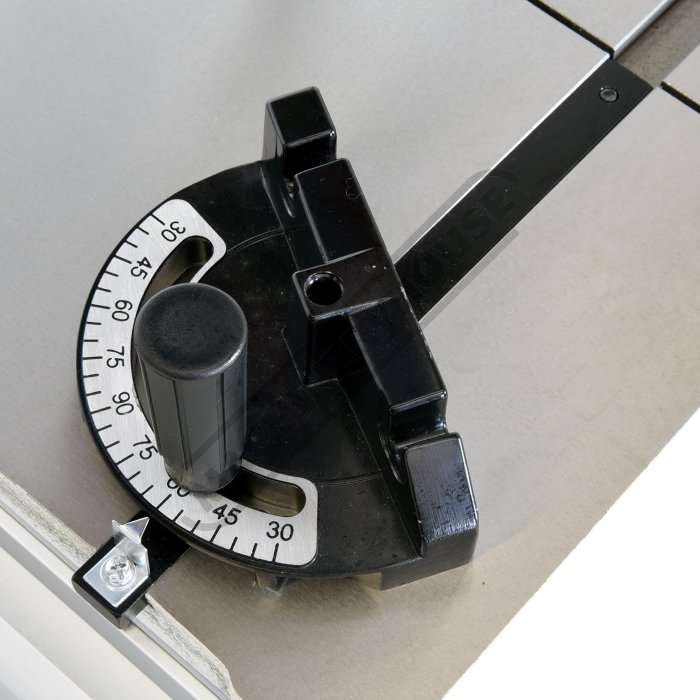

    Mitre Guide
  • 12 of 16

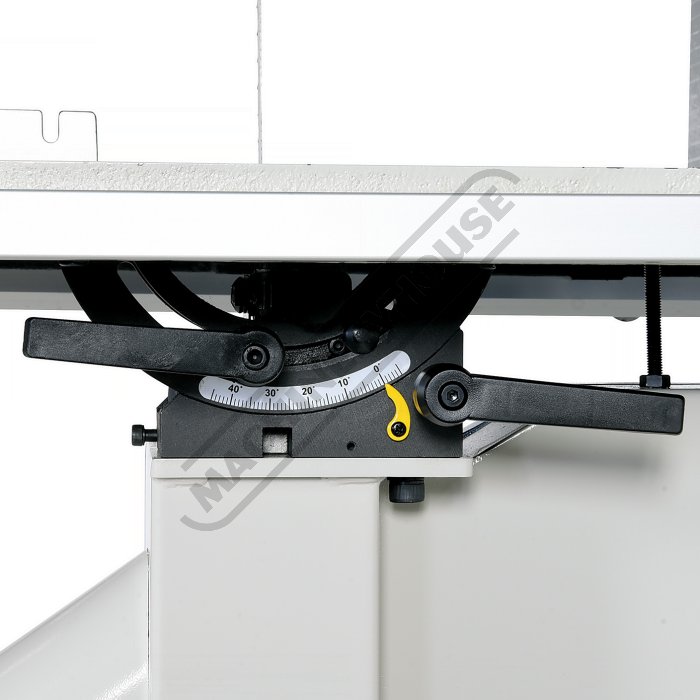

    Table Tilt Adjustment
  • 13 of 16

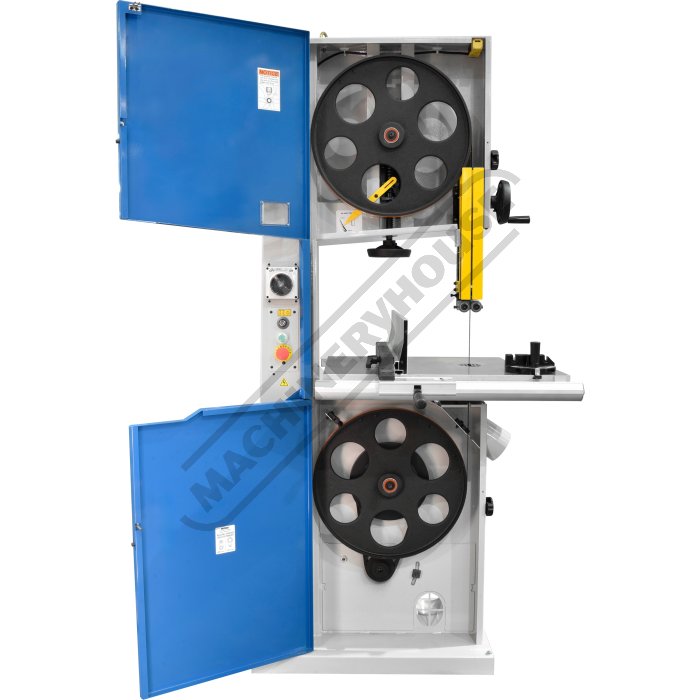

    Shown with Blade Door Open
  • 14 of 16

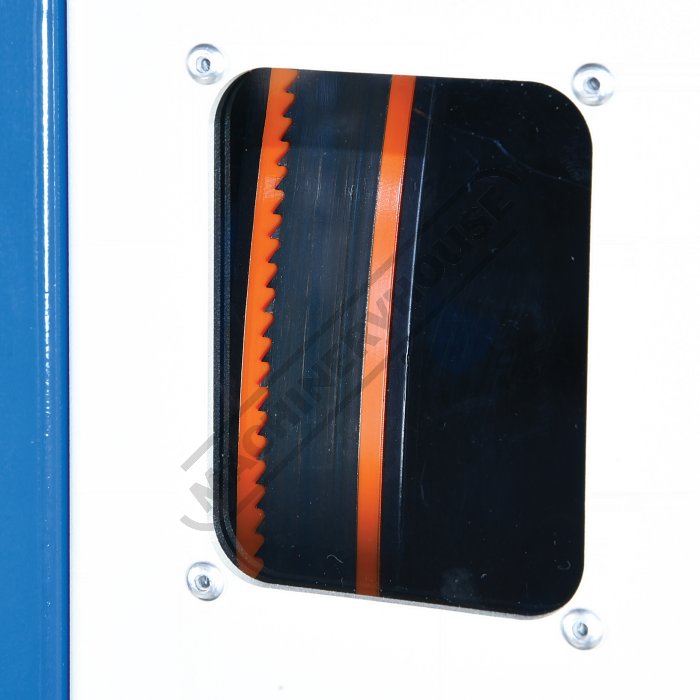

    Blade Tension Viewing Window
  • 15 of 16
    RipFence Closup
  • 16 of 16

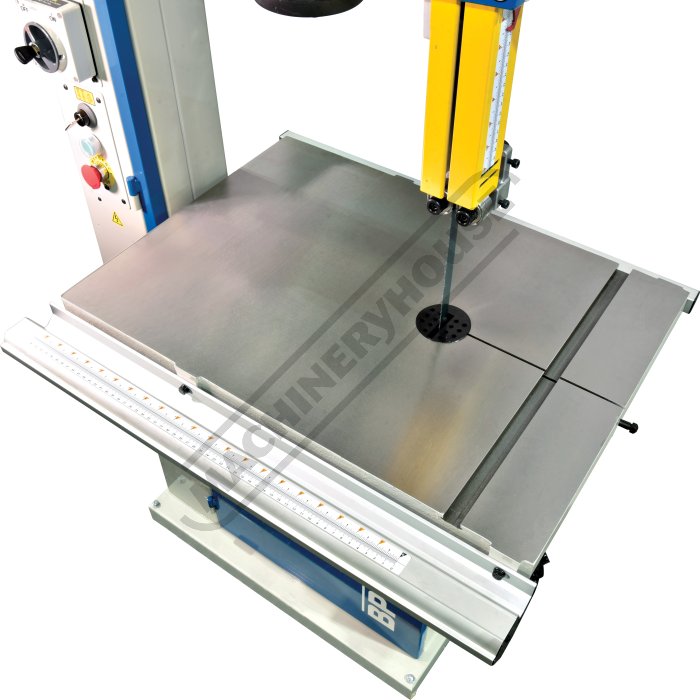

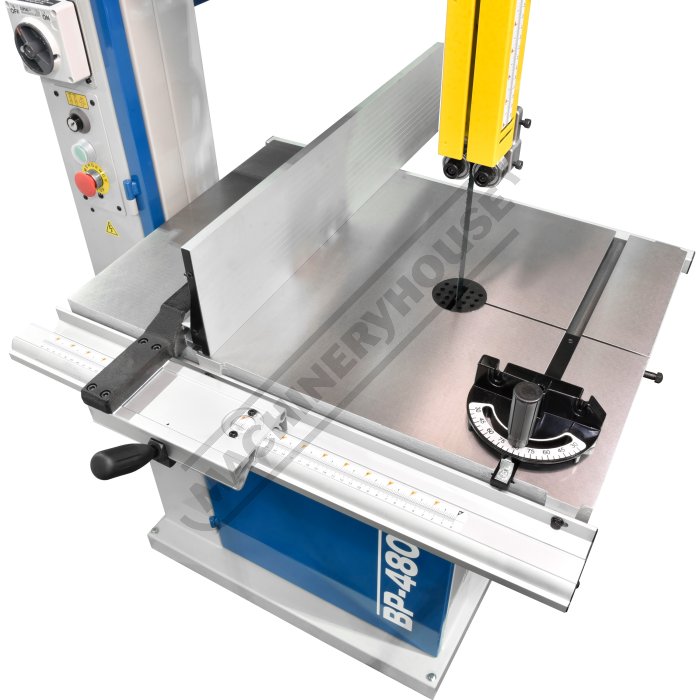

    Table
Order Code: K8100
NSW Schools / TAFE - BP-480 Wood Working Band Saw (240V)
465 x 310mm
NSW Contract Item No.1A
HAFCO WOODMASTER
ORDER CODE
K8100
NSW Contract No.
NSW Item No.1A
Model
Schools / TAFE BP-480
Throat Capacity
465mm
Wheel Dia.
480mm
Height Capacity
310mm
Table Size
480 x 480mm
Frame Type
Steel
Motor Voltage
240V - 15 amp
Motor Power
1500W / 2hp
Full Height
1980mm
Blade Code
W434A/B
Blade Length
3630 x 19mm
Description
We for many years have been working in close consultation with education departments to ensure the most suitable equipment is provided to our schools and TAFE, not only does it comply with the departments stringent safety requirements but is built to last the distance. That's why we consider our company to be a specialist when it comes to supplying quality Wood Work and Metal Working Machinery for Public or Private Schools, TAFE Colleges and Trade Training Centres in all states of Australia.

OAV-manufactures the latest and updated range of fabricated steel frame band saws to take care of your sawing needs. Oav series band saws are well known and recognised for producing a clean cut because of its unique design and well built quality.
Features
  • 1500W / 2hp 240V (15A plug) brake motor
  • 2-speed 488/1010m/min
  • 465mm throat capacity, 480mm Wheel Dia
  • CE switch gear - Magnetic switch, Micro-switch protection on hinged blade guard doors
  • Ball bearing blade guides
  • Quick-action blade tension
  • Rack & pinion adjustment on top blade guide
  • Twin 100mm dust chutes
  • Cast iron Table tilts to 45˚
  • Quality Taiwanese Manufacture
Includes
  • Mitre guide
  • Aluminium Rip fence

Product Brochure

Instruction Manual
28.25 MB
Enter your postcode to estimate the delivery fee for this product.
Postcode:
Freight is estimated from the nearest branch that has stock available.
Our delivery contractors operate Monday to Friday only, excluding public holidays.
All orders are processed in order of payment receipt.
Our aim is to despatch your goods as quickly as possible, however despatch times may take longer than our standard 3 to 5 day service during peak periods or according to stock levels, if this is the case we will advise you before processing your order.
