Order Code: K057A
HG-3206 & PB-110B - Hydraulic NC Guillotine & NC Pressbrake Package (415V)
Guillotine - 3200 x 6mm, Pressbrake 3200mm x 110 Ton
Ezy-Set NC-89 Go-To Control
METALMASTER
ORDER CODE
K057A
Model
HG-3206 + PB-110B
Shearing Capacity - Mild Steel
6mm
Shearing Capacity - Stainless Steel
4mm
Shearing Length
3200mm
Backgauge Travel
1000mm
Backgauge Control
Ezy-Set NC-89
Quick Action Blade Clearance Adjustment
Backgauge Type
Hardened Ballscrew
Strokes / min
18
Blade Angle
1º 30
Throat Depth
250mm
Motor Power
5.5kW / 7.5hp
Motor Voltage
415V
Weight (Nett)
12720kg
Description

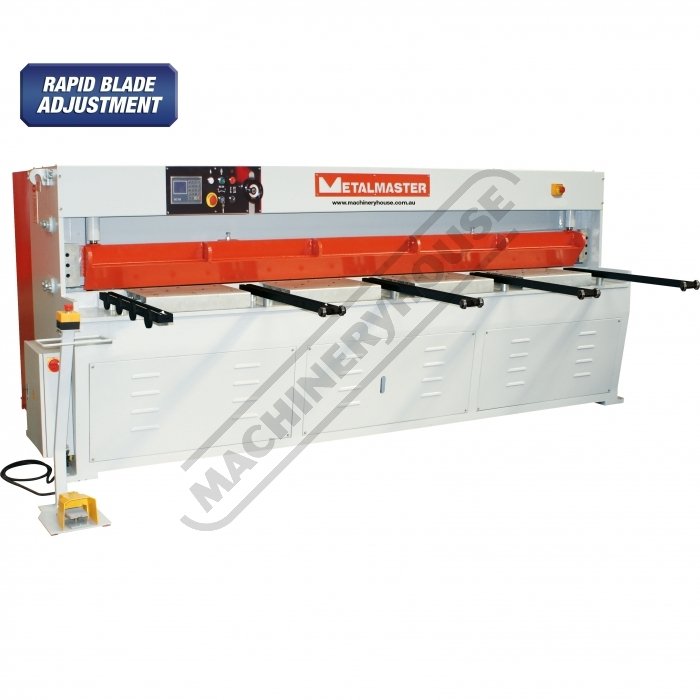

S940 = HG-3206 GUILLOTINE:
MetalMaster Quality Guillotines feature high durability, and provide precision shearing capabilities, The Guillotine main frames are constructed from rolled, stress relieved solid steel to prevent distortion during the shearing process and under extreme continuous loads.

MetalMaster Guillotines are produced in high volume production process and therefore are able to be manufactured cost effectively, resulting in affordable price, representing value for money and quicker return on investment.

This heavy duty over driven style, fixed rake guillotine has been developed for shearing material from mild steel through to stainless steel due to the specially designed shearing blades with characteristics of 1. High resistance to wear, 2. High resistance to corrosion, 3. High resistance to impact & 4. High tensile strength.

All electrical components are off European quality supplied by, Telemecanique

USA Hydraulic control valve unit supplied by Omega.


S904G = PB-110B PRESSBRAKE:
MetalMaster Quality Pressbrakes feature high durability, and provide precision bending capabilities. The Pressbrake main frames are constructed from rolled, stress relieved solid steel to prevent distortion during the bending process and under extreme continuous loads.

MetalMaster Pressbrakes are produced in a high volume production process and therefore are able to be manufactured cost effectively, resulting in affordable price, representing value for money and quicker return on investment.

Featuring an adjustable synchronised torsion bar with positive stop system ensures consistent and accurate bending beam parallelism tolerance to 0.01mm via the digital Control unit.

All electrical components are off European quality supplied by, Telemecanique, Merlin Gerin and ABB. Hydraulic control units are supplied by Aron from Italy.
Features
  • S940 = HG-3206 GUILLOTINE: 3200mm x 6mm
  • Hydraulic individual sheet material clamping system with nylon inserts to protect material from indentation from the clamping cylinders along full length of machine.
  • Ezy-Set NC-89 Go-To digital display control provides up to 1000mm travel via hardened ballscrew backgauge allowing operator to program the cut length required. Also fitted is a stroke counter and stroke adjustment dial allowing shorter materials to be cut using a shorter stroke length, this feature will increase production.
  • Blade gap adjusting dial mounted on side of machine for convenient and accurate alteration for all your material thickness from 0.5 - 6mm. This dial is designed so that a straightforward rotation clock or anti clockwise to achieve desired plate thickness. Measurement on dial indicates and refers to actual blade gap distance in millimetres
  • Control unit mounted on swivel pendant arm enabling operator to easily access the control from the side, this is very useful when machine is loaded with full length of material.
  • Transfer balls inserted into work table allowing material to be easily moved to the cut position and squaring arm.
  • Top shearing blade made from 9Crsi quality composite and has two (2) cutting edges allowing minimised down time in blade rotation.
  • Bottom shearing blade made from 9Crsi quality composite and has four (4) cutting edges allowing minimised down time in blade rotation.
  • The core structure of the steel main frame has been electronically welded ensuring maximum penetration during the manufacturing process. In addition to this feature the cutting beam has been stress relieved eliminating any distortion after manufacturing.
  • Shadow line lighting has been incorporated into the machine frame providing a clear cutting line on the work piece and enabling scribed or marked material to be cut with simplicity as required.
  • Heavy duty squaring arm is fitted with a graduated rule and adjustable flip up front stops and mitre guide allowing operator to cut to measure from the front of machine. Flip over stops can be set to repeat cutting length required with accuracy. The arm also aligns the material to be located square to the cutting edge.
  • Three safety photo electric safety rear guards fitted to steel side gates ensuring that the machine will be disabled when person enters rear of machine when in use. Sliding rear material chutes fitted with inserted ball transfers to allow material to skate away from machine allowing operator to retrieve cut pieces without disabling machine
  • Mild steel capacity is rated on hot rolled material with 250MPA


  • S904G = PB-110B PRESSBRAKE: 110T x 3200mm
  • Hydraulic / Mechanical ram, synchronised positive stop design, ram stroke controlled by precision mechanical nut depth stops built into each cylinder. Electronically controlled by Ezy-Set NC-89 Go-To Programmable digital control assuring accurate repeatability.
  • Parallelism is ensured by torsion bar that can be easily adjusted by clutch system.
  • Ezy-Set NC-89 Go-To Programmable leadscrew backgauge with adjustable height finger stops.
  • Segmented heavy duty 86° offset top punch is segmented for return bend clearance, complete with European style quick release punch holder with an adjustable wedge clamping system for crowning. Intermediate clamp has safety key to stop punch dropping.
  • Multi vee ('V') bottom die is made from one 3200mm solid die block design to handle heavy plate, safety edge vee ('V') is incorporated in bottom die block.
  • Conveniently mounted control box on pendant for quick swivel and adjustments.
  • Enclosed rear gate with micro safety switches complete with sliding rear door for easy access.
  • European quick release style top punch and clamping system, allowing operator to change position of tooling to suit multiple requirements on complex applications. This feature ensures minimum down time, more productivity and results in reduced cost per finished product.
  • Sliding steel fabricated sheet supports enabling a wide range of material sizes to be aligned and supported at the correct required height. This feature is achieved with a "T" slot machined down the total length of the die bed; sheet supports are also adjustable vertically to assist in supporting material with return bends already folded.
  • Adjustable sliding blocks control the machines beam to provide desirable open height distance to the (slow speed) mute bending point. Operator adjustable locking knobs for quick adjustment, enables accurate repeatability and increased productivity.
  • Metal safety guarding surrounding the machine with rear sliding door fitted and micro switch ensuring operator safety. Clear access panels placed at each end of machine allows the operator to clearly view tooling and work piece during bending operation. MetalMaster specially design gates to suit Australian safety requirements.
  • Hydraulic MPA pressure gauge mounted on right side of support frame with quick adjusting pressure control knob allowing operator to accurately set the pressure required for different material thickness, incorporating with hydraulic overload protection.
  • Welded steel fabricated synchronised torsion bar horizontally supporting main bending beam to provide consistent parallelism that also can be adjusted for taper correction.
  • The vertical supporting slides are treated to provide greater ware resistance and increased accuracy.
  • Includes safety control guarding system with light curtains fitted
  • Mild steel capacity is rated on hot rolled material with 250MPA
Includes
  • S940 = HG-3206 GUILLOTINE:
  • Heavy duty over driven machine construction
  • Rapid blade gap adjustment
  • Emergency stops fitted on both ends of machine for additional safety
  • Individual hydraulic hold downs with nylon pads
  • 250mm throat enables shearing of longer material than 2500mm
  • Shadow line lighting allows operator to quickly see the cut line
  • 1000mm Ezy-Set NC-89 Go-To via hardened ballscrew backgauge with fine adjustment
  • Swing away backgauge function for cutting long sheets
  • 4 edge quality 9Crsi blades suitable for stainless steel
  • Omega OEM (USA) hydraulic valve system
  • Telemecanique & Merlin Gerin electrical components
  • Transfer balls on table & support arms
  • Heavy duty support arms and squaring arms
  • Stroke counter and short stroke adjustment
  • Sliding chute fitted, easily allowing operator to retrieve cut pieces
  • Three safety photo electric light beams on rear guarding


  • S904G = PB-110B PRESSBRAKE:
  • Swivel pendant control unit operated by Ezy-Set NC-89 Go-To control Axis
  • Sliding front sheet support arms
  • Emergency stop buttons conveniently located on control panel and foot control
  • Mobile dual operation foot control
  • Segmented 86° offset top punch
  • Solid one piece four way multi vee (V) die block
  • Quick action top punch tool holder system with wedge type adjustment
  • Powered operated leadscrew backgauge with 600mm travel, operated by Ezy-Set NC-89 Go-To control
  • Oil tank level indicator
  • Metal constructed safety guarding surrounding machine with clear side viewing panels
  • Integrated hydraulic system allowing rapid approach switching automatically to slow bend
  • Includes safety control guarding system with light curtains fitted
