THIS PRODUCT IS NO LONGER AVAILABLE. Click to see similar products > Thicknessers
HAFCO WOODMASTERT-380A
Thicknesser Package with Accessories
  • 1 of 7
    W414
  • 2 of 7

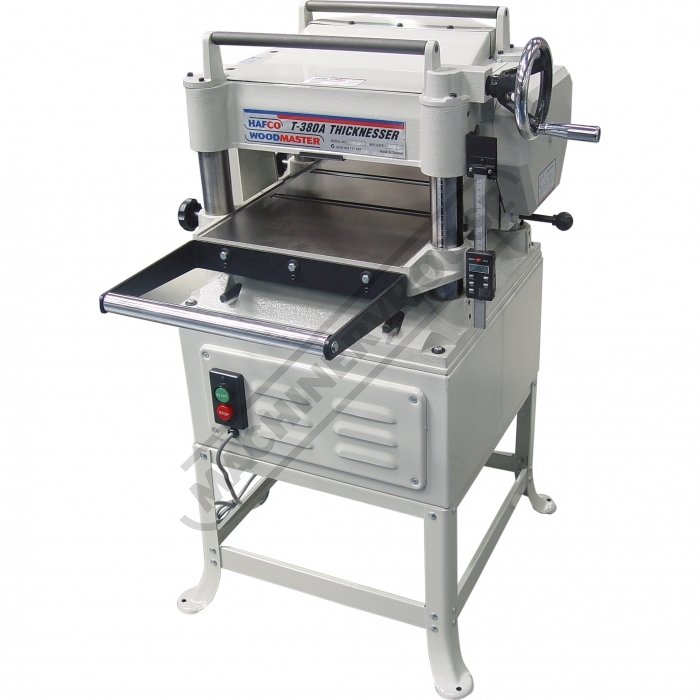

    Front View
  • 3 of 7
    2 Speed Feed Gearbox
  • 4 of 7
    Digital Height Readout
  • 5 of 7
    Robust 4 Post Design
  • 6 of 7
    On Off Switch
  • 7 of 7
    Side View
Order Code: K040
T-380A - Thicknesser Package with Accessories (240V)
380 x 150mm (W x H) Material Capacity
HAFCO WOODMASTER
ORDER CODE
K040
Model
T-380A Package
Material Width Capacity
380mm
Material Height Capacity
150mm
Cutter Type
HSS Blades - Straight
Qty of Cutters
3 Blades
Motor Power
1.5kw / 2hp
Voltage
240V
Weight (Nett)
210kg
Description
The Hafco T-380 thicknesser is a heavy duty machine with very substantial cast iron body and heavy gauge sheet steel base. The cast iron thicknessing table, which has a polished surface for reduced vibration and improved quality of cut, is supported on solid pillars at each corner and has extension rollers both front and back for improved timber support. The three knife cutter block gives a clean finish on the timber, and adjustment to the cutter knives is easily made by removing the top waste guard.

Steel rollers with ribbing ensure positive drive on the timber through the machine at a rate of 16 or 20 fpm via two speed gearbox, the feed roller pressure can be adjusted with the four adjusters on the top of the machine. The depth of cut is set by means of the cranked handle on the side using the setting scale positioned on the in-feed side or digital readout. Power is provided by a 1500W / 2hp 240V induction motor, housed within the base and transmitting power to the cutter block via a twin pulley vee belt drive system.
Features
  • 380mm wide x 150mm high timber capacity
  • Digital Height Gauge (Includes LR44 battery)
  • Motor located in enclosed stand ensuring effortless rise/fall & less wear to mechanical components
  • Solid cast iron construction
  • 3 x HSS blades pre-set in cutter head with quick action blade change
  • 2 speed gearbox
  • 100mm dust chute
  • Same model sold for over 20 years
  • Quality Taiwanese Manufacturer
Includes
  • 1 x T380A thicknesser
  • 1 x 100kg roller stand
  • 1 x 227kg mobile base
  • 1 x set of replacement blades
Product Brochure

Parts Sheet
949.07 KB
Spare Parts Ordering
To assist you in ordering your spare part quicker than ever before, we have listed our most common spare parts to suit our Hafco Machinery for purchase online. Just choose between the 2 options outlined below, to find exactly what you are looking for. If you need further assistance please contact us.
Option 1
Browse through the "Common Spare Parts" tab below . Once you have identified your part, you can add it to your cart by clicking on the "+ ADD TO CART" button. If you wish to add multiples of this part you can either click the "+ ADD TO CART" button as many times as you like or click on the "VIEW CART" button and change the order quantity, prior to completing your order.
Option 2
If your part is NOT listed in the "Common Spare Parts" tab below , click the "MORE INFO" button to complete the "Spare Parts Enquiry Form".
This will provide you with the option to email your spare part enquiry direct to our Spare Parts and Service Department, or if you wish, you can download a printable version of this enquiry form which will include a copy of the Parts List to suit this machine (if available). Further instructions for the return email address or fax number of this printable form is provided on the document for your convenience.
NOTE: Please remember to clearly identify your part on the included parts diagram if necessary so that we can respond as quickly as possible with a price and availability for the part(s) you require.
