THIS PRODUCT IS NO LONGER AVAILABLE. Click to see similar products > Metal Band Saws - Horizontal
HAFCO METALMASTEREB-320DS

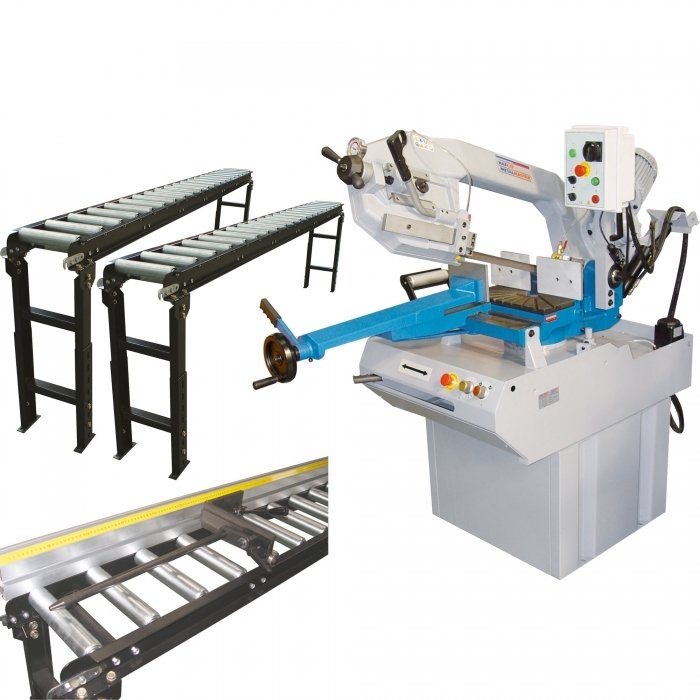

Swivel Head Metal Cutting Band Saw Package with Conveyor System
  • 1 of 9
    K002
  • 2 of 9
    Adjustable Automatic Feed
  • 3 of 9
    Blade Tension Gauge
  • 4 of 9
    Control Panel
  • 5 of 9
    Dual Mitre Swivel Head
  • 6 of 9
    Motor and Gearbox Drive
  • 7 of 9
    Quick Action Clamp Lever
  • 8 of 9
    Wire Wheel and Roller Bearing Blade Guides
  • 9 of 9
    Coolant System
Order Code: K002
EB-320DS - Swivel Head Metal Cutting Band Saw Package with Conveyor System (415V)
310 x 205mm (W x H) Rectangle Capacity
HAFCO METALMASTER
ORDER CODE
K002
MODEL
EB-320DS Package Deal
Operation Type
Swivel Head - Dual Mitre
Round @ 90º (mm)
255
Round @ 45º (mm)
220
Round @ 60º (mm)
125
Square @ 90º (mm)
205
Square @ 45º (mm)
200
Square @ 60º (mm)
125
Rectangle (W x H) @ 90º (mm)
310 x 205
Rectangle (W x H) @ 45º (mm)
205 x 200
Rectangle (W x H) @ 60º (mm)
125 x 125
Coolant System
Table Working Height (mm)
950
Cutting Head Beam Type
Manual
Cutting Head Beam Return
Manual Return
Cutting Head Down Feed Control
Adjustable Hydraulic
Vice Clamping Fixture
Manual - Quick Action
Blade Steps / Speeds (m/min)
35-70
Blade Size (L x W x T) (mm)
2750 x 27 x 0.9
Motor Power (kW / hp)
1.5 / 2
Voltage / Amperage (V / amp)
415
Nett Weight (kg)
360
Features
  • 310 x 205mm rectangular capacity
  • Larger capacity than conventional cold saws
  • Heavy-duty gear drive system
  • Ball bearing blade guides ensures minimal blade clearance wear and increases blade life due to less friction
  • Blade cleaning brush incorporated into blade guide system
  • Swivel head double mitre cut to 45º right & left, 60º right
  • Quick action lock/release lever for swivel head
  • Coolant system for cutting efficiency and blade life
  • Input support roller for long stock
  • User friendly blade tension system with gauge
  • Adjustable hydraulic cylinder for auto feed
  • 2-speed motor enabling blade speeds of 35 & 70mpm
  • Vibration free, low noise operation ensures clean & high precision cuts
  • Machine stand with integrated cooling fitted as standard
  • Quick-action lock/release vice
  • Unique sliding vice design for dual mitre operation
Includes
  • 1 x EB320DS band saw
  • 2 x 290mm wide x 3000mm long roller conveyors
  • 4 x Conveyor stands
  • 1 x 3000mm length stop
Product Brochure

Blade Selection Chart
381.95 KB
Instruction Manual & Parts List
1.07 MB
Trouble Shooting Guide
330.4 KB
