If you want your tube work to line up nicely for final welding, you’ll need to perfect the art of notching
1. Tube notching can be done in a variety of ways. From painstakingly doing them with a 4in grinder, to V-notching using a drop saw, to dedicated notching attachments for either pedestal or hand drills, which allow a much greater range of angles to be used. When Hare and Forbes gave us the opportunity to use their dedicated notching machine, we jumped at the chance to use a new tool. And boy, what a difference! Angle perfect notches were made within seconds and were millimetre accurate using this piece of equipment, and saved us a heap of time on our sliders project.
2. With the tube secured in the adjustable clamp, the abrasive belt is fired up and the tube is fed into it using the lever. The speed at which this grinds out a perfect notch has to be seen to be believed. Different sized notches can be done by changing the diameter of the front roller. The top of the machine is hinged so that it lifts up to reveal the spinning belt, making it incredibly handy for removing paint from steel or preparing metal for welding.
3. We only needed a few simple notches to attach our outriggers to the outer tube rail of our sliders. The other end is being welded to square section, so it didn’t require notching, only to be cut on the correct angle. Check out how perfect the notch is in relation to the tube it’s going to be joined to. A nice 1mm gap to ensure good weld penetration and uniform distance along the circumference of the tube. While close enough is usually good enough when it comes to notching, it’s nice to have the tools that guarantee it’ll be spot on every time.
4. Here’s the first outrigger being marked before being tacked in place. Note that the paint on the metal has been sanded back in-preparation for welding. After what seems like endless preparation, it’s great to see that our sliders are finally starting to take shape! Check in next month as we start looking at a couple of basic welding techniques, and when to use them.
(Modified 4WD Magazine issue #54) Metal Fabrication
A Notch Above

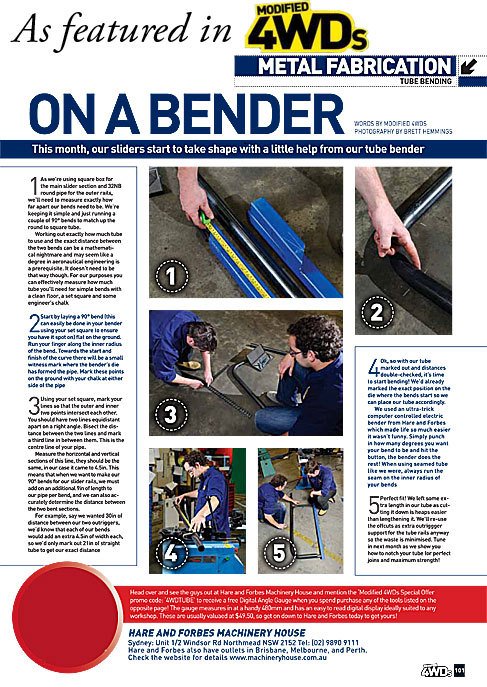

This month, our sliders start to take shape with a little help from our tube bender
1. As we’re using square box for the main slider section and 32NB round pipe for the outer rails, we’ll need to measure exactly how far apart our bends need to be. We’re keeping it simple and just running a couple of 90° bends to match up the round to square tube. Working out exactly how much tube to use and the exact distance between the two bends can be a mathematical nightmare and may seem like a degree in aeronautical engineering is a prerequisite. It doesn’t need to be that way though. For our purposes you can effectively measure how much tube you’ll need for simple bends with a clean floor, a set square and some
engineer’s chalk.
2. Start by laying a 90° bend (this can easily be done in your bender using your set square to ensure you have it spot on) flat on the ground. Run your finger along the inner radius of the bend. Towards the start and finish of the curve there will be a small witness mark where the bender’s die has formed the pipe. Mark these points on the ground with your chalk at either side of the pipe.
3. Using your set square, mark your lines so that the outer and inner two points intersect each other. You should have two lines equidistant apart on a right angle. Bisect the distance between the two lines and mark a third line in between them. This is the centre line of your pipe. Measure the horizontal and vertical sections of this line, they should be the same, in our case it came to 4.5in. This means that when we want to make our 90° bends for our slider rails, we must add on an additional 9in of length to our pipe per bend, and we can also accurately determine the distance between the two bent sections. For example, say we wanted 30in of distance between our two outriggers, we’d know that each of our bends would add an extra 4.5in of width each, so we’d only mark out 21in of straight tube to get our exact distance.
4. Ok, so with our tube marked out and distances double-checked, it’s time to start bending! We’d already marked the exact position on the die where the bends start so we can place our tube accordingly. We used an ultra-trick computer controlled electric bender from Hare and Forbes which made life so much easier it wasn’t funny. Simply punch in how many degrees you want your bend to be and hit the button, the bender does the rest! When using seamed tube like we were, always run the seam on the inner radius of your bends.
5. Perfect fit! We left some extra length in our tube as cutting it down is heaps easier than lengthening it. We’ll re-use the offcuts as extra outriggger support for the tube rails anyway so the waste is minimised. Tune in next month as we show you how to notch your tube for perfect joins and maximum strength!
(Modified 4WD Magazine issue #53) Metal Fabrication
On a Bender

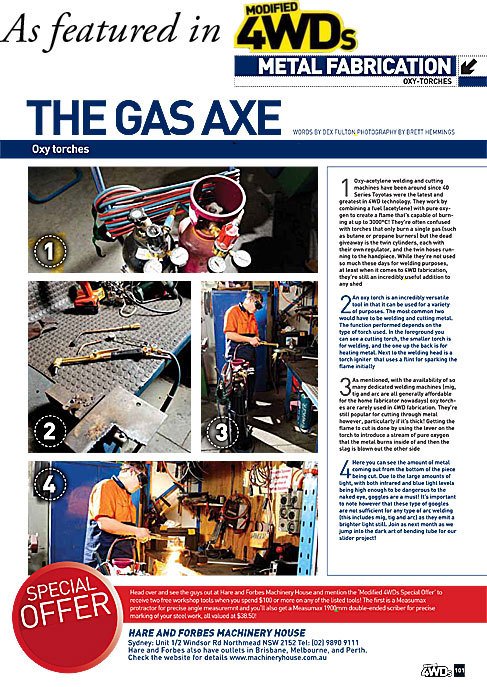

Oxy torches
1. Oxy-acetylene welding and cutting machines have been around since 40 Series Toyotas were the latest and greatest in 4WD technology. They work by combining a fuel (acetylene) with pure oxygen to create a flame that’s capable of burning at up to 3000°C! They’re often confused with torches that only burn a single gas (such as butane or propane burners) but the dead give-away is the twin cylinders, each with their own regulator, and the twin hoses running to the hand-piece. While they’re not used so much these days for welding purposes, at least when it comes to 4WD fabrication, they’re still an incredibly useful addition to any shed.
2. An oxy torch is an incredibly versatile tool in that it can be used for a variety of purposes. The most common two would have to be welding and cutting metal. The function performed depends on the type of torch used. In the foreground you can see a cutting torch, the smaller torch is for welding, and the one up the back is for heating metal. Next to the welding head is a torch igniter that uses a flint for sparking the flame initially.
3. As mentioned, with the availability of so many dedicated welding machines (mig, tig and arc are all generally affordable for the home fabricator nowadays) oxy torches are rarely used in 4WD fabrication. They’re still popular for cutting through metal however, particularly if it’s thick! Getting the flame to cut is done by using the lever on the torch to introduce a stream of pure oxygen that the metal burns inside of and then the slag is blown out the other side.
4. Here you can see the amount of metal coming out from the bottom of the piece being cut. Due to the large amounts of light, with both infrared and blue light levels being high enough to be dangerous to the naked eye, goggles are a must! It’s important to note however that these type of googles are not sufficient for any type of arc welding (this includes mig, tig and arc) as they emit a brighter light still. Join as next month as we jump into the dark art of bending tube for our slider project!
(Modified 4WD Magazine issue #52) Metal Fabrication
The Gas Axe

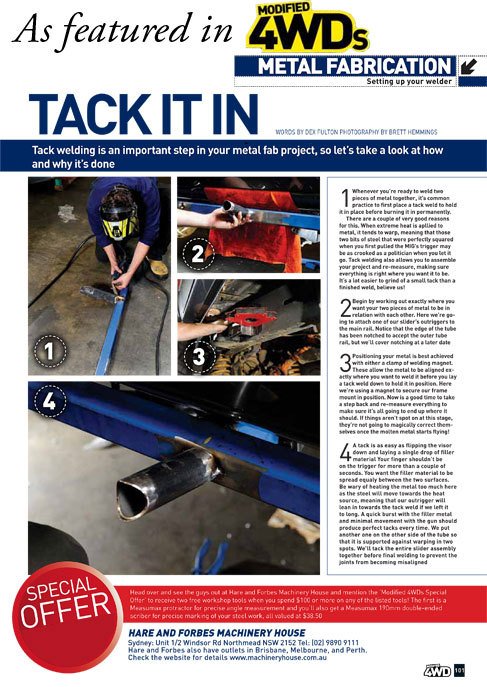

Metal Fabrication

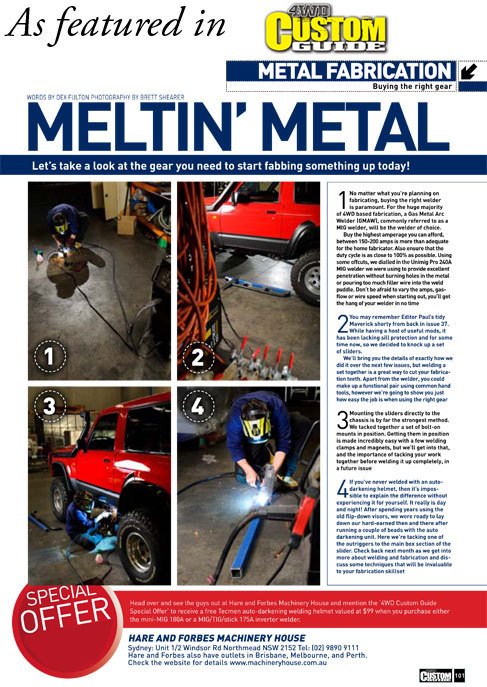

Tackin It In

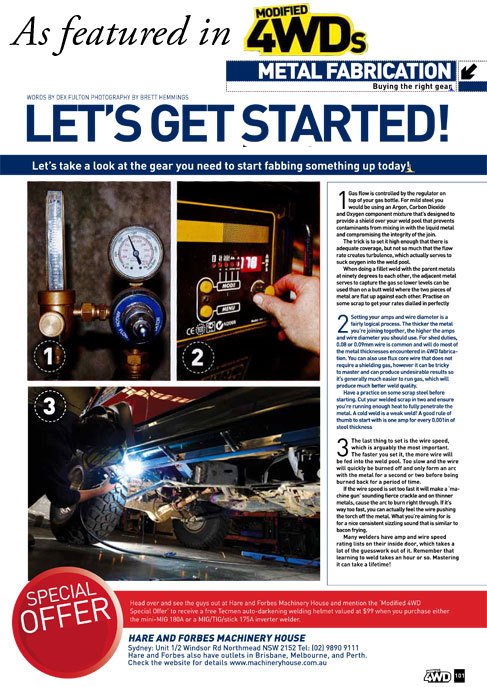

Lets take a look at the gear you need to start fabbing something up today!
1. Gas flow is controlled by the regulator on top of your gas bottle. For mild steel you would be using an Argon, Carbon Dioxide and Oxygen component mixture that’s designed to provide a shield over your weld pool that prevents contaminants from mixing in with the liquid metal and compromising the integrity of the join. The trick is to set it high enough that there is adequate coverage, but not so much that the flow rate creates turbulence, which actually serves to suck oxygen into the weld pool. When doing a fillet weld with the parent metals at ninety degrees to each other, the adjacent metal serves to capture the gas so lower levels can be used than on a butt weld where the two pieces of metal are flat up against each other. Practise on some scrap to get your rates dialled in perfectly.
2. Setting your amps and wire diameter is a fairly logical process. The thicker the metal you’re joining together, the higher the amps and wire diameter you should use. For shed duties, 0.08 or 0.09mm wire is common and will do most of the metal thicknesses encountered in 4WD fabrication. You can also use flux core wire that does not require a shielding gas, however it can be tricky to master and can produce undesirable results so it’s generally much easier to run gas, which will produce much better weld quality. Have a practice on some scrap steel before starting. Cut your welded scrap in two and ensure you’re running enough heat to fully penetrate the metal. A cold weld is a weak weld! A good rule of thumb to start with is one amp for every 0.001in of steel thickness.
3. The last thing to set is the wire speed, which is arguably the most important. The faster you set it, the more wire will be fed into the weld pool. Too slow and the wire will quickly be burned off and only form an arc with the metal for a second or two before being burned back for a period of time. If the wire speed is set too fast it will make a ‘machine gun’ sounding fierce crackle and on thinner metals, cause the arc to burn right through. If it’s way too fast, you can actually feel the wire pushing the torch off the metal. What you’re aiming for is
for a nice consistent sizzling sound that is similar to bacon frying. Many welders have amp and wire speed rating lists on their inside door, which takes a lot of the guesswork out of it. Remember that learning to weld takes an hour or so. Mastering it can take a lifetime!
(Modified 4WD Magazine issue #50) Metal Fabrication
Let's Get Started

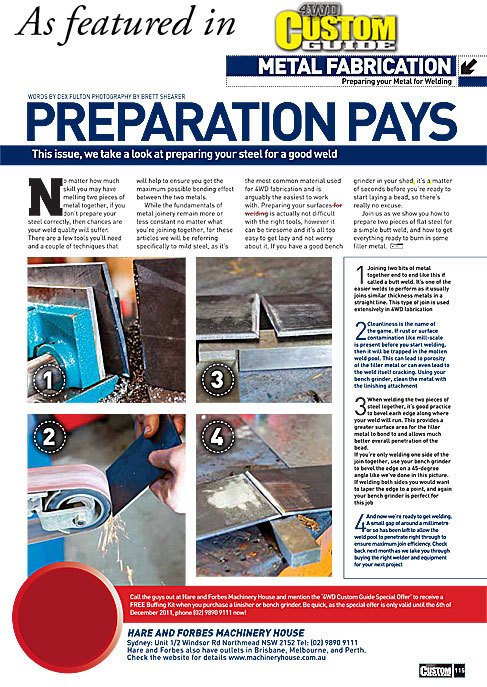

This issue, we take a look at preparing your steel for a good weld.
No matter how much skill you may have melting two pieces of metal together, if you don’t prepare your steel correctly, then chances are your weld quality will suffer. There are a few tools you’ll need and a couple of techniques that will help to ensure you get the maximum possible bonding effect between the two metals. While the fundamentals of metal joinery remain more or less constant no matter what you’re joining together, for these articles we will be referring specifically to mild steel, as it’s the most common material used for 4WD fabrication and is arguably the easiest to work with. Preparing your surfaces for welding is actually not difficult with the right tools, however it can be tiresome and it’s all too easy to get lazy and not worry about it. If you have a good bench grinder in your shed, it’s a matter of seconds before you’re ready to start laying a bead, so there’s really no excuse. Join us as we show you how to prepare two pieces of flat steel for a simple butt weld, and how to get everything ready to burn in some filler metal.
1. Joining two bits of metal together end to end like this if called a butt weld. It’s one of the easier welds to perform as it usually joins similar thickness metals in a straight line. This type of join is used extensively in 4WD fabrication.
2. Cleanliness is the name of the game. If rust or surface contamination like mill-scale is present before you start welding, then it will be trapped in the molten weld pool. This can lead to porosity of the filler metal or can even lead to the weld itself cracking. Using your bench grinder, clean the metal with the linishing attachment.
3. When welding the two pieces of steel together, it’s good practice to bevel each edge along where your weld will run. This provides a greater surface area for the filler metal to bond to and allows much better overall penetration of the bead. If you’re only welding one side of the join together, use your bench grinder to bevel the edge on a 45-degree angle like we’ve done in this picture. If welding both sides you would want to taper the edge to a point, and again your bench grinder is perfect for this job.
4. And now we’re ready to get welding. A small gap of around a millimetre or so has been left to allow the weld pool to penetrate right through to ensure maximum join efficiency. Check back next month as we take you through buying the right welder and equipment for your next project.
(4WD Custom Guide Magazine issue #48) Metal Fabrication
Preparation Pays

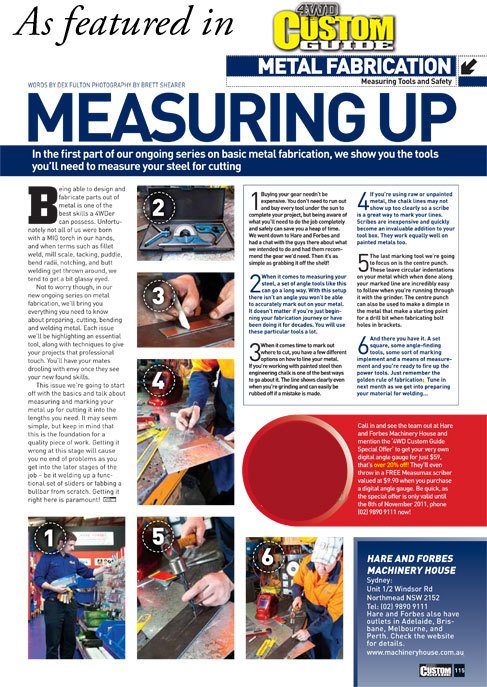

In the first part of our ongoing series on basic metal fabrication, we show you the tools you’ll need to measure your steel for cutting
Being able to design and fabricate parts out of metal is one of the best skills a 4WDer can possess. Unfortunately not all of us were born with a MIG torch in our hands, and when terms such as fillet weld, mill scale, tacking, puddle, bend radii, notching, and butt welding get thrown around, we tend to get a bit glassy eyed. Not to worry though, in our new ongoing series on metal fabrication, we’ll bring you everything you need to know about preparing, cutting, bending and welding metal. Each issue we’ll be highlighting an essential tool, along with techniques to give your projects that professional touch. You’ll have your mates drooling with envy once they see your new found skills. This issue we’re going to start off with the basics and talk about measuring and marking your metal up for cutting it into the lengths you need. It may seem simple, but keep in mind that this is the foundation for a quality piece of work. Getting it wrong at this stage will cause you no end of problems as you get into the later stages of the job – be it welding up a functional set of sliders or fabbing a bullbar from scratch. Getting it right here is paramount!
1. Buying your gear needn’t be expensive. You don’t need to run out and buy every tool under the sun to complete your project, but being aware of what you’ll need to do the job completely and safely can save you a heap of time. We went down to Hare and Forbes and had a chat with the guys there about what we intended to do and had them recommend the gear we’d need. Then it’s as simple as grabbing it off the shelf!
2. When it comes to measuring your steel, a set of angle tools like this can go a long way. With this setup there isn’t an angle you won’t be able to accurately mark out on your metal. It doesn’t matter if you’re just beginning your fabrication journey or have been doing it for decades. You will use these particular tools a lot.
3. When it comes time to mark out where to cut, you have a few different options on how to line your metal. If you’re working with painted steel then engineering chalk is one of the best ways to go about it. The line shows clearly even when you’re grinding and can easily be rubbed off if a mistake is made.
4. If you’re using raw or unpainted metal, the chalk lines may not show up too clearly so a scribe is a great way to mark your lines. Scribes are inexpensive and quickly become an invaluable addition to your tool box. They work equally well on painted metals too.
5. The last marking tool we’re going to focus on is the centre punch. These leave circular indentations on your metal which when done along your marked line are incredibly easy to follow when you’re running through it with the grinder. The centre punch can also be used to make a dimple in the metal that make a starting point for a drill bit when fabricating bolt holes in brackets.
6. And there you have it. A set square, some angle-finding tools, some sort of marking implement and a means of measurement and you’re ready to fire up the power tools. Just remember the golden rule of fabrication: Tune in next month as we get into preparing your material for welding...
(4WD Custom Guide Magazine issue #47) Metal Fabrication
Measure Up

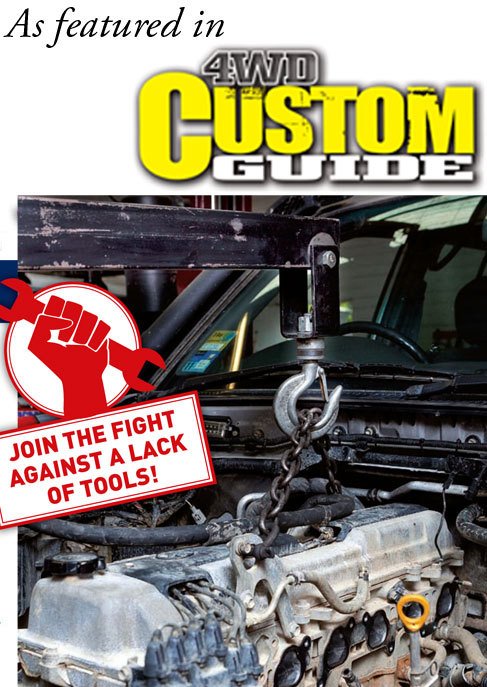

The further you start getting stuck into big tasks in the shed, the more you’re going to have to deal with heavy lifting jobs. There’s only so much you can lift yourself. Ask anyone who has suffered through a back injury; it’s the last thing you’d wish on your worst enemy. Every major component of your 4WD, from your barwork through to your transfer case, has the potential to inflict serious pain if it isn’t supported correctly when being removed or installed.
And that’s why a quality engine hoist isn’t just a good idea for your shed; for those keen on doing the bigger jobs themselves, it’s deadset essential. Of course, an engine hoist comes into its own when removing an engine, but a dead motor’s not the only reason you’d use one. Half the time, it’s easier to disconnect the wiring loom, cooling lines and mounting bolts and pluck the entire motor than it is to remove the gearbox for a clutch swap!
Stick the boom through one of the front doors and the chain down through the transmission tunnel, and you’ve got an easy way of support gearboxes and transfer cases. Think smart about how you attach it to the vehicle, and you can slightly raise a corner of the body at a time to fit bodylift blocks. You can even use the hoist to support barwork whilst removing, fitting or modifying it to suit your vehicle – anyone who has struggled to fit a bullbar will know just how useful that is!
However, like all tools, there’s much more to an engine hoist than what’s apparent at first glance. If there’s one man who knows what it takes to shoulder a serious load, it’s Hare and Forbes’ own Rick Foster. We found him down in his shed, working on his favourite lathe. Here’s his take on engine hoists!
“Where do all these mates come from?” That’s the question you’ll be asking yourself once you own an engine crane. Don’t despair; look it as an investment in beer. My fridge is constantly stocked from my “mates” that want to borrow my engine hoist. As the ads say, the economy runs on beer!
There are a few considerations before purchasing an engine hoist. The first being how heavy is the motor or motor and gearbox combined, as the weight rating on the engine hoist must be greater than the object that you are going to lift. It is important to have a look at the markings on the boom, as most manufacturers market their hoists at the capacity of the boom when fully retracted. As most of us are working on our pride and joy that’s had a suspension lift or body lift (or most likely both), we need to make sure the boom has the required capacity at the height required to remove the engine.
The next decision you need to make will depend on whether you own a compressor. That is, do you buy the hand pump model or the air operated model? I prefer the later as it allows me to stand close to the engine bay and watch as the engine is being lifted.
There are not many options available in an engine hoist, but one of the most useful items I have is an engine tilter. This is a must have item – for around $40, it will save heaps of time when removing an engine. It allows you to shift the centre of gravity on the crane hook, thus tilting the engine to allow it to be manoeuvred out of those tight spaces. It also comes in handy when refitting bullbars. The only other question you need to answer for yourself, is do you buy the fixed or fold up model? That decision will depend on how big your shed is, and how often you intend to use it.
As always, safety is your number one issue – don’t lift more weight than the crane rating. Make sure the legs of the hoist are extended to the correct position. When attaching lifting chains or slings, make sure the fasteners have a tensile strength greater than the weight of the engine. The last thing you want is that new trick engine meeting the concrete with a rather expensive thud! Follow these simple rules and you should fi nd engine removal an uplifting experience.
(4WD Custom Guide Magazine issue #45) Suspended Animation
Engine Hoists

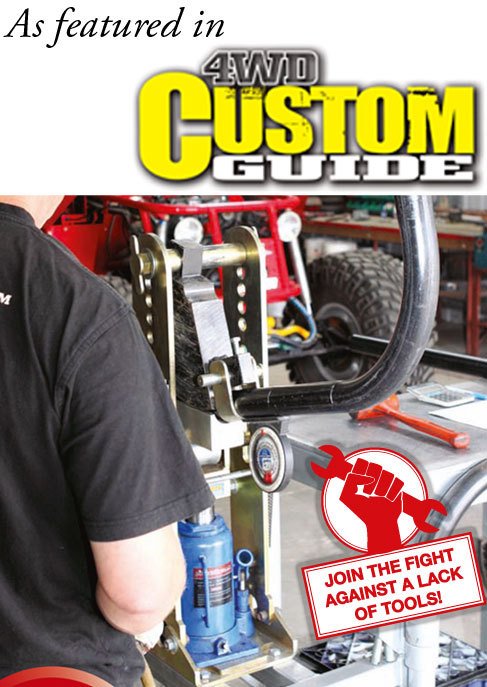

For us as 4WDers, few DIY projects rival building custom barwork. Whether it’s a tube front bar, sliders or even a rear bar, a custom project allows you to create a product tailored to your exact needs and tastes. The fact is though, that an angle grinder and a welder will only get you so far, and barwork joined at 45° and 90° angles will only ever end up looking amateurish. If you’re serious about building barwork, then there’s one piece of Essential Shed Gear that will increase the quality of your job ten-fold – the mighty tube bender!
Essentially, a tube bender uses a set of dies of various shapes, and either a mechanical or hydraulic advantage to allow tube to be formed into neat arcs around those dies. The applications for 4WD use are nearly endless – think beautifully sculpted rock sliders, trick tube bullbars customised to your exact specifications, and rear bars that perfectly follow the lines of your rear quarter panels.
A tube bender is a funny piece of equipment, largely because it’s extremely useful for finding long-lost mates you never knew you had, who ‘just want to knock up a quick pair of sliders’. In all seriousness though, it’s the kind of tool that will make even the most frustrated metal-melter look like a trade-hardened professional boilermaker.
Speaking of professionals, there are few who know metalworking tools better than Hare and Forbes’ own Rick Foster. We caught him in a rare quiet moment (he was changing the wire roll on his MIG) and asked him to spill the beans on what to look for when buying a tube bender. Here’s his take on the subject;
“The biggest question you need to answer before you run out and buy your new best mate magnet is to work out if you are actually trying to bend pipe or tube,” says Rick.
What’s the difference?
“Tube is measured on the outside diameter, pipe is measured by bore size referred to as Nominal bore. A 32mm pipe would have an internal bore of 32mm, whereas a 32mm tube would have an external diameter of 32mm.
Now you know what you are trying to bend, you can make the decision on whether it’s worth investing in a new machine. Pipe benders start from around $200, which usually includes 5-6 pipe formers, which are the important part. To bend the thinner medium wall pipe successfully, the former needs to have a shape that often resemble a cathedral-style roof. You may find the budget models still come with the older style formers, which are round – you can use this type but may find the bend tends to flatten out. If you have this type of bender, don’t despair – aftermarket formers are easy to source, and you can usually purchase the one former you require, not a whole set.
Tube benders on the other hand, are usually considerably more expensive due to the construction of the unit, and most have machined formers. Something to bend 38mm (1.5in) tube will set you back around $950, so you need to have a considerable amount of barwork planned to do before rushing out to purchase one.
The main two methods of bending tube are rotary compression bending or rotary draw bending.
Rotary Compression Bending involves wrapping or wiping the material around a stationary grooved former. Either a formed roller or grooved slide block assists in the control of the material flow.
The outer third of the bend will stretch and the (majority) inner two thirds will compress – hence the term. As a result the material tends to want to wrinkle in the inside of the bend – yet produce less flattening and reduced risk of breaking on the outside of the bend than other methods such as draw bending.
Rotary Draw bending, as its name suggests, involves drawing the material to be bent into a rotating former. With this method, it is the outer two thirds of the material that stretches or elongates, and the minority inner third that compresses. With this method, inner bend wrinkling is less likely to occur in comparison to compression bending.
There is also the advantage of being able to introduce extra tooling such as internal mandrels and wiper dies, adding more control to the fl ow of material. This allows you to bend thinner-walled material on a tighter bend radius.”
(4WD Custom Guide Magazine issue #44) Bending Metal
Tube & Pipe Benders

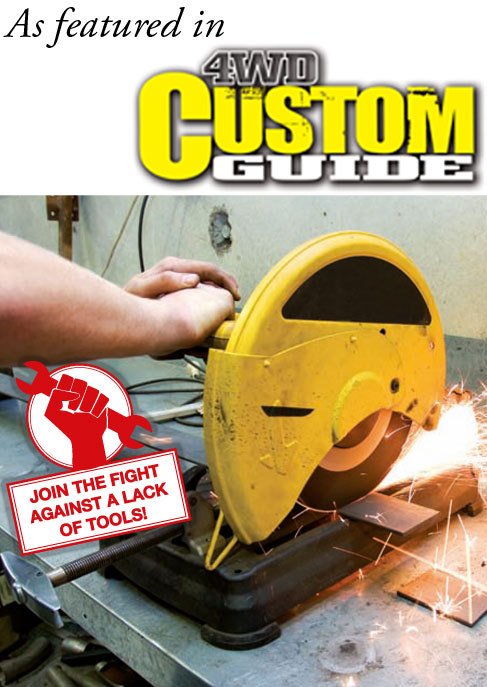

Metal fabrication is nothing short of an art form. The ability to contort, twist, melt, join and cut pieces of tube, SHS, RHS, angle and plate together is – at least to our way of thinking – as highly prized a skill as any.
Fabricators generally fall into three categories: the ‘oh man, what have I done now?’ category (that’s us), the guys and girls who can competently stick pieces of steel together and cut them apart again, and the masters of metal with the hands of heart surgeons. For these chosen ones, the ability to craft accessories like tube barwork is born most likely from a lifetime in the trade and plenty of hard-earned experience.
For us mere mortals, however, all is not lost. Metal fabrication is an exercise that’s made substantially easier with the correct selection of tools, and by that we don’t mean choosing which mates you let raid your beer fridge!
While an angle grinder is a versatile piece of equipment that will indeed get the job done, it’s not exactly easy to control, and it doesn’t always lead to a high quality job. When you’re hanging off the end of a grinder, ‘precision’ isn’t a word you’re concerned about. That’s where the mighty cut-off saw in its many forms comes into play.
Cut-off saws aren’t rocket science. They’re big, circular blades that are fixed into position via a frame and base. The blades are almost always interchangeable, and are drawn down to the job you’re cutting on a spring-loaded hinge. Via smart use of clamps and setting up of the job, you can guarantee the perfect cut through any metal, regardless of the angle required. It’s quick, it’s clean, and it’s a whole lot safer and more accurate than trying to eyeball the dodgy texta mark you made on that 42NB tube while you hold it with your feet. What’s not to like?
Universally useful, the best part is being able to swap out the discs for various uses. Fit an abrasive cutting wheel to grind your way through metal, or swap to a masonry blade to cut bricks and pavers. Discs are available for various grades of wood too, which makes projects like a custom drawer system infinitely quicker and more accurate.
If there’s ever a bloke who knows what it takes for a saw to make the cut, then it’s Hare and Forbes’ Rick Foster. We took five with him this month to talk shop, and get his opinion on what you should be looking for in an electric cut-off saw. Don’t forget to check out this month’s insane deal to help fill your shed with the best tools and score a freebie in the process!
“The things I look for in a cut-off saw are fairly simple. Again, I go with the power option – the bigger the motor the better! Next, I take a close look at how easy it is to change the blade. I like a machine that has a spindle lock so that you only need one tool to remove the blade, preferably one that’s easy to get hold of such as an open-ender.
“Next on my list would be the vice system. Does it have a quick-action nut so that you’re not there for half a day winding when you change material size? If another thing that you do quite regularly is cut different angles, the scale on the vice must be well marked and quick to operate.
“The biggest consideration to be made when using a cut-off saw is the environment in which it’s going to be used. Working in the shed and around 4WDs can turn out to be quite dangerous. How many of us have been grinding away only to look up and find that bit of oil-soaked rag we left on the bench beginning to smoulder? These machines throw out some serious sparks, so you need to take care when using them.
“You only need to think back to the recent fires in Western Australia started by a bloke fixing his trailer with an angle grinder to be reminded of how a simple task can turn into a disaster. If you need to work in a confined space where sparks can be a problem, you might want to consider an alternative machine such as a metal-cutting bandsaw or cold saw.”
(4WD Custom Guide Magazine issue #42) Saw Winner
Cut Off Saws

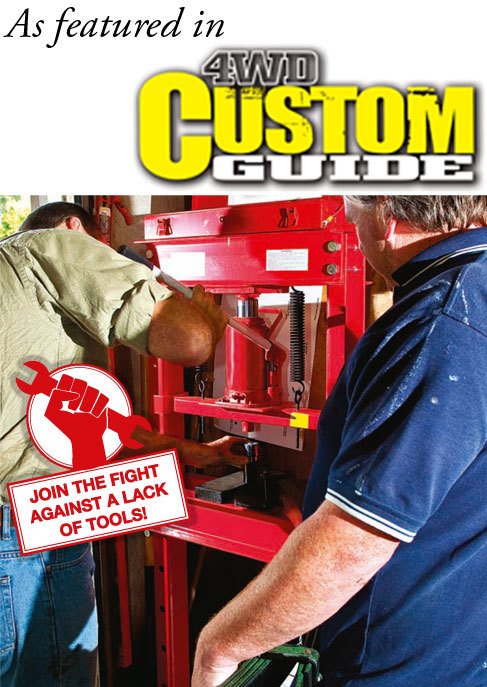

We’ve all been there before – bodging up jobs at 1.30am on the morning that you’re supposed to leave on the trip. Maybe it’s the worn suspension bushes you only picked up on during the pre-trip inspection, or your wheel bearings started that deathly groan, or any number of other tricky, precision jobs.
So you use whatever cutting tools you’ve got handy to remove the old stuff, no doubt damaging a few threads or surfaces along the way. Then comes the job of fitting the new components – away goes the grinder and reciprocating saw, and out comes the B.F.H. And all’s going well, until tiredness kicks in, and that next swing misses its mark, crashes down on the outer bearing race and shatters it into a thousand pieces. Guess that trip might have to wait a while...
A proper hydraulic press is another of those tools that you wonder how you ever did without, once you’ve had ready access to one. They’re multi-use pieces of equipment that will allow you to work much slower and with a much greater degree of precision, at the same time as reducing the majority of the physical effort required for the job. They do so by using the physics involved in squeezing hydraulic fluid from one chamber to another, producing a mechanical advantage.
There are essentially two types of hydraulic presses – manual ones that use lever-operated bottle jacks in the same fashion as the one you keep in the back of your 4WD, and powered presses that use an electric motor to pressurise the hydraulic fluid. Few shed experiences rival using a full electric press for jobs like sheetmetal bending and breaking, but for the average home DIY 4WDer, a manually operated press is a deadset godsend.
There are multiple uses for a hydraulic press in the average shed. The obvious ones are removing and replacing any bearings or bushes – especially radius arm bushes, which are nearly impossible to use otherwise. With the use of a pressbrake you can bend sheetmetal for custom drawers or other projects, and even with the right dies form dimple die holes in the sheetmetal for your sliders. At a pinch, they can be used to straight bent arms, and you can even use them to perforate sheetmetal, or just to convince your mate to return your good 1/2in socket driver.
A man who’s up-to-date with all the most pressing issues is Hare and Forbes’ own Rick Foster. We managed to catch him in the middle of welding up some pieces on his latest project, and got the low-down on his hot tips for selecting and using your own hydraulic press. Make sure you give him a ring too, because he’s sorted a beaut deal if you want your own!
- “Talk about putting me under the pressure Brendan! Presses are a relatively simple device that don’t come with too many bells and whistles. One of the important features I look for is a frame that has open sides. This allows you put longer items through it, very handy when you want to put a bend in something long or straighten something already bent.”
- “Another nice feature I like to have is a pressure gauge. This gives you an idea of just how much pressure you are applying on your job, not that you will take much notice of it if you really need to remove a stubborn bearing etc.”
- “If my budget would allow it, I’d shell out my hard-earned for a press which has a moveable head that can be offset, and a ram with a screw thread operated by a hand wheel which allows you to bring the ram down onto the job. This makes the positioning of the job really easy, but as they say beggars can’t be choosers. All in all any press is better than no press at all!”
(4WD Custom Guide Magazine issue #41) Pressing Issue
Presses

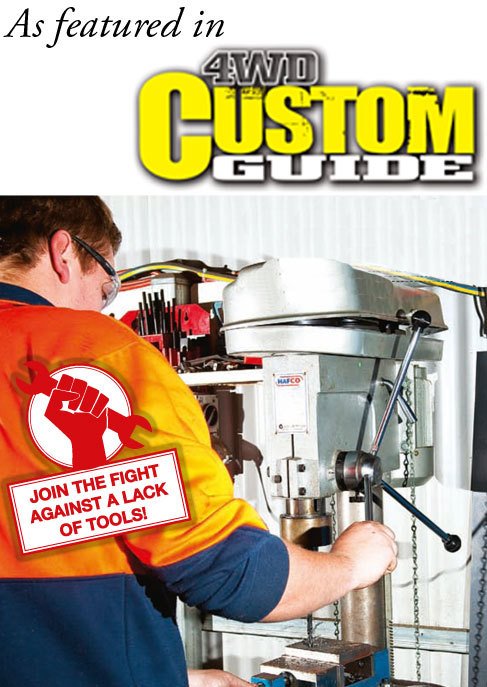

There are tools that make the job easier, and there are tools that produce a higher quality job. And then in some cases, there are tools that do both, which is where this month’s piece of Essential Shed Gear comes into the picture.
Sure, a hand drill will get you a fair way when it comes to metal or wood fabrication projects. However, the biggest limitation that a hand drill has is the loose nut on the end of the handle. No matter how good an eye or strong a hand you’ve got, it’s next to impossible to drill a perfectly straight hole without any external support. That’s not a slight on anyone’s skills – that’s the plain truth. For any drilling jobs that require a measure of precision, there’s only one real solution – a drill press.
If you don’t think too hard about it, it’s all too easy to lump a drill press into the ‘occasional use’ basket. But in reality, a drill press is a piece of equipment that’ll you’ll keep reaching for time and time again. Whether it’s drilling holes in sheet metal so you can spot-weld, quickly knocking out a whole heap of pilot holes around the edges of the plywood you’re building your drawers out of, or notching the end of a piece of tube for your custom bar work, a drill press will ensure a high-quality result every time.
But the benefits don’t just stop at the overall quality of a job. Using a drill press is a lot safer than using a hand drill, because once the material is clamped in place, it’d take something going drastically wrong for it to move. Drill presses also drastically extend the life of your drill bits over a hand drill, and especially so when drilling through heavier-gauge steel.
If there was ever a bloke who knows the drill (pun intended), then it’s Hare and Forbes’ own dedicated, certified tool man Rick Foster. We dragged him away from his latest workshop creation to get his hot tips on what you should know about buying and using a drill press. -
Like anything in our game, the bigger, the stronger and the more horsepower the better! These same qualities apply to a drill press. I would recommend a minimum motor size of 3/4hp (550W). This would normally drive a stepped pulley system giving 12-16 speeds. Couple all this up to a good quality chuck and you have my ideal drilling machine! -
Look for a decent depth stop – there is nothing as frustrating as drilling a hole in a part worth a couple of hundred hard-earned bucks to find you have gone a couple of millimetres too deep.
- Another must-have is a wind-up work table. This will take the hard work out of the set-up, and most manufacturers have this as a standard feature now days.
- Once you have your new machine, do yourself a favour and set it up so it’s ready to use at the drop of a hat. Hang a pair of safety glasses nearby and keep some cutting fluid in a squirt bottle. Mount a speed chart next to your drill, so it’s easy to see the correct speed for the material you are drilling and the diameter of the drill. This way your drill bits will stay sharper and last longer. One of the most common ways to damage a drill bit is to run it at a higher than recommended speed.
- I don’t want to be boring (pun intended), but safety is paramount when using a drill, so before you start to drill make sure you are wearing your safety glasses. Have the job securely clamped into a vice or onto the table. It’s amazing the force that can come from a 6mm drill bit when it jams. If you are holding it by hand and there’s a sharp edge, it’ll probably mean a trip to the doctors for some stitches!
(4WD Custom Guide Magazine issue #40) Drill Formation
Drill Machines

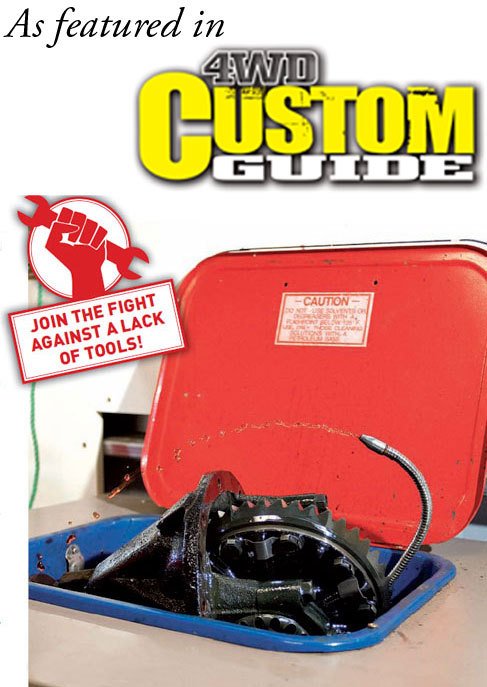

Hands up if – like us – you get some sort of strange kick out of re-fitting a part of your 4WD and watching it go back into place perfectly. Yep, thought so! There’s something strangely cathartic about removing a part, disassembling it, thoroughly cleaning and inspecting it and putting it all back together – or maybe we’re just weird.
Either way, fitting an old dirty part without properly going over it to check for damage is akin to asking for trouble. It’s that hairline crack in the body, or slightly distorted thread, or any number of other problems that can be hidden by a layer of track grime and grease that will inevitably come back to bite you on the arse when you least expect it. That’s why it’s so essential to properly clean everything before it gets refitted – and that’s where this month’s bit of Essential Shed Gear comes into the picture!
Sure, you can fill up an old bucket with the rest of that two-stroke sitting in the mower jerry can, and use an old scrubbing brush to get the grease off your axles, CVs and hubs. And then you break your back hunching down to use it, before inevitably spilling the entire contents over the floor, the tent and the dog. Oh well, saves emptying the bucket...
Or you could do it the smart way, and invest in a proper parts washer. These things are beaut – simply fill the solvent reservoir, flick the switch and you get a steady stream of the good stuff out of the tap and over your parts. Fill the tank and you can let parts soak overnight, before giving them a proper scrub, or just use the solvent to wash away the grease as you go. A bit of a towel off to dry things up, and you’ve got nice, shiny parts ready to re-grease, re-oil, re-thread lock and re-fit!
We caught up with Hare and Forbes’ very own toolman Rick Foster recently, to get his take on parts washers, with instructions to limit it to a maximum of three bad puns. Here’s what he had to say...
“Choosing a parts washer doesn’t seem like a hard decision, but there are a few things you should consider. Now ,you won’t hear me say this too often but this is one of those times where bigger is not always better. Reason being, the bigger the parts washer, the more it costs to fill and the more room you need to store it. So before you run out and buy the biggest unit you can get your hands on, give some thought to how much use you are going to give it and how big the parts you usually want to scrub are. If you are regularly dismantling engines then you should probably go for one of the larger units on the market but remember they also take up precious room in the workshop.
Another thing to think about is the type of cleaning fluid you are going to use – solvent-based or water-based. Both have their advantages and disadvantages. Solvent-based cleaners tend to work better, but they can also be quite harsh on your skin. The other point is that they aren’t suitable for use in a lot of parts washers on the market that have a plastic pump. I made this mistake with my first washer – I took it home, threw the instructions in the bin (who needs them?) and proceeded to fill the unit with some mower fuel. It worked okay the first time but when I went back the second wouldn’t work so I removed the cover of the pump, only to find it had become a piece of plastic mush. It was only then I dug the instructions out of the bin and read the bit that said “DO NOT USE PETROL“. So before you go to fill your new washer up with that drum of petrol in the corner, check the manufacturer’s recommended cleaning solutions.
Water-based cleaners don’t quite work as well but they have quite a few advantages. The first is that they are not flammable, and the second is that oil floats on water. When you get a layer of oil on the top of the cleaning solution, grab some paper towel from the kitchen and lay it on top. The oil will soak into the paper towel, leaving the fluid cleaner for reuse. Thirdly, water-based cleaners are more cost-effective .You can buy 5L for around $40, and this will make 50L of cleaning solution. The cost of filling it with kero or diesel would be around double.
One thing I do know is once you own a parts washer you’ll be amazed at how much you use it!”
(4WD Custom Guide Magazine issue #43) Its Time to Come Clean
Parts Washers
