HAFCOBG-12

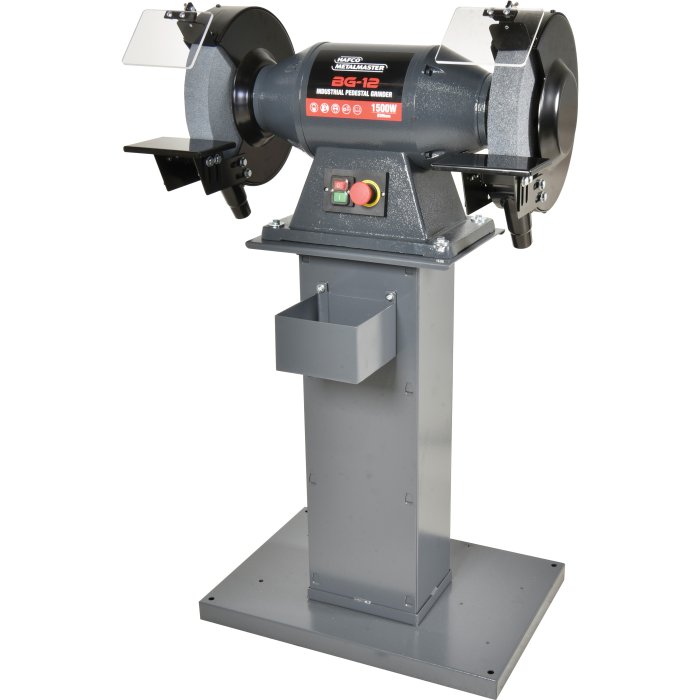

Industrial Pedestal Grinder with Pedestal Stand
  • 1 of 5
    G164
  • 2 of 5

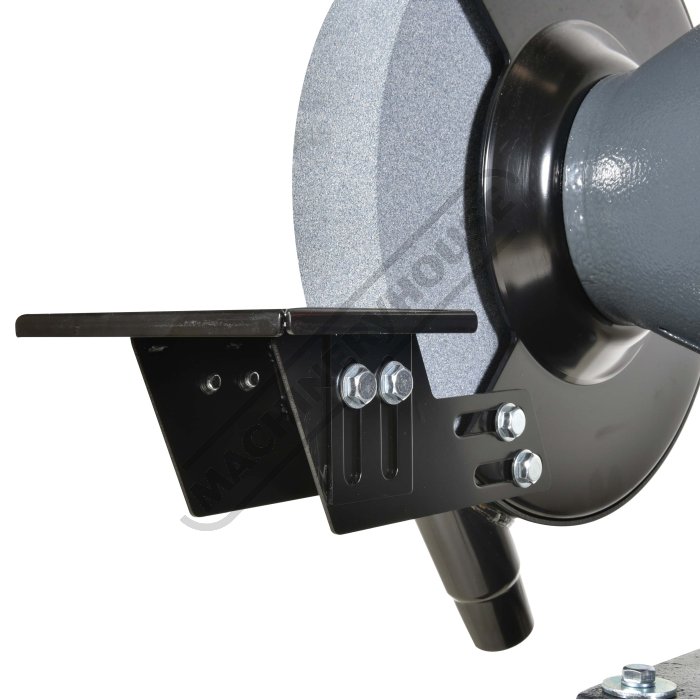

    Tool Rest and Safety Eye Shields
  • 3 of 5
    Side View
  • 4 of 5

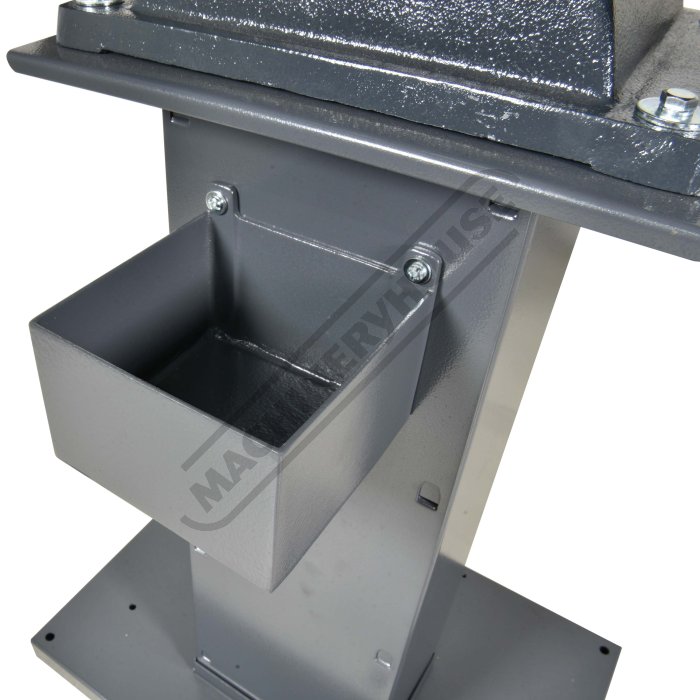

    Cooling Tray
  • 5 of 5

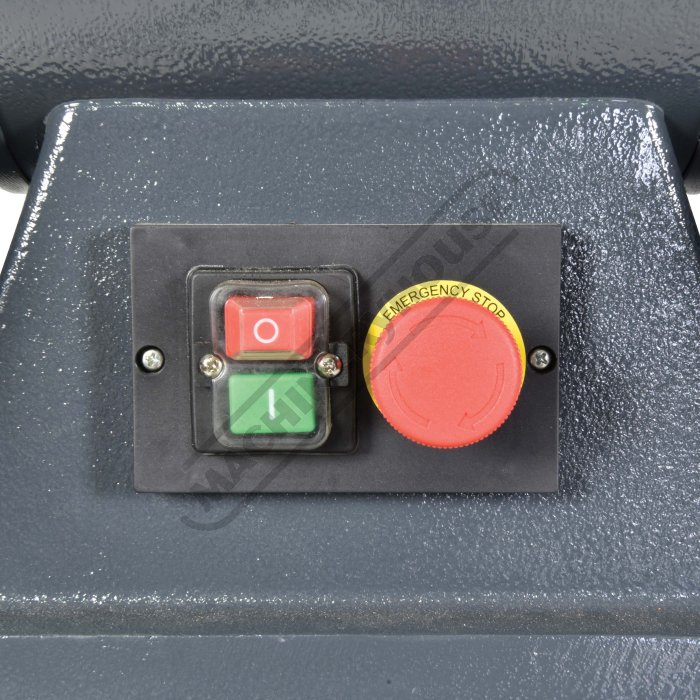

    Switch
Order Code: G164
BG-12 - Industrial Pedestal Grinder with Pedestal Stand (415V)

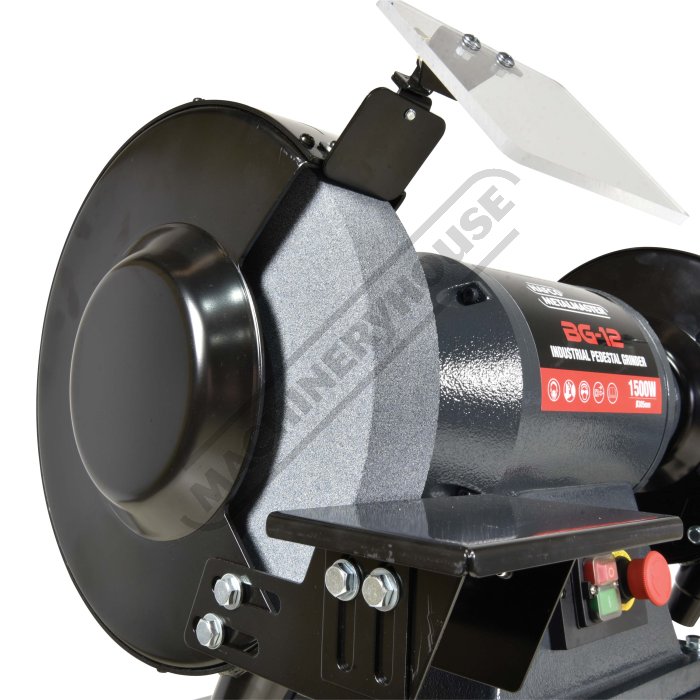

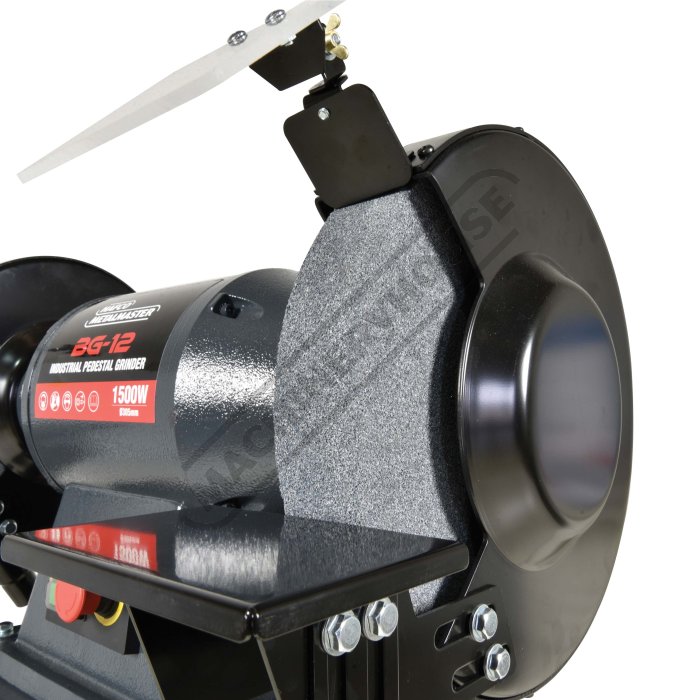

Ø305mm Fine & Coarse Wheels
HAFCO
ORDER CODE
G164
MODEL
BG-12
Type
Pedestal
Brand
Hafco MetalMaster
Grinding Wheel Diameter (mm)
305
Grinding Wheel Width (mm)
50
Wheel Grade Type
Fine & Coarse
Spindle Shaft Thread Size
1" x 8TPI
Motor Power (kW / hp)
2.2 / 3
Voltage / Amperage (V / amp)
415
Nett Weight (kg)
90
Description
Manufactured in Taiwan

BG-12 HEAVY DUTY GRINDER

305mm 3HP 415V
Features
  • Cast iron body & base
  • Heavy duty tool rest
  • Adjustable tool rests
  • Adjustable eye shields
  • Includes dust extraction outlets, safety eye shields & stand
  • 1" x 8TPI spindle shaft
Includes
  • Stand
Product Brochure

Instruction Manual
9.24 MB
