CMGCWTC3971E
Electric Motor
  • 1 of 1
    E098
Order Code: E098

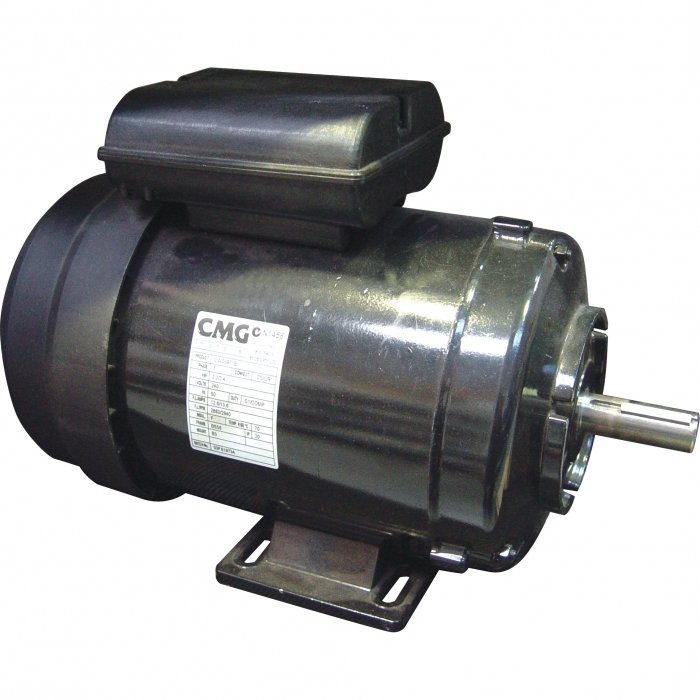

CWTC3971E - Electric Motor (240V)
3.2HP
2800rpm
CMG
ORDER CODE
E098
Model
CWTC3971E
Motor Power
3.2HP
Speed
2800rpm
Shaft Diameter
ø3/4"
Voltage
240V
Amps Required
15A
Reversible Motor
Type
Fan Cooled
Power Connection
Lead only
Description
The popular CMG General Purpose series motor is a strong performer, ideally suited for most general applications. The series is designed to suit domestic, commercial and industrial applications. With no wiring necessary, it is simple and convenient to use.
Features
  • High starting torque CSCR winding design
  • TEFC cooling
  • IP44 protection against dust and water ingress
  • Heavy Duty rolled steel case with B56 base
  • Manual reset thermal overload protection
  • 240V single phase with 2 metre flex & plug standard
  • Reversible motor
  • Foot mounted

Product Brochure
