THIS PRODUCT IS NO LONGER AVAILABLE. Click to see similar products > Drilling Machines - Magnetic Base
HAFCOHF-30A

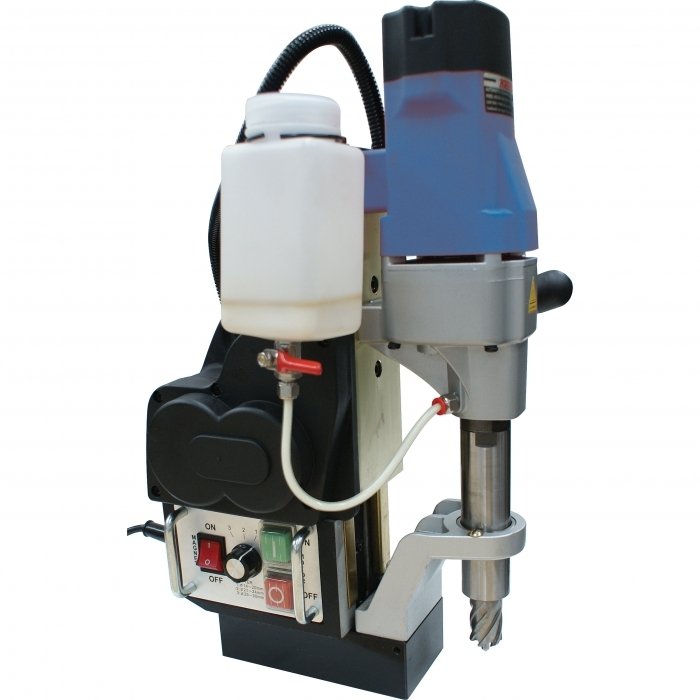

Portable Magnetic Drill
  • 1 of 4
    D9505
  • 2 of 4
    Semi Auto Feed Switching
  • 3 of 4
    Right Side View
  • 4 of 4
    Durable Plastic Case
Order Code: D9505
HF-30A - Portable Magnetic Drill (240V)
Ø35mm Drill Capacity
Automatic Feed
HAFCO
ORDER CODE
D9505
Model
HF-30A
Feed
Automatic
Drilling Capacity Range - Manual
12-35mm
Drilling Capacity Range - Auto Feed
12-30mm
Maximum Thickness
50mm
Suits Cutter Shank Size
19mm
No. of Drilling Speeds
1
Full Load Drilling Speeds
350rpm
No Load Drilling Speeds
620rpm
Magnetic Holding Power
1529kg/f
Motor Power
1100W
Motor Voltage
240V
Weight (Nett)
14kg
Description
Manufactured in Taiwan

Hafco HF-30A features automatic feed for where repetitive productivity is required

On-site hole cutting in steel plates, H-Beams shaped bars, framework, ship building, bridge construction and repair, steel reinforcements, and many other metal working and construction jobs.

NOTE: Shown with optional broach cutter
Features
  • Compact design with heavy duty magnet
  • Drills up to 30mm diameter through 50mm plate in the automatic feed mode, and 35mm diameter through 50mm plate with manual feed
  • Sturdy feed handles
  • 3 speed feed motor to accommodate different size cutters
  • CE approved

  • NOTE: HSS jobber drills with optional drill chuck can only be used in manual feed

Includes
  • Coolant tank kit
  • Safety chain
  • Blow mould plastic case
