EASSONGS11

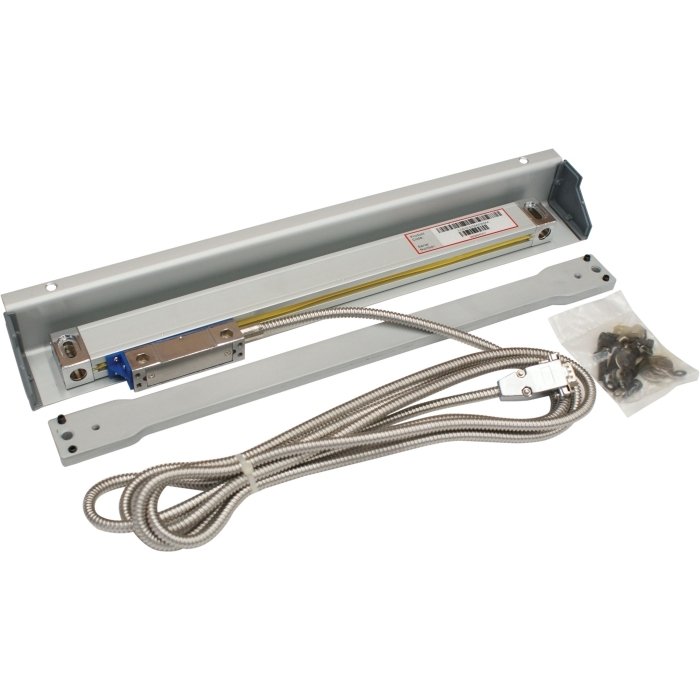

Easson DRO Scales
  • 1 of 4
    D763
  • 2 of 4
    DSub9 Male Plug
  • 3 of 4
    Dsub9 Wiring Diagram
  • 4 of 4
    DIY Installation
Order Code: D763
GS11 - Easson DRO Scales
300mm Standard
1µm
Only Available From: Sydney, Brisbane, Perth
Additional Freight Charges May Apply
EASSON
On Special - While Stocks Last
ex GST
inc GST
$299.00
$328.90
$220.00
$242.00

ORDER CODE
D763
Model
GS11
Type
High Accuracy
Travel
300mm
Scale Accuracy
1µm
Cable Length
3 Metre
Width x Height (W x H)
21.5 x 34mm
Overall Length (L)
447mm
Description
Easson GS series Glass Grating Linear Transducer: EASSON - Always committed to Quality, Technology & Innovation
Features
  • DOUBLE SEAL DESIGNED SCALES:
  • The plastic seals of the transducer use an innovative material to offer superior oil resistance, high elastic recovery properties and durability, carefully designed lip geometry offer low slide resistance.

  • 100% LASER CALIBRATION:
  • All glass grating transducers are individually inspected and calibrated by our in-house laser calibrator to ensure accuracy complies 100% with the specifications.

  • ADVANCED OPTICAL MEASURING SYSTEM:
  • The slide carrier of the GS series scales, use a five bearing design for optical grating linear transducer which has been proven as the most reliable system design in today's market.
  • The glass grating slide-ways are lapped, and JIS standard P5 grade bearings are used to achieve smooth and accurate movement and long working life.

  • D.I.Y. INSTALLATION:
  • An easy-to-follow D.I.Y. Installation Manual is supplied with each system, complete with illustrations and mounting brackets.
Product Brochure

Reader Head Replacement
133.87 KB
Instruction Manual
3.28 MB
  • GS11 (D763)
ORDER CODE
Model
Type
Travel
Scale Accuracy
Cable Length
Backing Support Plate
Width x Height (W x H)
Overall Length (L)
Price (ex GST)
Price (inc GST)


Spare Parts Ordering
To assist you in ordering your Spare Part to suit Hafco Machinery simply select from the list below, if your part is not listed below please view “Parts List PDF” to identify your part required (if provided) then simply click the "SEND PARTS REQUEST" Button and fill in the required details. Our Spare Parts and Service Department will contact you as quickly as possible. If you need further assistance please contact us.
