EASSONGS10
Easson DRO Scales
  • 1 of 6
    D727
  • 2 of 6
    DSub9 Male Plug
  • 3 of 6
    Dsub9 Wiring Diagram
  • 4 of 6
    DIY Installation
  • 5 of 6
    Parts
  • 6 of 6
    Close Up
Order Code: D727

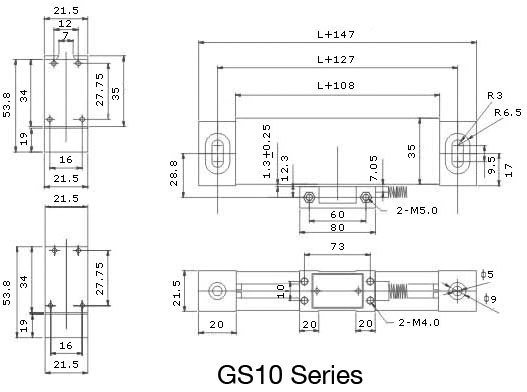

GS10 - Easson DRO Scales
550mm Standard
5µm
EASSON
ORDER CODE
D727
Model
GS10
Type
Standard
Travel
550mm
Scale Accuracy
5µm
Cable Length
3 Metre

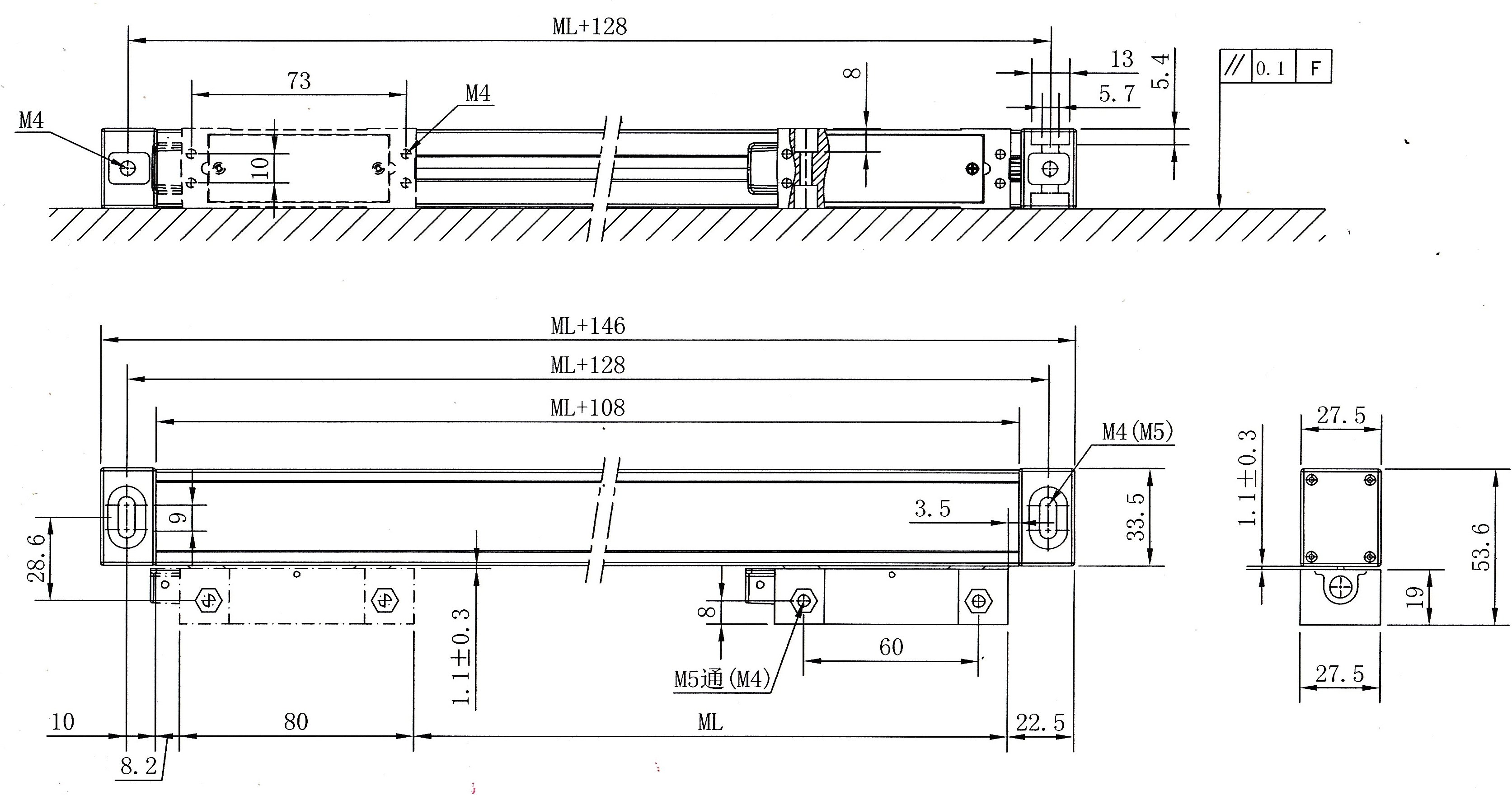

Width x Height (W x H)
21.5 x 34mm
Overall Length (L)
697mm
Description
Easson GS series Glass Grating Linear Transducer: EASSON - Always committed to Quality, Technology & Innovation
Features
  • DOUBLE SEAL DESIGNED SCALES:
  • The plastic seals of the transducer use an innovative material to offer superior oil resistance, high elastic recovery properties and durability, carefully designed lip geometry offer low slide resistance.

  • 100% LASER CALIBRATION:
  • All glass grating transducers are individually inspected and calibrated by our in-house laser calibrator to ensure accuracy complies 100% with the specifications.

  • ADVANCED OPTICAL MEASURING SYSTEM:
  • The slide carrier of the GS series scales, use a five bearing design for optical grating linear transducer which has been proven as the most reliable system design in today's market.
  • The glass grating slide-ways are lapped, and JIS standard P5 grade bearings are used to achieve smooth and accurate movement and long working life.

  • D.I.Y. INSTALLATION:
  • An easy-to-follow D.I.Y. Installation Manual is supplied with each system, complete with illustrations and mounting brackets.

Product Brochure

Reader Head Replacement
133.87 KB
Instruction Manual
3.09 MB
Enter your postcode to estimate the delivery fee for this product.
Postcode:
Freight is estimated from the nearest branch that has stock available.
Our delivery contractors operate Monday to Friday only, excluding public holidays.
All orders are processed in order of payment receipt.
Our aim is to despatch your goods as quickly as possible, however despatch times may take longer than our standard 3 to 5 day service during peak periods or according to stock levels, if this is the case we will advise you before processing your order.
More questions? Visit our delivery information page

  • GS10 (D727)
ORDER CODE
Model
Type
Travel
Scale Accuracy
Cable Length
Backing Support Plate
Width x Height (W x H)
Overall Length (L)
Price (ex GST)
Price (inc GST)


Spare Parts Ordering
To assist you in ordering your Spare Part to suit Hafco Machinery simply select from the list below, if your part is not listed below please view “Parts List PDF” to identify your part required (if provided) then simply click the "SEND PARTS REQUEST" Button and fill in the required details. Our Spare Parts and Service Department will contact you as quickly as possible. If you need further assistance please contact us.
