THIS PRODUCT IS NO LONGER AVAILABLE. Click to see recommended item > D181A (DMF-42)
Pedestal Geared & Tilting Head Mill - Drill
  • 1 of 19
  • 2 of 19
    Right View
  • 3 of 19
    Chuck Guard
  • 4 of 19
    Head Full View
  • 5 of 19
    Front Controls
  • 6 of 19
    Drawbar for Milling
  • 7 of 19
    Gear Selection Levers
  • 8 of 19
    6 Drill Speeds from 75 to 1600rpm
  • 9 of 19
    Emergency Stop Switch and Overload Protection
  • 10 of 19
    Quill Handle
  • 11 of 19
    Swivel Head
  • 12 of 19
    Rack and Pinion Wind Up Table
  • 13 of 19
    Concertina Slideway Cover
  • 14 of 19
    T Slotted Base
  • 15 of 19
    T Slotted Work Table
  • 16 of 19
    Table Longitudal Travel Handle
  • 17 of 19
    Drill Chuck
  • 18 of 19
    Rack and Pinion Wind Up Table
  • 19 of 19
Order Code: D182A

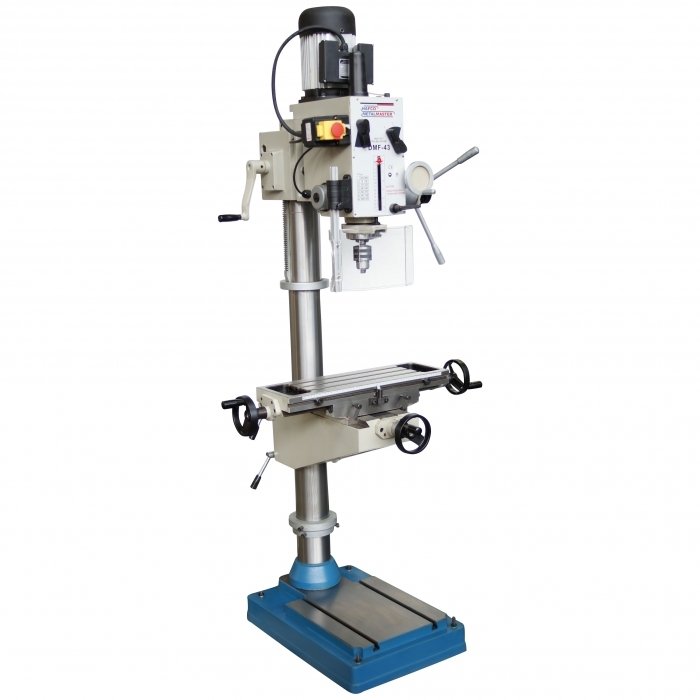

DMF-43 - Pedestal Geared & Tilting Head Mill - Drill (240V)
3MT x 31.5mm Drilling Capacity
(X) 365mm (Y) 240mm (Z) 780mm
Drilling Capacity
Spindle Taper
Spindle Travel
Throat Depth
Quill Diameter
Column Diameter
Spindle To Table
Spindle To Base
Table Type
Rectangle, X & Y-Axis
Table Size
600 x 190mm
T-Slot Size
Spindle Speed Steps
Spindle Speed Range
Motor Power
1.1kW / 1.5hp
Full Height
Weight (Nett)
  • Ideal for home or light industrial workshop use
  • Geared head drill & mill machine with 3 morse taper spindle
  • 6 drilling speeds from 75-1600rpm
  • 1.1kW 240V motor
  • Micro down feed adjustment
  • Tilting head ±90º
  • Milling table travels 365 x 240mm
  • Swivel safety drilling chuck guard
  • Emergency stop switch and overload protection
  • Adjustable accurate depth setting for increased productivity
  • Rack and pinion wind-up table
  • Rack and pinion wind-up drill head
  • Thick walled column ensuring greater rigidity
  • Concertina slide way cover on y axis
  • Adjustable gibs on table
  • 12mm T slotted work table and base

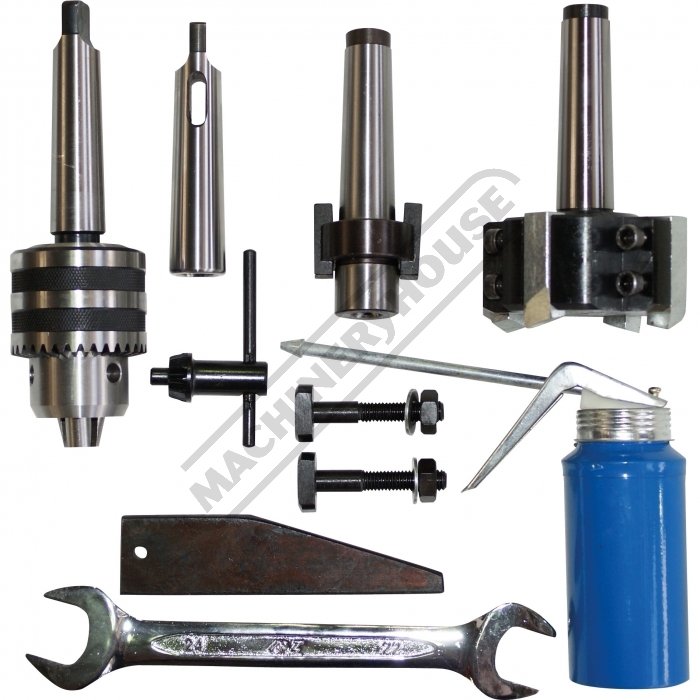

  • Includes drawbar for milling
  • Milling cutter
  • 16mm keyed drill chuck and arbor
  • Chuck key to suit
  • Drill drift tool to remove drill chuck or taper shank drills
  • Safety cutter guard
Product Brochure
Instruction Manual & Parts List
888.85 KB
Spare Parts Ordering
To assist you in ordering your spare part quicker than ever before, we have listed our most common spare parts to suit our Hafco Machinery for purchase online. Just choose between the 2 options outlined below, to find exactly what you are looking for. If you need further assistance please contact us.
Option 1
Browse through the "Common Spare Parts" tab below . Once you have identified your part, you can add it to your cart by clicking on the "+ ADD TO CART" button. If you wish to add multiples of this part you can either click the "+ ADD TO CART" button as many times as you like or click on the "VIEW CART" button and change the order quantity, prior to completing your order.
Option 2
If your part is NOT listed in the "Common Spare Parts" tab below , click the "MORE INFO" button to complete the "Spare Parts Enquiry Form".
This will provide you with the option to email your spare part enquiry direct to our Spare Parts and Service Department, or if you wish, you can download a printable version of this enquiry form which will include a copy of the Parts List to suit this machine (if available). Further instructions for the return email address or fax number of this printable form is provided on the document for your convenience.
NOTE: Please remember to clearly identify your part on the included parts diagram if necessary so that we can respond as quickly as possible with a price and availability for the part(s) you require.
