THIS PRODUCT IS NO LONGER AVAILABLE. Click to see recommended item > D181A (DMF-42)
HAFCO METALMASTERDMF-42

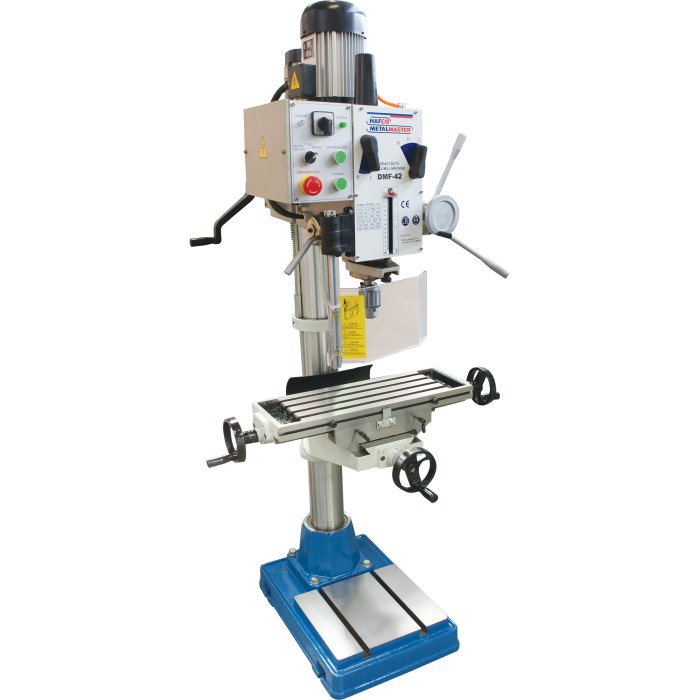

Pedestal Mill Drill - Geared & Tilting Head
  • 1 of 17
    D181
  • 2 of 17
    12 Drilling Speeds from 95 3200rpm
  • 3 of 17
    Gear Selection Levers
  • 4 of 17
    Drawbar for Milling
  • 5 of 17
    Emergency Stop Switch and Overload Protection and Tapping Function
  • 6 of 17
    Front Controls
  • 7 of 17
    Swivel Safety Drilling Chuck Guard
  • 8 of 17
    Adjustable Accurate Depth Setting For Increased Productivity
  • 9 of 17
    Quill Handle
  • 10 of 17
    Rack and Pinion Wind Up Drill Head
  • 11 of 17
    Swivel Head
  • 12 of 17
    Table Cross Travel Handle
  • 13 of 17
    Table Longitudinal Travel Handle
  • 14 of 17
    T Slotted Base
  • 15 of 17
    Rack and Pinion Wind Up Table
  • 16 of 17
    T Slotted Work Table
  • 17 of 17
    Included Parts
Order Code: D181
DMF-42 - Pedestal Mill Drill - Geared & Tilting Head (415V)
(X) 370mm (Y) 175mm (Z) 780mm
Includes Tapping Function
HAFCO METALMASTER
ORDER CODE
D181
Model
DMF-42
Digital Readout
Optional
Type
Vertical
Table Size
585 x 190mm
Column Type
Ø115mm
Spindle Taper - Vertical
3MT
Longitudinal Travel (X-Axis)
370mm
Cross Travel (Y-Axis)
175mm
Vertical Travel (Z-Axis)
780mm
Type of Slides
Dovetail
Spindle to Table
780mm
Quill Travel / Diameter
120mm / 75mm
Throat Depth (max.)
250mm
Tilting Head (Left ~ Right)
±90º
Tilting Head (Forward ~ Back)
Fixed
Drilling Capacity
31.5mm
End Milling Capacity
28mm
Face Milling Capacity
80mm
Power Feed - Longitudinal (X-Axis)
Optional
Table T-Slot Size
14mm
Work Table Load Capacity
55kg
Spindle Speeds Vertical (steps/rpm)
12 (95-3200rpm)
Motor Power - Vertical
1.1kW / 1.5hp
Motor Voltage
415V
Overall Height
2000mm
Weight (nett)
350kg
Features
  • Ideal for home or light industrial workshop use
  • Geared head drill & mill machine with 3 morse taper spindle
  • 12 drilling speeds from 95-3200rpm
  • Tapping function M12 capacity
  • Micro down feed adjustment
  • Mill head tilts to ±90º
  • Milling table travels 370 x 175mm
  • Swivel safety drilling chuck guard
  • Emergency stop switch and overload protection
  • Adjustable accurate depth setting for increased productivity
  • Rack and pinion wind-up table
  • Rack and pinion wind-up drill head
  • Thick walled column ensuring greater rigidity
  • Concertina slide way cover on y axis
  • Adjustable gibs on table
  • 14mm T slotted work table and base
  • 1.1kW 415V motor
  • Includes drawbar for milling
Includes
  • Milling cutter
  • 16mm keyed drill chuck and arbor
  • Chuck key to suit
  • Drill drift tool to remove drill chuck or taper shank drills
  • Safety cutter guard
