HAFCO METALMASTERSBD-20B

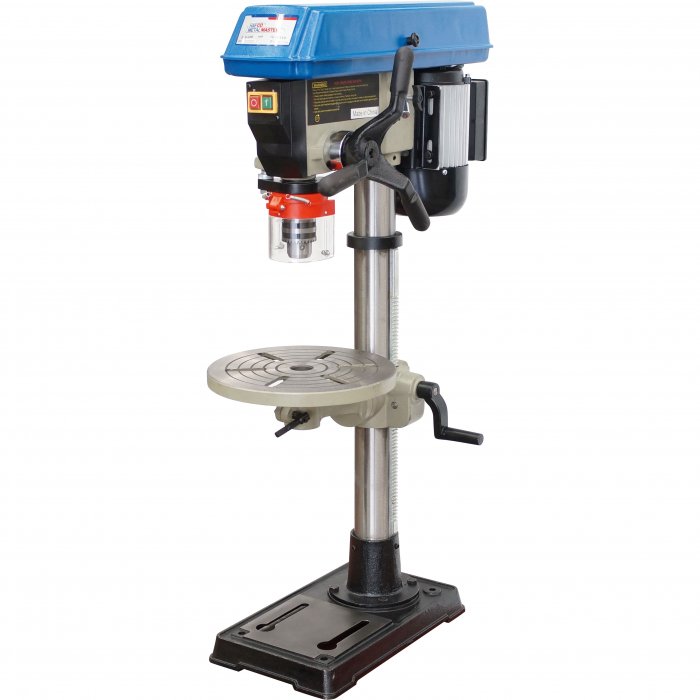

Bench Drill
  • 1 of 18
    D138
  • 2 of 18
    Left View
  • 3 of 18
    Magnetic Switch
  • 4 of 18
    Adjustable Safety Chuck Guard with Flip Up Screen
  • 5 of 18
    1 Piece Cast Iron Drilling Lever
  • 6 of 18
    Safety Micro Switch on Pulley Guard
  • 7 of 18
    Drilling Depth Stop Setting with Scale
  • 8 of 18
    Head Side View
  • 9 of 18
    Chuck Key Holder
  • 10 of 18
    M Section Belt Drive System
  • 11 of 18
    Belt Tension Lever and Lock
  • 12 of 18
    Speed Chart
  • 13 of 18
    Recommended Speed for Drill Size and Material
  • 14 of 18
    Tilting and Rotating Cast Iron Table
  • 15 of 18
    Tilt Table Scale
  • 16 of 18
    Work Table
  • 17 of 18
    Rack and Pinion Wind Up Table
  • 18 of 18
    Base
Order Code: D138
SBD-20B - Bench Drill (240V)
16mm Drill Capacity
2MT
HAFCO METALMASTER
ORDER CODE
D138
Model
SBD-20B
Bench / Pedestal Type
Bench
Duty Type
Med-Duty
Drill Capacity
16mm
Spindle Taper
2MT
Spindle Travel
80mm
Throat Depth
170mm
Quill Diameter
40mm
Collar Diameter
55mm
Column Diameter
70mm
Spindle To Table
455mm
Spindle To Base
700mm
Table Shape
Round
Table Size
300mm
Micro Switch On Pulley Guard
Drive Belt Type
M Section
Spindle Speed Steps
16
Spindle Speed Range
220-3480rpm
Motor Power
1hp
Motor Voltage
240V
Overall Height
1060mm
Weight (Nett)
55kg
Features
  • Ideal for home, workshop or farm use
  • Quiet belt drive system
  • Quick action V-belt tensioning lever
  • Drill chuck key holder mounted on left side of the machine
  • Adjustable safety drilling chuck guard with flip up screen
  • One piece cast iron drilling lever
  • Safety micro switch on pulley guard
  • Safety magnetic-type switch
  • Rack & pinion table height adjustment with locking lever
  • Thick walled column ensuring greater rigidity
  • Table tilts left & right to 45º & rotates 360º
  • Drilling depth stop setting with scale
  • Slotted work table
  • 16 Spindle speeds - 220, 280, 320, 410, 480, 520, 620, 650, 720, 860, 1310, 1430, 1910, 2080, 2400, 3480rpm
  • 240V Aluminium fan-cooled motor
Includes
  • 16mm keyed drill chuck and arbor
  • Chuck key to suit
  • Drill drift tool to remove drill chuck or taper shank drills
Product Brochure

Instruction Manual
1.7 MB
Spare Parts Ordering
