THIS PRODUCT IS NO LONGER AVAILABLE. Click to see recommended item > D178 (GHD-50)
HAFCO METALMASTERGHD-45A

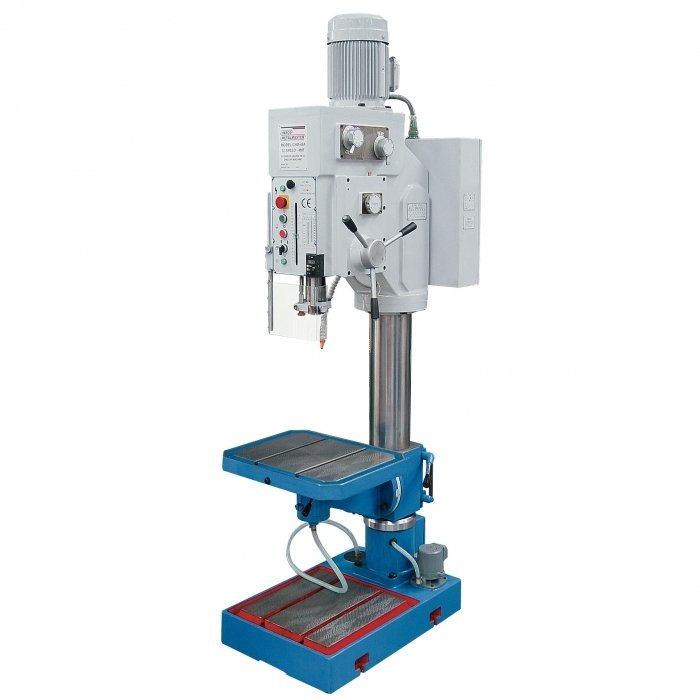

Geared Head Drill
  • 1 of 16
    D137
  • 2 of 16
    12 Drilling Speeds From 42 2050rpm
  • 3 of 16
    Gear Selection Levers
  • 4 of 16
    Cutting Chart
  • 5 of 16
    Drill Ejector
  • 6 of 16
    Head Controls
  • 7 of 16
    Automatic Feed Range
  • 8 of 16
    Emergency stop Switch and Overload Protection
  • 9 of 16
    Front Controls
  • 10 of 16
    Chuck Guard with Micro Switch and Coolant Nozzle
  • 11 of 16
    Digital Depth Gauge
  • 12 of 16
    T Slotted Work Table
  • 13 of 16
    Motorised Rise and Fall Work Table
  • 14 of 16
    T Slotted Base
  • 15 of 16
    Coolant Pump System
  • 16 of 16
    Work Light
Order Code: D137
GHD-45A - Geared Head Drill (415V)
40mm Drilling Capacity with Automatic Feed & Tapping
4MT
HAFCO METALMASTER
ORDER CODE
D137
Model
GHD-45A
Drilling Capacity
40mm
Thread Tapping Capacity
M27
Spindle Taper
4MT
Spindle Travel
180mm
Throat Depth
360mm
Quill Diameter
70mm
Column Diameter
160mm
Spindle To Table
600mm
Spindle To Base
1200mm
Table Type
Rectangle
Table Size
450 x 578mm
T-Slot Size
14mm
Automatic Quill Feed
0.07, 0.15, 0.26,

0.40mm/rev
Work Light
Coolant System
Spindle Speed Steps
12
Spindle Speed Range
42-2050rpm
Motor Power
2.8kW / 3.75hp
Voltage
415V
Full Height
2330mm
Weight (Nett)
680kg
Features
  • Ideal for industrial workshop use
  • Geared head drilling machine with 4 morse taper spindle
  • Automatic feed range (0.07, 0.15, 0.26, 0.40mm/rev)
  • Thread tapping with auto reverse
  • 12 drilling speeds from 42-2050rpm
  • Digital readout depth gauge mounted on front panel (Includes LR44 battery)
  • Chuck guard with micro-switch
  • Drill ejector incorporated in machine
  • Coolant pump system with flexible hose
  • Work light mounted in convenient location
  • 40mm drill capacity with 180mm of spindle travel
  • Oil sight glass for geared head and feed gearbox
  • Modern electrics to European CE standards
  • Forward and reverse spindle switch with high and low speeds
  • Emergency stop switch and overload protection
  • Substantial heavy walled column ensuring greater rigidity
  • Adjustable accurate depth setting with auto feed cut out for increased productivity
  • T slotted work table and base
  • Square work table tilts to ±45º and rotates 360º
  • Motorised rise & fall work table
  • 42rpm low speed for heavy drilling
Includes
  • Coolant pump system
  • Auto feed
  • Tapping function
  • Safety chuck guard
  • Work light
  • Digital depth gauge
  • Motorised work table positioning
