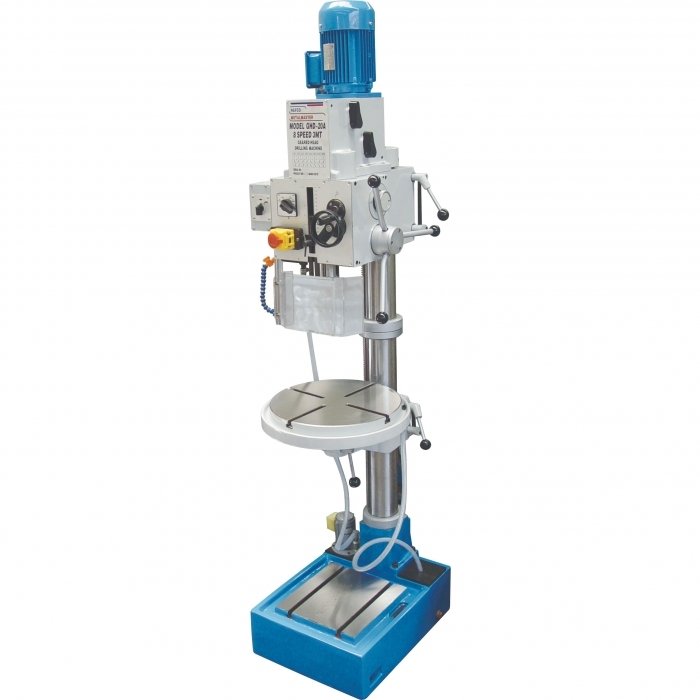

HAFCO METALMASTERGHD-20A
Geared Head Drill
  • 1 of 14
    D134
  • 2 of 14
    High Low with Forward and Reverse Switch
  • 3 of 14
    8 Drilling Speeds From 100 2900rpm
  • 4 of 14
    Gear Selection Levers
  • 5 of 14
    Micro Down Feed Adjustment
  • 6 of 14
    Head Controls
  • 7 of 14
    Automatic Feed Range
  • 8 of 14
    Emergency Stop Switch and Overload Protection
  • 9 of 14
    Rack and Pinion Wind Up Drill Head
  • 10 of 14
    Coolant Pump System
  • 11 of 14
    T Slotted Work Table Rotates 360 degrees
  • 12 of 14
    Rack and Pinion Wind Up Table
  • 13 of 14
    Quill Handle
  • 14 of 14
    Coolant Nozzle
Order Code: D134
GHD-20A - Geared Head Drill (415V)
31.5mm Drilling Capacity with Automatic Feed
3MT
HAFCO METALMASTER
ORDER CODE
D134
Model
GHD-20A
Drilling Capacity
31.5mm
Spindle Taper
3MT
Spindle Travel
140mm
Throat Depth
220mm
Quill Diameter
60mm
Column Diameter
100mm
Spindle To Table
630mm
Spindle To Base
1070mm
Table Type
Round
Table Size
ø390mm
T-Slot Size
14mm
Automatic Quill Feed
0.08, 0.16, 0.24mm/rev
Coolant System
Spindle Speed Steps
8
Spindle Speed Range
100-2900rpm
Motor Power
0.9kW / 1.2hp
Voltage
415V
Full Height
2000mm
Weight (Nett)
390kg
Features
  • Ideal for industrial workshop use
  • Geared head drilling machine with 3 morse taper spindle
  • 8 drilling speeds from 100-2900rpm
  • Automatic feed range (0.08, 0.16, 0.24mm/rev)
  • Micro down feed adjustment
  • Emergency stop switch and overload protection
  • Adjustable accurate depth setting for increased productivity
  • Thick walled column ensuring greater rigidity
  • Rack and pinion wind-up table
  • Rack and pinion wind-up drill head
  • T slotted work table and base
Includes
  • Coolant pump system
  • 16mm keyed drill chuck and arbor
  • Chuck key to suit
  • Drill drift tool to remove drill chuck or taper shank drills
