THIS PRODUCT IS NO LONGER AVAILABLE. Click to see recommended item > D1325 (GHD-38B)

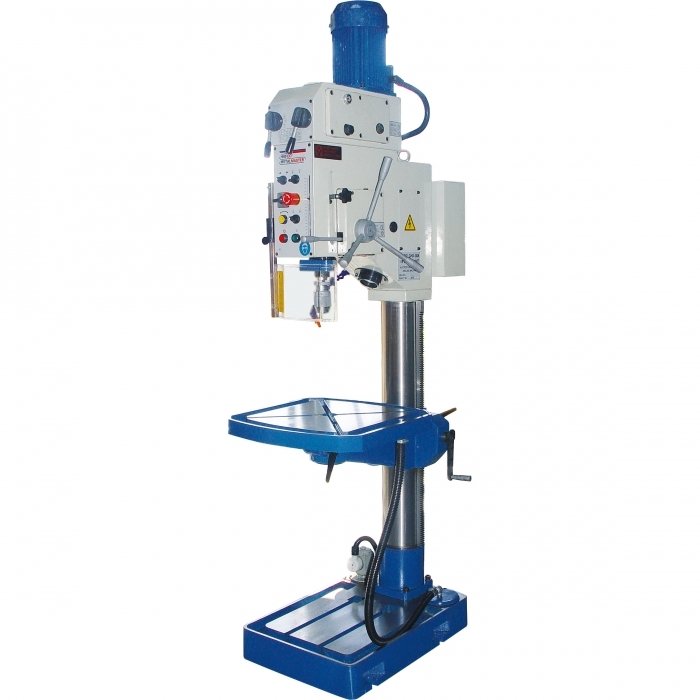

HAFCO METALMASTERGHD-38A
Geared Head Drill
  • 1 of 1
    D132
Order Code: D132
GHD-38A - Geared Head Drill (415V)
40mm Drilling Capacity with Automatic Feed & Tapping
4MT
HAFCO METALMASTER
ORDER CODE
D132
Model
GHD-38A
Drilling Capacity
40mm
Thread Tapping Capacity
M24
Spindle Taper
4MT
Spindle Travel
180mm
Throat Depth
350mm
Quill Diameter
75mm
Column Diameter
150mm
Spindle To Table
780mm
Spindle To Base
1320mm
Table Type
Square
Table Size
560 x 560mm
T-Slot Size
18mm
Automatic Quill Feed
0.1, 0.2mm/rev
Work Light
Coolant System
Spindle Speed Steps
18
Spindle Speed Range
50-1450rpm
Motor Power
1.5kW / 2hp
Voltage
415V
Full Height
2220mm
Weight (Nett)
610kg
Features
  • Ideal for industrial workshop use
  • Geared head drilling machine with 4 morse taper spindle
  • Thread tapping with auto reverse
  • Automatic feed range (0.1, 0.2mm/rev)
  • 18 drilling speeds from 50-1450rpm
  • Chuck guard with micro-switch
  • Drill ejector incorporated in machine
  • Coolant pump system with flexible hose
  • Work light mounted in convenient location
  • 40mm drill capacity with 180mm of Spindle travel
  • Oil sight glass for geared head and feed gearbox
  • Modern electrics to European CE standards
  • Forward and reverse spindle switch with high and low speeds
  • Emergency stop switch and overload protection
  • Substantial heavy walled column ensuring greater rigidity
  • Adjustable accurate depth setting with auto feed cut out for increased productivity
  • Rack and pinion wind-up table
  • T slotted work table and base
Includes
  • 16mm drill chuck and arbor
  • Coolant pump system
  • Auto feed
  • Tapping function
  • Safety chuck guard
  • Work light
Product Brochure

Instruction Manual
12.5 MB
Spare Parts Ordering
To assist you in ordering your spare part quicker than ever before, we have listed our most common spare parts to suit our Hafco Machinery for purchase online. Just choose between the 2 options outlined below, to find exactly what you are looking for. If you need further assistance please contact us.
Option 1
Browse through the "Common Spare Parts" tab below . Once you have identified your part, you can add it to your cart by clicking on the "+ ADD TO CART" button. If you wish to add multiples of this part you can either click the "+ ADD TO CART" button as many times as you like or click on the "VIEW CART" button and change the order quantity, prior to completing your order.
Option 2
If your part is NOT listed in the "Common Spare Parts" tab below , click the "MORE INFO" button to complete the "Spare Parts Enquiry Form".
This will provide you with the option to email your spare part enquiry direct to our Spare Parts and Service Department, or if you wish, you can download a printable version of this enquiry form which will include a copy of the Parts List to suit this machine (if available). Further instructions for the return email address or fax number of this printable form is provided on the document for your convenience.
NOTE: Please remember to clearly identify your part on the included parts diagram if necessary so that we can respond as quickly as possible with a price and availability for the part(s) you require.
Parts List
4.7 MB
