THIS PRODUCT IS NO LONGER AVAILABLE. Click to see similar products > Dividing Heads - Universal
TOOLMASTERBS-1A
Dividing Head - Semi Universal
  • 1 of 1
    D0021
Order Code: D0021
BS-1A - Dividing Head - Semi Universal
128mm
TOOLMASTER
ORDER CODE
D0021
Model
BS-1A
Taper
MT3
Bore
20mm

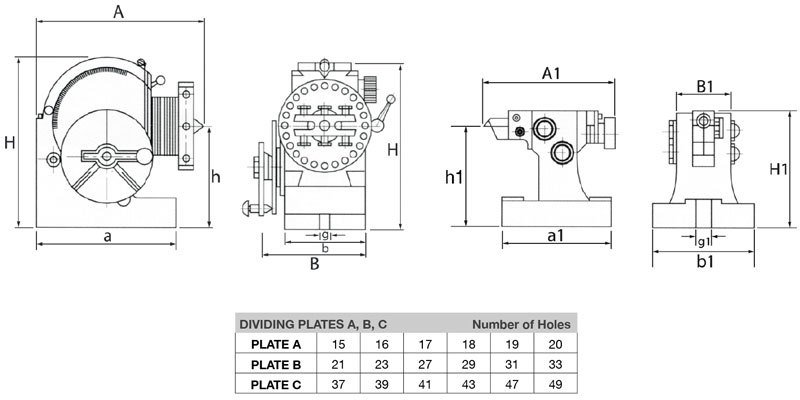

A
293mm
B
156mm
H
220mm
h (lowercase)
128mm
a (lowercase)
207mm
b (lowercase)
114mm
g
16mm
A1
191mm
B1
88mm
H1
137mm
h1 (lowercase)
128mm
a1 (lowercase)
150mm
b1 (lowercase)
108mm
g1
16mm
Weight (nett)
30kg
Features
  • Suitable for direct and indirect indexing
  • Hardened and ground spindle rigidly held between taper roller bearings
  • Threaded spindle nose for chuck mount
  • Worm is hardened and ground with ratio between worm and worm wheel 40:1
  • Direct indexing designed for quick divisions of No's 2, 3, 4, 6, 8, 12 & 24
  • The head can be swivelled from 10º below horizontal to 90º vertical
  • Designed to carry out all types of gear cutting, precision dividing
  • Slotted base on dividing head & tailstock for use with key steel to align quickly on machine

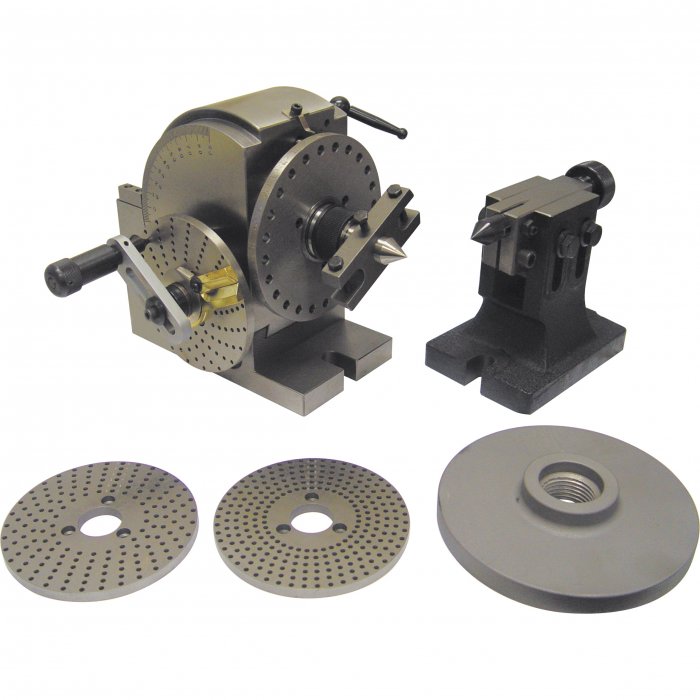

Includes
  • Backing plate suits 160mm front mount 3 jaw chuck
  • Dividing plates
  • Tailstock
  • Spindle thread 1-1/8" x 12TPI
Optional Accessories
  • Replacement Dividing Plates (D0025)
Product Brochure

Instruction Manual
5.18 MB
Spare Parts Ordering
To assist you in ordering your spare part quicker than ever before, we have listed our most common spare parts to suit our Hafco Machinery for purchase online. Just choose between the 2 options outlined below, to find exactly what you are looking for. If you need further assistance please contact us.
Option 1
Browse through the "Common Spare Parts" tab below . Once you have identified your part, you can add it to your cart by clicking on the "+ ADD TO CART" button. If you wish to add multiples of this part you can either click the "+ ADD TO CART" button as many times as you like or click on the "VIEW CART" button and change the order quantity, prior to completing your order.
Option 2
If your part is NOT listed in the "Common Spare Parts" tab below , click the "MORE INFO" button to complete the "Spare Parts Enquiry Form".
This will provide you with the option to email your spare part enquiry direct to our Spare Parts and Service Department, or if you wish, you can download a printable version of this enquiry form which will include a copy of the Parts List to suit this machine (if available). Further instructions for the return email address or fax number of this printable form is provided on the document for your convenience.
NOTE: Please remember to clearly identify your part on the included parts diagram if necessary so that we can respond as quickly as possible with a price and availability for the part(s) you require.
Parts List
2.37 MB
