GATORPS Series
3 Jaw Self Centring Lathe Chuck
  • 1 of 1
    C7161
Order Code: C7161

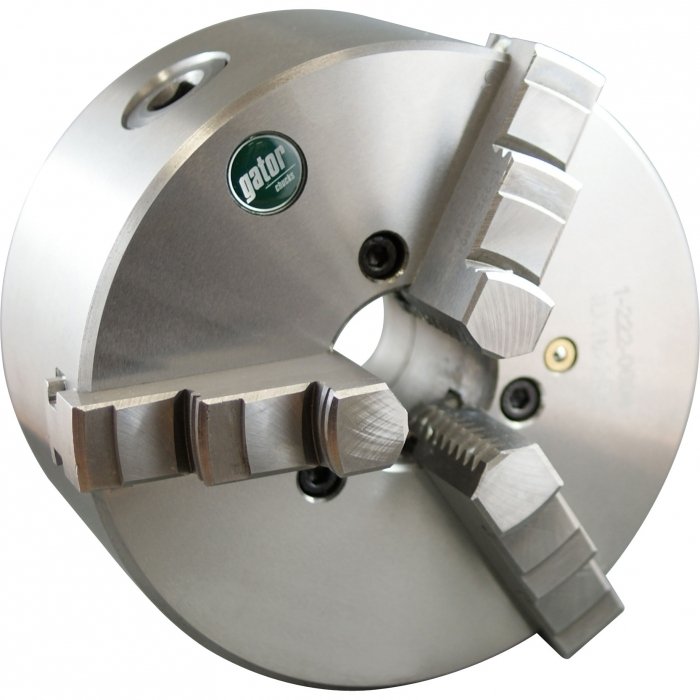

PS Series - 3 Jaw Self Centring Lathe Chuck
400mm
Back Plate Mount
Only Available From: Sydney
Additional Freight Charges May Apply
GATOR
ORDER CODE
C7161
Mounting Type
Back Plate Mount
Size
400mm
Outside Jaw
10-180mm
Inside Jaw
103-400mm
Speed
1000rpm

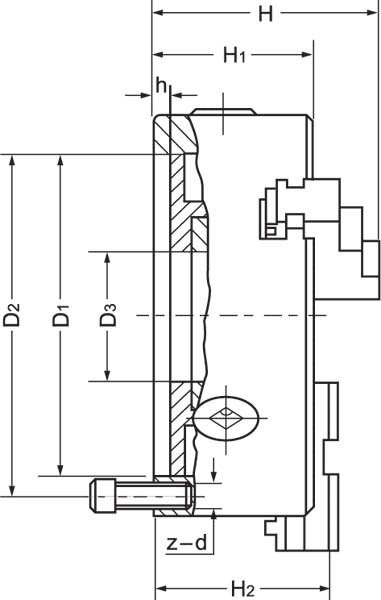

D1
330mm
D2
362mm
D3 (bore)
136mm
H
160mm
H1
105mm
h (lowercase)
5mm
z-d
6 x M16
Weight (nett)
85kg
Description
PS Series semi steel body lathe chucks are supplied with one piece standard and reverse jaws.

Gator is a world class state of the art producer of manual lathe chucks with over 30 years of manufacturing experience and production excellence. Gator chucks are manufacturing to DIN 55029 standard and built to last for precision machining applications. The state of the art, ISO 9001-2000 manufacturing facility is quality focused producing chucks for the worldwide market.

The PS Series lathe chucks are available in direct mount or back plate mount.
Features
  • Comprehensive quality assurance and accuracy testing ensure standards remain high
  • Each chuck is supplied with a set of inside and outside jaws and a chuck key
  • All bearing surfaces are precisely machined
  • Scroll plate is drop forged from fine alloy steel and finished with case hardening
  • Jaw teeth, guideways & pinions are hardened & ground
Includes
  • Outside jaws
  • Inside jaws
  • Mounting screws
  • Chuck key
