3 Jaw Self Centring Lathe Chuck - PS3-250/D1-6
Ø250mm
D1-6 Camlock Mount
C7106
1 of 4
Front View
2 of 4
Camlock Mount
3 of 4
Included Accessories
4 of 4
Discontinued
Order Code: C7106
1 Year Warranty
Description
3 Jaw Self Centring Lathe Chuck - PS3-250/D1-6
Ø250mm
D1-6 Camlock Mount
Overview
PS Series semi steel body lathe chucks are supplied with one piece standard and reverse jaws.
Gator is a world class state of the art producer of manual lathe chucks with over 30 years of manufacturing experience and production excellence. Gator chucks are manufacturing to DIN 55029 standard and built to last for precision machining applications. The state of the art, ISO 9001-2000 manufacturing facility is quality focused producing chucks for the worldwide market.
The PS Series lathe chucks are available in direct mount or back plate mount.
Gator is a world class state of the art producer of manual lathe chucks with over 30 years of manufacturing experience and production excellence. Gator chucks are manufacturing to DIN 55029 standard and built to last for precision machining applications. The state of the art, ISO 9001-2000 manufacturing facility is quality focused producing chucks for the worldwide market.
The PS Series lathe chucks are available in direct mount or back plate mount.
Features
- Comprehensive quality assurance and accuracy testing ensure standards remain high
- Each chuck is supplied with a set of inside and outside jaws and a chuck key
- All bearing surfaces are precisely machined
- Scroll plate is drop forged from fine alloy steel and finished with case hardening
- Jaw teeth, guideways & pinions are hardened & ground
Includes
- Outside jaws
- Inside jaws
- Chuck key
Compare Product Range

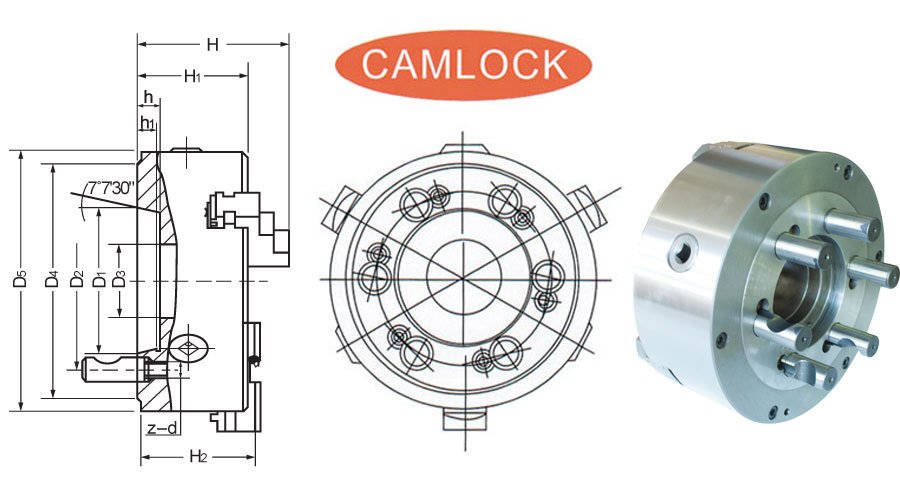

Specifications
| ORDER CODE | C7106 |
|---|---|
| (mm)Chuck Size | Ø250 |
| Camlock | D1-6 |
| (mm)Outside Jaw | 5 - 118 |
| (mm)Inside Jaw | 77 - 250 |
| (rpm)Speed | 2000 |
| (mm)D1 | 106.3 |
| (mm)D2 | 133.4 |
| (mm)D3 | 76 |
| (mm)H | 143.5 |
| (mm)H1 | 103.5 |
| (mm)h | 16 |
| (kg)Nett Weight | 40 |
Discontinued
Special Order
Special Order
Special Order
Special Order
- Compare:
- Wishlist:
- ORDER CODE
- (mm)Chuck Size
- Camlock
- (mm)Outside Jaw
- (mm)Inside Jaw
- (rpm)Speed
- (mm)D1
- (mm)D2
- (mm)D3
- (mm)H
- (mm)H1
- (mm)h
- (kg)Nett Weight
- (ex-gst)Pricing
- (inc-gst)
- On Sale
-
Compare
-
Wishlist
- C260
- Ø160
- D1-4
- 3 - 55
- 55 - 145
- 2500
- 130
- 142
- 40
- 95
- 65
- 5
- 9
- $226.36
- $249.00
- ADD TO CART
- On Sale
-
Compare
-
Wishlist
- C7064
- Ø160
- D1-4
- 3 - 64
- 50 - 160
- 3000
- 63.52
- 82.6
- 42
- 105.5
- 81.5
- 13
- 10
- $540.00
- $594.00
- ADD TO CART
- On Sale
-
Compare
-
Wishlist
- C262
- Ø200
- D1-4
- 4 - 85
- 65 - 200
- 2000
- 63.52
- 180
- 50
- 109
- 75
- 5
- 18
- $308.18
- $339.00
- ADD TO CART
- On Sale
-
Compare
-
Wishlist
- C2625
- Ø200
- D1-5
- 4 - 85
- 65 - 200
- 2000
- 165
- 104.8
- 50
- 109
- 75
- 5
- 18.5
- $308.18
- $339.00
- ADD TO CART
- On Sale
-
Compare
-
Wishlist
- C7025
- Ø200
- D1-4
- 8-180
- 62-170
- 2000
- 63.513
- ~
- 53
- 119.4
- 77.2
- 13
- 18.5
- $990.00
- $1,089.00
- ADD TO CART
- On Sale
-
Compare
-
Wishlist
- C7026
- Ø200
- D1-5
- 8-180
- 62-170
- 2000
- 82.563
- ~
- 55
- 119.4
- 77.2
- 16
- 18
- $990.00
- $1,089.00
- ADD TO CART
- On Sale
-
Compare
-
Wishlist
- C7028
- Ø250
- D1-6
- 11-220
- 70-210
- 1800
- 106.375
- ~
- 76
- 136.8
- 86
- 17
- 29.5
- $1,490.00
- $1,639.00
- ADD TO CART
- On Sale
-
Compare
-
Wishlist
- C7031
- Ø306
- D1-8
- 15-300
- 90-290
- 1800
- 139.719
- ~
- 103
- 165.3
- 107.5
- 18
- 47
- $2,150.00
- $2,365.00
- ADD TO CART
- On Sale
-
Compare
-
Wishlist
- C263
- Ø250
- D1-6
- 6 - 110
- 90 - 250
- 1600
- 106.3
- 133.4
- 80
- 120
- 80
- 5
- 26
- $390.00
- $429.00
- ADD TO CART
- On Sale
-
Compare
-
Wishlist
- C264
- Ø250
- D1-8
- 6 - 110
- 90 - 250
- 1600
- 139
- 172
- 80
- 120
- 80
- 5
- 33
- $450.00
- $495.00
- ADD TO CART
- On Sale
-
Compare
-
Wishlist
- C269
- Ø315
- D1-8
- 11.5 - 165
- 110 - 320
- 1200
- 260
- 285
- 100
- 136
- 90
- 6
- 60
- $800.00
- $880.00
- ADD TO CART
- On Sale
-
Compare
-
Wishlist
- C2695
- Ø400
- D1-8
- 11.5 - 210
- 110 - 400
- 1000
- 139.72
- 171.4
- 130
- 191.5
- 118
- 18
- 81
- $1,150.00
- $1,265.00
- ADD TO CART
- On Sale
-
Compare
-
Wishlist
- C270
- Ø400
- D1-11
- 11.5 - 210
- 110 - 400
- 1000
- 196.87
- 235
- 135
- 191.5
- 118
- 18
- 90
- $1,150.00
- $1,265.00
- ADD TO CART
- On Sale - Back In Stock Soon
-
Compare
-
Wishlist
- C2706
- Ø500
- D1-11
- 11.5 - 210
- 150 - 500
- 800
- 196.87
- 235
- 190
- 222
- 135
- 20
- 155
- $1,850.00
- $2,035.00
- ADD TO CART
