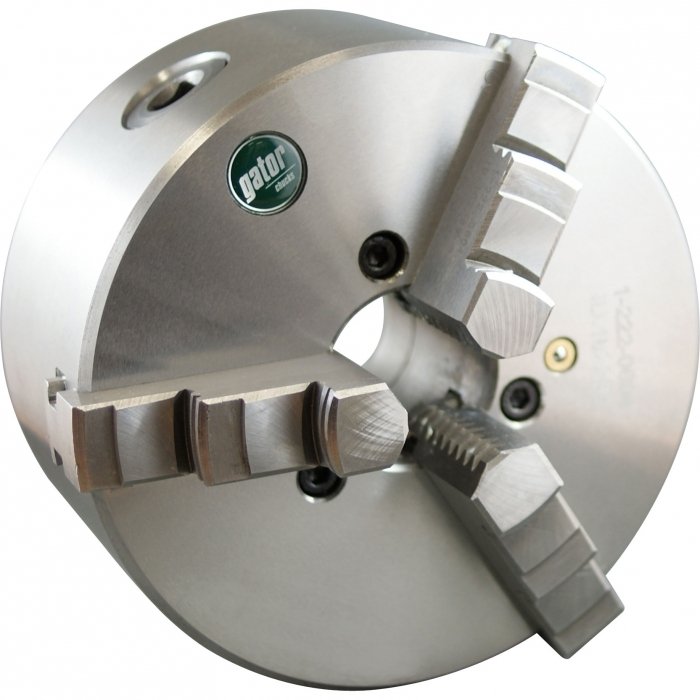

3 Jaw Self Centring Lathe Chuck - PS Series

Ø200mm

Back Plate Mount

Overview

PS Series semi steel body lathe chucks are supplied with one piece standard and reverse jaws.

Gator is a world class state of the art producer of manual lathe chucks with over 30 years of manufacturing experience and production excellence. Gator chucks are manufacturing to DIN 55029 standard and built to last for precision machining applications. The state of the art, ISO 9001-2000 manufacturing facility is quality focused producing chucks for the worldwide market.

The PS Series lathe chucks are available in direct mount or back plate mount.

Features

Comprehensive quality assurance and accuracy testing ensure standards remain high
Each chuck is supplied with a set of inside and outside jaws and a chuck key
All bearing surfaces are precisely machined
Scroll plate is drop forged from fine alloy steel and finished with case hardening
Jaw teeth, guideways & pinions are hardened & ground

Includes

Outside jaws
Inside jaws
Mounting screws
Chuck key

Specifications

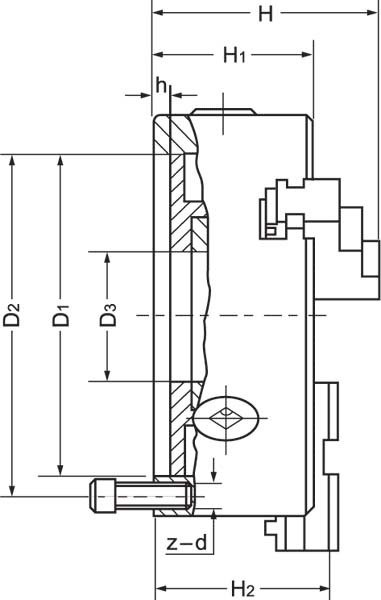

Enlarge Diagram Compare Product Range

Specifications

ORDER CODE	C7081
Mounting Type	Back Plate Mount
(mm)Chuck Size	Ø200
(mm)Outside Jaw	4 - 90
(mm)Inside Jaw	60 - 200
(rpm)Speed	2500
(mm)D1	160
(mm)D2	176
(mm)D3 (bore)	55
(mm)H	104
(mm)H1	75
(mm)h (lowercase)	4
(mm)z-d	6 x M10
(kg)Nett Weight	18
