GATORPS3-160/DI4
3 Jaw Self Centring Lathe Chuck
  • 1 of 4
    C7064
  • 2 of 4
    Front View
  • 3 of 4
    Camlock Mount
  • 4 of 4
    Parts
Order Code: C7064
PS3-160/DI4 - 3 Jaw Self Centring Lathe Chuck
160mm
D1-4 Camlock Mount
GATOR
ORDER CODE
C7064
Chuck Size (mm)
Ø160
Camlock
D1-4
Outside Jaw (mm)
3 - 64
Inside Jaw (mm)
50 - 160
Speed (rpm)
3000

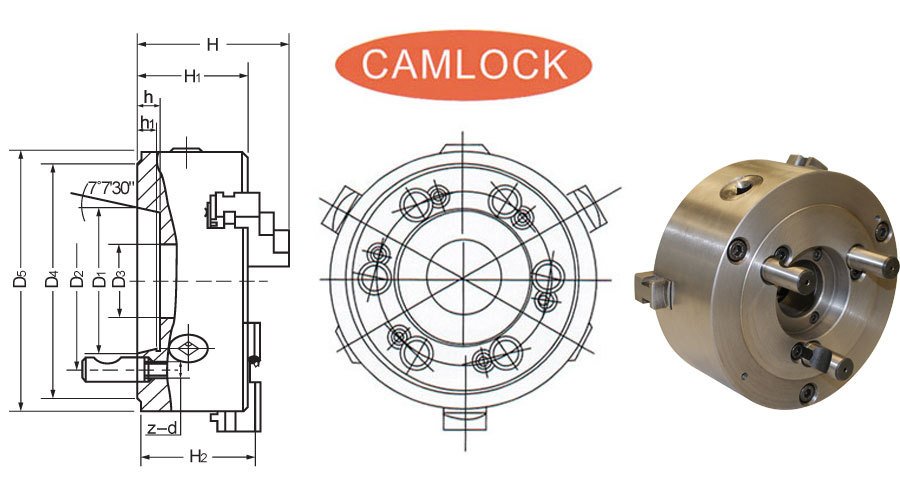

D1 (mm)
63.52
D2 (mm)
82.6
D3 (mm)
42
H (mm)
105.5
H1 (mm)
81.5
h (mm)
13
Nett Weight (kg)
10
Description
PS Series semi steel body lathe chucks are supplied with one piece standard and reverse jaws.

Gator is a world class state of the art producer of manual lathe chucks with over 30 years of manufacturing experience and production excellence. Gator chucks are manufacturing to DIN 55029 standard and built to last for precision machining applications. The state of the art, ISO 9001-2000 manufacturing facility is quality focused producing chucks for the worldwide market.
Features
  • Comprehensive quality assurance and accuracy testing ensure standards remain high
  • Each chuck is supplied with a set of inside and outside jaws and a chuck key
  • All bearing surfaces are precisely machined
  • Scroll plate is drop forged from fine alloy steel and finished with case hardening
  • Jaw teeth, guideways & pinions are hardened & ground
Includes
  • Outside jaws
  • Inside jaws
  • Mounting screws
  • Chuck key
Product Brochure
