Discontinued
Order Code: C480
Description

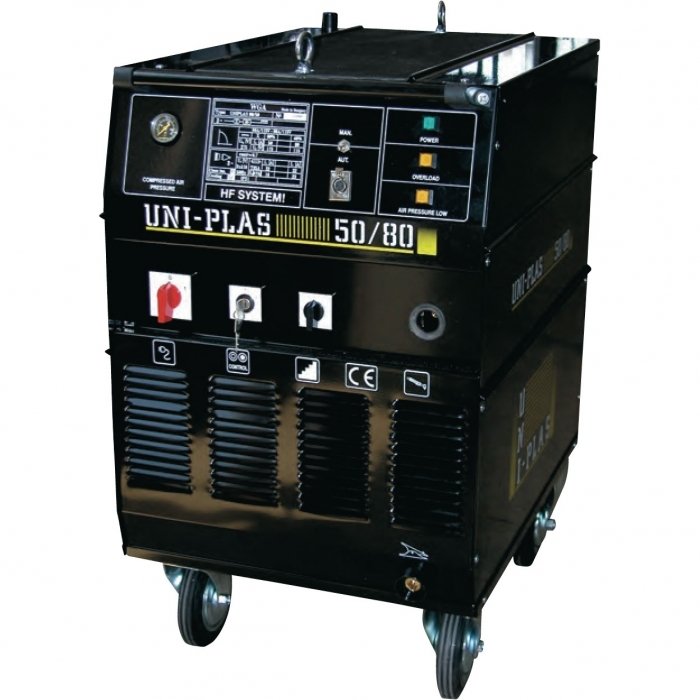

Plasma Cutter - UNI-PLAS 50/80

#KUP50/80
20mm Steel Capacity
Overview
The Uni-Plas 50/80 is a conventional high duty cycle plasma cutting machine This machine is reliable, robust and stacked with features that you expect from a quality plasma cutter. Features include switching from Manual trigger switching to Automatic trigger switching to allow use with straight neck machine cutting torches.

The Uni-Plas 50/80 produces a high temperature plasma stream, enabling effortless cutting of all electrically conductive materials including steel, cast iron, stainless steel, copper, aluminium brass etc .

The Uni-Plas 50/80 is equipped with a high quality Italian manufactured Tecmo T100 Plasma Torch developed specifically to enhance and improve the cut quality of the Uni-Plas 50/80 machine. Connection of the Tecmo T100 Plasma torch provides powerful, fast and accurate cutting performance, additional benefit is the longer life cycle of the consumable electrodes and cutting tips. The high frequency ignition ensures effortless and clean cut starts for stand off cutting, contact cutting is possible by installing the contact cutting torch parts. The Uni-Plas 50/80 is an exceptional machine that is suitable for a wide range of applications including general engineering, fabrication, agricultural, repair and maintenance services.

The Uni-Plas 50/80 is packaged with a 6 metre Tecmo T100 Plasma Torch, earth lead and air regulator. The Uni-Plas 50/80 gives you the power and performance to get the job done.


CUTS:
- STEEL
- ALUMINIUM
- STAINLESS
- COPPER
- BRASS
Features
  • Ideal for general workshop use
  • Dual amperage setting
  • Fan-cooled copper-wound transformer
  • Thermal overload protection
  • Quality torch supplied with unit
  • 415V
Recommended Accessories
Compare Product Range Compare Selected
  • Compare:
  • Wishlist:
  • ORDER CODE
  • MODEL
  • Part Number
  • (mm)Cutting Capacity - Steel
  • (mm)Cutting Capacity - Aluminium
  • (V / amp)Voltage / Amperage
  • (amp)Recommended Plug
  • Duty Cycle


  • (amp)Current Range
  • (PSI)Air Pressure Required
  • (L/min /Bar)Air Flow Capacity Required
  • (kVA)Recommended Generator KVA
  • (mm)Dimensions
  • (kg)Nett Weight
  • (ex-gst)Pricing
  • (inc-gst)
  • On Sale C4212
  • Compare
  • Wishlist
  • C4212
  • VIPER™ CUT 30 Mk ll
  • U14005K
  • 12
  • 6
  • 240 / 10
  • 10
  • 15% @ 30Amp
    100% @ 20Amp

  • 20-30
  • 70 ~ 87
  • 170 / ~
  • 8
  • 534 x 166 x 343
  • 8.5
  • $650.00
  • $715.00
  • ADD TO CART
  • On Sale - Package Deal K019
  • Compare
  • Wishlist
  • K019
  • VIPER™ CUT 30 Mk ll
  • U14005K
  • 12
  • 6
  • 240 / 10
  • 10
  • 15% @ 30Amp
    100% @ 20Amp

  • 20-30
  • 70 ~ 87
  • 170 / ~
  • 8
  • 534 x 166 x 343
  • 8.5
  • $744.55
  • $819.00
  • ADD TO CART
  • Package Deal K0191A
  • Compare
  • Wishlist
  • C4231
  • RAZOR™ CUT 45 V2
  • ~
  • 16
  • ~
  • 240 / 15
  • 15
  • 25% @ 45 amp


  • 20-45
  • 75
  • 189 / 6
  • ~
  • 546 x 169 x 341
  • 10
  • $1,761.77
  • $1,937.95
  • ADD TO CART
  • On Sale - Limited Stock C423
  • Compare
  • Wishlist
  • C423
  • RAZOR™ CUT 45
  • KUPJRRW45
  • 16
  • ~
  • 240 / 15
  • 15
  • 25% @ 45 amp


  • 20-45
  • 75
  • 189 / ~
  • ~
  • 410 x 165 x 330
  • 9.8
  • $999.09
  • $1,099.00
  • ADD TO CART
  • On Sale C4231
  • Compare
  • Wishlist
  • C4231
  • RAZOR™ CUT 45 V2
  • ~
  • 16
  • ~
  • 240 / 15
  • 15
  • 25% @ 45 amp


  • 20-45
  • 75
  • 189 / 6
  • ~
  • 546 x 169 x 341
  • 10
  • $1,400.00
  • $1,540.00
  • ADD TO CART
  • On Sale - Special Order C4204
  • Compare
  • Wishlist
  • C4204
  • ENVY CUT 45
  • SKU: U11604
  • 20 / 25 Severance
  • 14
  • 240 / 15
  • 15
  • 30% @ 45A,
    60% @ 32A, 100% @ 25A

  • ~
  • 65.27-87.02
  • 190-245 / 4.5-6.0
  • 10
  • 665 x 220 x 425
  • 23.1
  • $1,980.91
  • $2,179.00
  • ADD TO CART
  • On Sale C4291
  • Compare
  • Wishlist
  • C4291
  • RAZOR CUT 80
  • U11023
  • 35
  • 30
  • 415 / 20
  • 20
  • 40% @ 80 amp


  • 20-80
  • 58-73
  • 120-150 / ~
  • 18
  • 626 x 230 x 416
  • 22
  • $2,000.00
  • $2,200.00
  • ADD TO CART
  • On Sale - Special Order C4311
  • Compare
  • Wishlist
  • C4311
  • ENVY CUT 120
  • SKU: U11540
  • 50 / 70 Severance
  • 40
  • 415 / 32
  • 32
  • 60% @ 160A
    100% @ 100A

  • ~
  • 43.5-101.5
  • 140-330 / 3-7
  • 26
  • 810 x 280 x 520
  • 39.2
  • $3,900.00
  • $4,290.00
  • ADD TO CART
  • Special Order C4600
  • Compare
  • Wishlist
  • C4600
  • Powermax30 AIR
  • ~
  • 12mm @ 250 mm/min
  • ~
  • 240 / 15
  • 15
  • 35% @ 30Amps


  • 15-30
  • Built In
  • Built In
  • 6.8
  • 420 x 195 x 333
  • 13.5
  • $3,775.00
  • $4,152.50
  • ADD TO CART
  • Special Order C4650
  • Compare
  • Wishlist
  • C4650
  • Powermax125
  • ~
  • 44 mm @ 250 mm/min
  • ~
  • 415 / 36
  • 36
  • 100% @ 125Amps


  • 30-125
  • 85
  • 260 / 5.9
  • 53.6
  • 592 x 274 x 508
  • 48.9
  • $14,900.00
  • $16,390.00
  • ADD TO CART
  • Discontinued C480
  • Compare
  • Wishlist
  • C480
  • UNI-PLAS 50/80
  • KUP50/80
  • 20
  • 16
  • 415 / 32
  • 32
  • 40% @ 80 amp


  • 50-80
  • 80
  • 230 / ~
  • ~
  • 710 x 720 x 540
  • 155
  • N/A
  • N/A
  • ENQUIRE
