THIS PRODUCT IS NO LONGER AVAILABLE. Click to see recommended item > C429 (RAZOR CUT 80)
UNIMIGCUT105
Plasma Cutter
  • 1 of 1
    C427
Order Code: C427
CUT105 - Plasma Cutter (415V)
28mm Steel Capacity
#KUPJR105
UNIMIG
ORDER CODE
C427
Model
CUT105
Part Number
KUPJR105
Cutting Capacity - Steel
28mm Steel
Primary Input Voltage
415V 3 Phase
Recommended Plug
15A
Duty Cycle
30% @ 105A/100% @ 75A
Current Range
20-105A
Air Pressure Required
80psi
Air Flow Capacity Required
230L/min
Recommended Generator KVA
23 kVA
Dimensions
580 x 335 x 590mm
Weight (nett)
28kg
Description

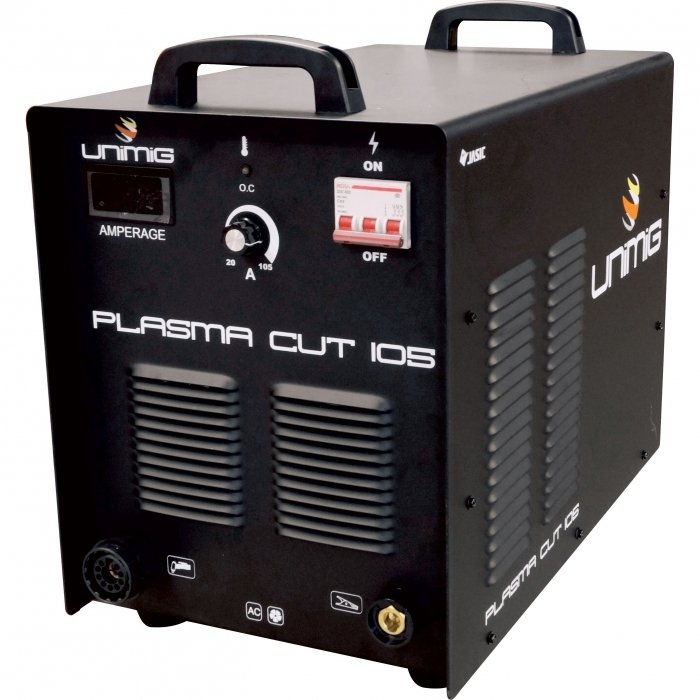

The Plasma Cut 105 is an inverter-based plasma cutting machine produced using the latest in IGBT technology. Low cost and portable this machine is reliable, robust and stacked with features that you can expect from a quality plasma cutter.

The Plasma Cut 105 produces a high temperature plasma stream, enabling effortless cutting of all electrically conductive materials including steel, cast Iron, stainless steel, copper, aluminium brass etc .

The Plasma Cut 105 is equipped with a high quality Italian Tecmo manufactured Plasma Torch developed specifically to enhance and improve the cut quality of the Plasma Cut 105 machine. Connection of the Tecmo T150 Plasma torch provides powerful, fast and accurate cutting performance, additional benefit is the longer life cycle for the consumable electrodes and cutting tips. The high frequency ignition ensures effortless and clean cut start for stand off cutting, contact cutting is possible by installing the contact cutting torch parts. The Plasma Cut 105 is an exceptional machine that is suitable for a wide range of applications including general engineering, fabrication, site work, agricultural, repair and maintenance services.

The Plasma cut is packaged with a 6 metre Tecmo T150 Plasma Torch, earth lead and air regulator. The Plasma Cut 105 gives you the power and performance to get the job done.

Built to our specification and manufactured in compliance to AS/NZ60974


CUTS:
- STEEL
- STAINLESS STEEL
- COPPER
- BRASS
- ALUMINIUM
Features
  • Latest inverter technology
  • Industrial Application
  • Euro torch connection
  • High quality Italian plasma torch
  • Auto protection of over-voltage and over current supply
  • Auto protection of short air pressure and thermal overload
  • Suitable for cutting steel, stainless steel, copper, brass and aluminium.
  • HF Start
  • Plasma cutter does requires air supply with a minimum of 220L/min
Includes
  • Air Filter Regulator
  • Gas Hose
  • 6 Metre Earth Lead
  • 6 Metre TCMO T-150 Plasma Torch
