THIS PRODUCT IS NO LONGER AVAILABLE. Click to see similar products > Plasma Cutters

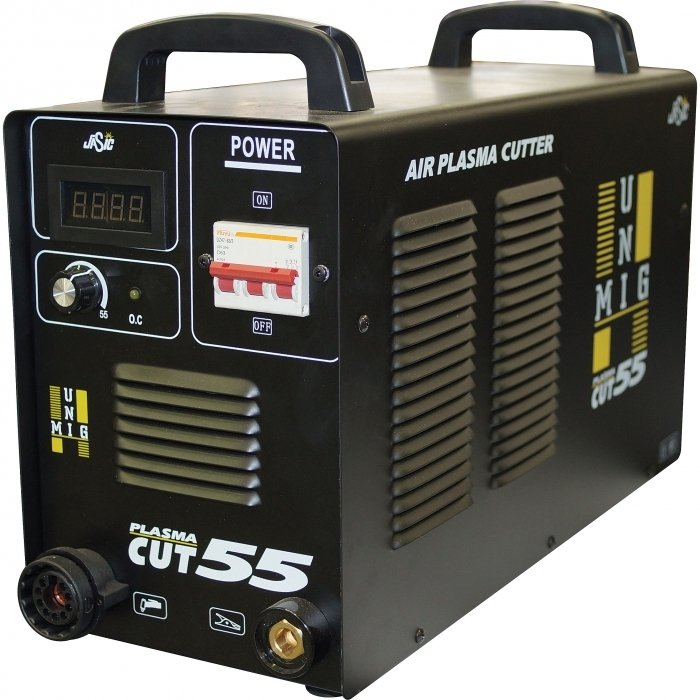

UNIMIGCUT55
Plasma Cutter
  • 1 of 2
    C425
  • 2 of 2
    Left View
Order Code: C425
CUT55 - Plasma Cutter (415V)
16mm Steel Capacity
#KUPJR55
UNIMIG
ORDER CODE
C425
Model
CUT55
Part Number
KUPJR55
Cutting Capacity - Steel
16mm Steel
Primary Input Voltage
415V 3 Phase
Recommended Plug
10A
Duty Cycle
30% @ 55A/100% @ 40A
Current Range
20-55A
Air Pressure Required
80psi
Air Flow Capacity Required
230L/min
Recommended Generator KVA
9 kVA
Dimensions
540 x 220 x 370mm
Weight (nett)
21kg
Description
The Plasma Cut 55 is an inverter-based plasma cutting machine produced using the latest in IGBT technology. Low cost and portable this machine is reliable, robust and stacked with features that you can expect from a quality plasma cutter.

The Plasma Cut 55 produces a high temperature plasma stream, enabling effortless cutting of all electrically conductive materials including steel, cast Iron, stainless steel, copper, aluminium brass etc . The Plasma Cut is equipped with a high quality Italian manufactured tecmo T100 Plasma Torch developed specifically to enhance and improve the cut quality of the Plasma Cut 55 machine.

Connection of the Tecmo T100 Plasma torch provides powerful, fast and accurate cutting performance, additional benefit is the longer life cycle of the consumable electrodes and cutting tips. The high frequencyignition ensures a effortless and clean cut start for stand off cutting, contact cutting is possible by installing the contact cutting torch parts. The Plasma Cut 55 is an exceptional machine that is suitable for a wide range of applications including general engineering, fabrication, site work, agricultural, repair and maintenance services. The Plasma Cut 55 is packaged with a 6 metre Tecmo T100 Plasma Torch, earth lead and air regulator. The Plasma Cut 55 gives you the power and performance to get the job done.

Built to our specification and manufactured in compliance to AS/NZ60974.1
Features
  • Latest inverter technology
  • Industrial Application
  • Euro torch connection
  • High quality Italian plasma torch
  • Auto protection of over-voltage and over current supply
  • Auto protection of short air pressure and thermal overload
  • Suitable for cutting steel, stainless steel, copper, brass and aluminium.
  • HF Start
  • Plasma cutter does requires air supply with a minimum of 230L/min
Includes
  • Air Filter Regulator
  • Gas Hose
  • 6 Metre Earth Lead
  • 6 Metre TCMO T-100 Plasma Torch

Product Brochure

Instruction Manual
4.56 MB
Spare Parts Ordering
To assist you in ordering your spare part quicker than ever before, we have listed our most common spare parts to suit our Hafco Machinery for purchase online. Just choose between the 2 options outlined below, to find exactly what you are looking for. If you need further assistance please contact us.
Option 1
Browse through the "Common Spare Parts" tab below . Once you have identified your part, you can add it to your cart by clicking on the "+ ADD TO CART" button. If you wish to add multiples of this part you can either click the "+ ADD TO CART" button as many times as you like or click on the "VIEW CART" button and change the order quantity, prior to completing your order.
Option 2
If your part is NOT listed in the "Common Spare Parts" tab below , click the "MORE INFO" button to complete the "Spare Parts Enquiry Form".
This will provide you with the option to email your spare part enquiry direct to our Spare Parts and Service Department, or if you wish, you can download a printable version of this enquiry form which will include a copy of the Parts List to suit this machine (if available). Further instructions for the return email address or fax number of this printable form is provided on the document for your convenience.
NOTE: Please remember to clearly identify your part on the included parts diagram if necessary so that we can respond as quickly as possible with a price and availability for the part(s) you require.
Parts List
1.28 MB
