TOOLMASTER
Magnetic Chuck
  • 1 of 4
    C300
  • 2 of 4
    Back
  • 3 of 4
    Pattern
  • 4 of 4
    Nuts and Bolts
Order Code: C300

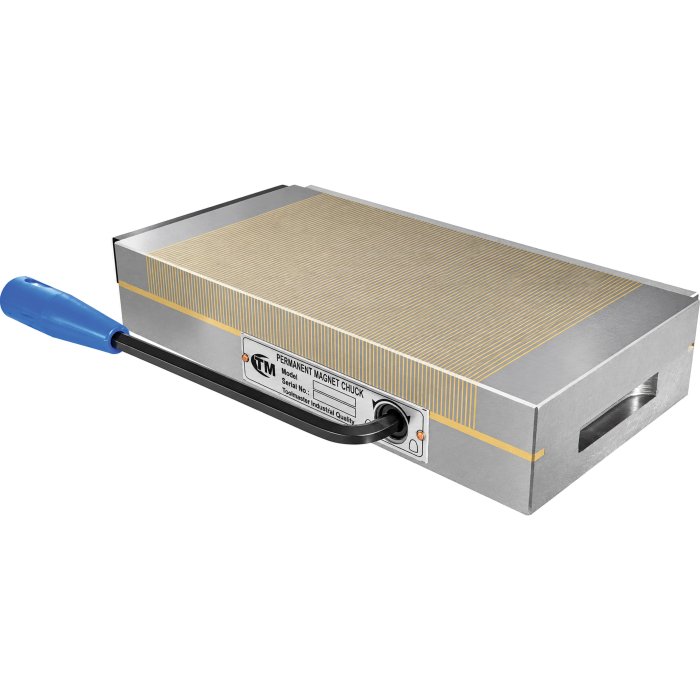

Magnetic Chuck
250mm x 125mm
120 (N/cm2) Magnetic Force
TOOLMASTER
ORDER CODE
C300

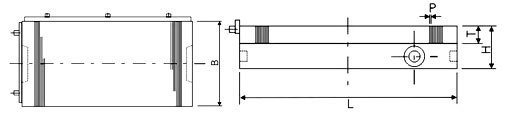

L x W x H
250 x 125 x 48mm
Magnetic Force
120 (N/cm2)
P
1 + 3mm
L
250mm
B
125mm
H
48mm
T
20mm
Weight (nett)
14kg
Features
  • Cam-operated On/Off handle to hold and release the work-piece
  • Powerful permanent magnets
  • Thick top and base plate for maximum rigidity
  • Adjustable side keeper plate
  • The fine pitched magnetic poles make it suitable for small and thin pieces.
  • Includes rear keeper plate
