THIS PRODUCT IS NO LONGER AVAILABLE. Click to see similar products > Lathe Chuck - 4 Jaw Independant - Backplate
FUERDAK72-800

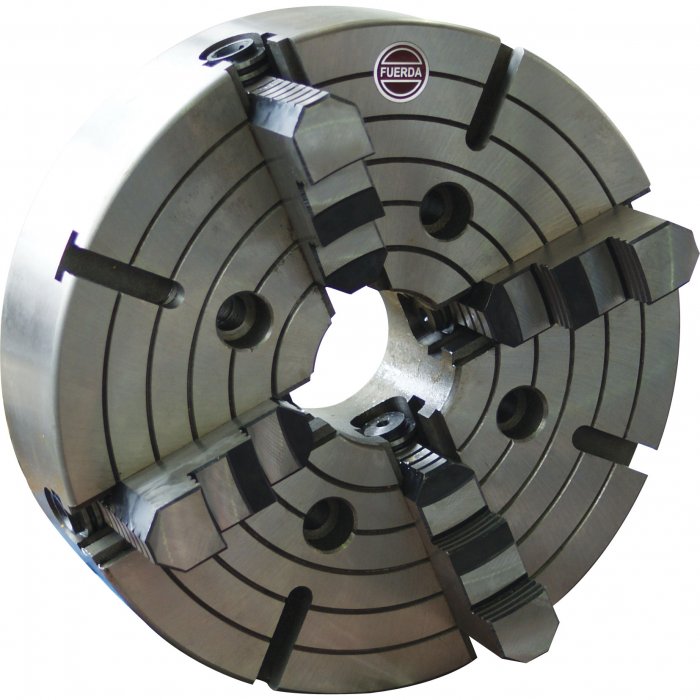

4 Jaw Independent Lathe Chuck
  • 1 of 1
    C2595
Order Code: C2595
K72-800 - 4 Jaw Independent Lathe Chuck
800mm
Back Plate Mount
FUERDA
ORDER CODE
C2595
Size
800mm
External Jaw Range
200-800mm
Internal Jaw Range
70-540mm

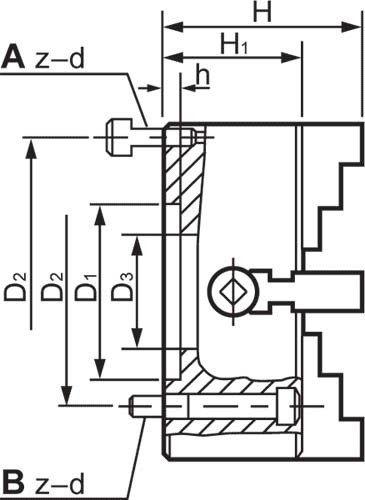

D1
250mm
D2
300mm
D3
210mm
H1
135mm
h
12mm
z-d
8-M20 (B)
Weight (nett)
300kg
Description
Manufactured from High Strength semi steel and precision machined
Jaws are case-hardened to minimise wear
Operating screws are made from alloy steel and case-hardened
Features
  • Front Mounting
Product Brochure

K72-800 Dimensions
119.77 KB
LATHE CHUCK - SAFETY NOTES
36.29 KB
