TOOLMASTERK72-125
4 Jaw Independent Lathe Chuck
  • 1 of 4
    C232
  • 2 of 4
    Front View
  • 3 of 4
    Back Plate Mount
  • 4 of 4
    Included Accessories
Order Code: C232
K72-125 - 4 Jaw Independent Lathe Chuck
125mm
Back Plate Mount
TOOLMASTER
ORDER CODE
C232
Chuck Size
Ø125
External Jaw Range (mm)
48 - 125
Internal Jaw Range (mm)
7 - 57
Speed (rpm)
3800

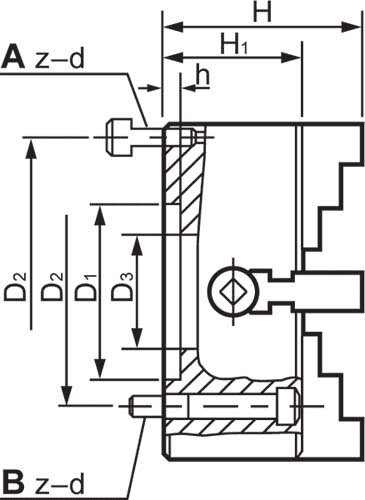

D1 (mm)
95
D2 (mm)
108
D3 (mm)
30
H1 (mm)
56
h (mm)
4.5
z-d (mm)
4 - M8
Nett Weight (kg)
5.1
Description
Manufactured from High Strength semi steel and precision machined
Jaws are case-hardened to minimise wear
Operating screws are made from alloy steel and case-hardened
Features
  • Rear Mounting
