TOOLMASTERK11 SERIES
3 Jaw Self Centring Lathe Chuck
  • 1 of 3
    C202
  • 2 of 3
    Back Plate Mount
  • 3 of 3
    Included Accessories
Order Code: C202
K11 SERIES - 3 Jaw Self Centring Lathe Chuck
125mm
Back Plate Mount
TOOLMASTER
ORDER CODE
C202
Mounting Type
Back Plate Mount
Size
125mm
Outside Jaw
2.5-40mm
Inside Jaw
38-110mm
Speed
3800rpm

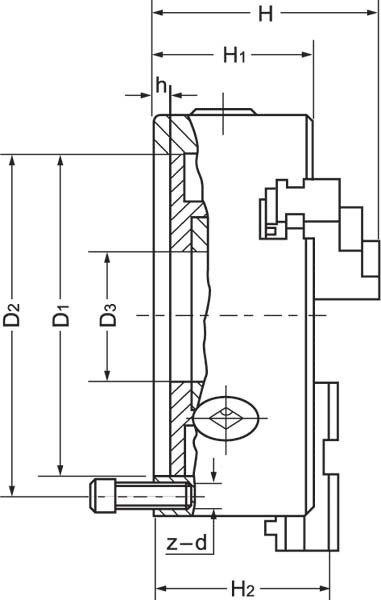

D1
95mm
D2
108mm
D3 (bore)
30mm
H
84mm
H1
58mm
h (lowercase)
4mm
z-d
3 x M8
Weight (nett)
5kg
Description
K11 Series cast iron body lathe chucks are built to GB/T 4346.2-2002 standard, and supplied with one piece standard and reverse jaws.

World-class and industry leader in manufacturing manual lathe chucks for over 30 years. ToolMaster precision tolerance lathe chucks are ISO 9001-2000 approved, and ensure high quality with accuracy testing on every chuck.
Includes
  • Outside jaws
  • Inside jaws
  • Mounting screws
  • Chuck key
