THIS PRODUCT IS NO LONGER AVAILABLE. Click to see similar products > Live Centres
TOOLMASTERHi-Speed
Live Centre
  • 1 of 1
    C0751
Order Code: C0751

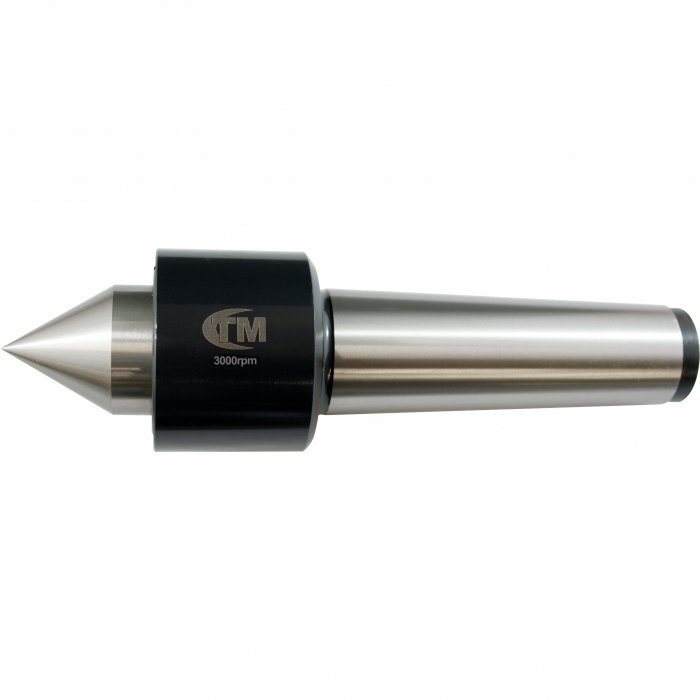

Hi-Speed - Live Centre
5MT
TOOLMASTER
ORDER CODE
C0751

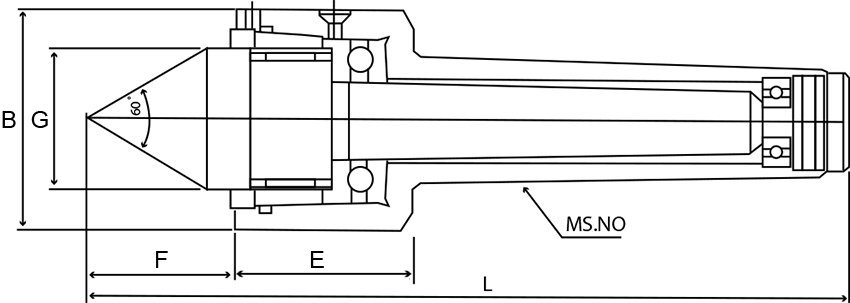

Taper
5MT
Point Type
Standard
B
70mm
E
54mm
F
55mm
G
45mm
L
240mm
Maximum RPM
3000rpm
Maximum Load Capacity
2000kg
Weight (nett)
3.03kg
Description
Toolmaster live centre's are fitted with needle, thrust and ball bearings suitable for high speed CNC turning with medium to heavy loads.
The shaft is made from alloy steel heat treated to HRC 60° providing high rigidity and high durability.
Features
  • 60º Standard point Angle
  • Maximum speed 3000rpm
  • Maximum load 2000kg
  • Accuracy 0.005mm
