TOOLMASTER
Live Centre Set - Interchangeable Centring Tips
  • 1 of 3
    C0631
  • 2 of 3
    Top View in Case
  • 3 of 3
    Plastic Case
Order Code: C0631
Live Centre Set - Interchangeable Centring Tips
3MT
TOOLMASTER
ORDER CODE
C0631
Taper
3MT
Maximum Speed
4500rpm
Maximum Load Capacity
400kg
Weight (nett)
1.74kg
Description
Toolmaster live centre sets are fitted with needle thrust and ball bearings. Suitable for High Speed CNC turning with medium to heavy loads. The shaft is made from alloy steel heat treated to HRC 60° providing high rigidity and high durability.
Features
  • Maximum Speed: 4500rpm
  • Maximum Load: 400kg
  • Accuracy: 0.005mm
Includes

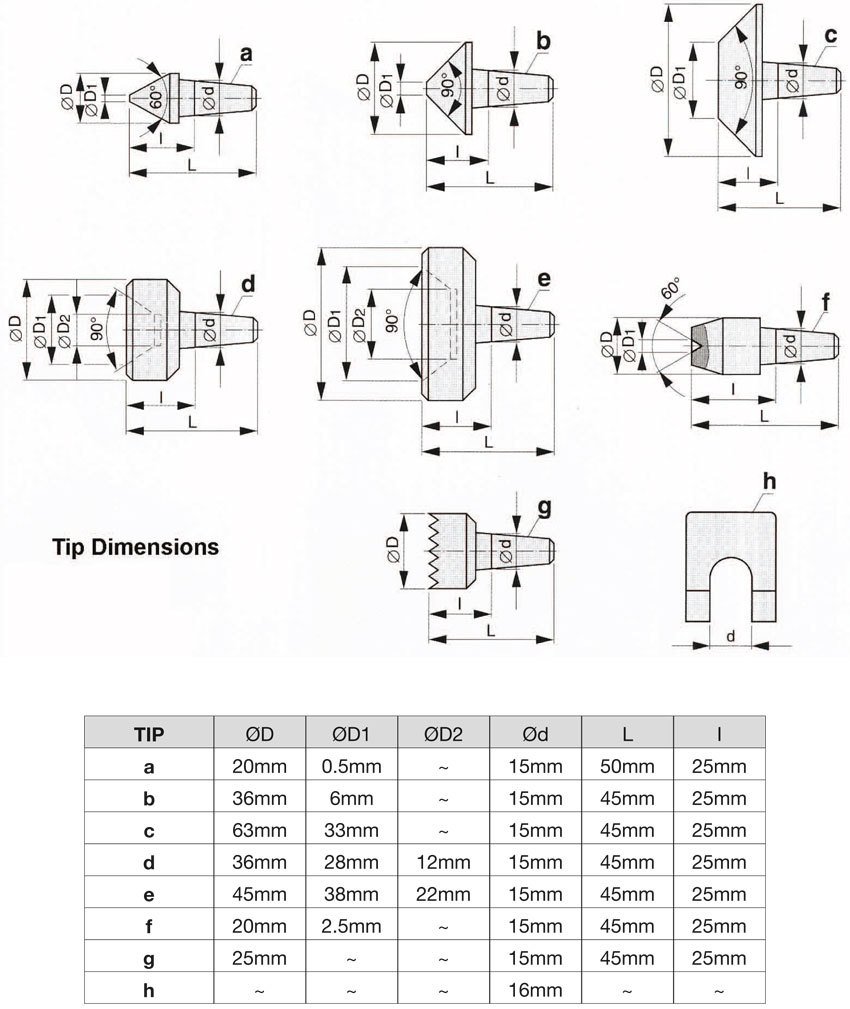

  • 7 interchangeable centring tips for various operations:
  • 1 x Carbide tip extended point
  • 1 x Pipe centre (a)
  • 2 x Female cone (b,c)
  • 3 x Various standard points

Product Brochure
