BS350/60 AFI-NC

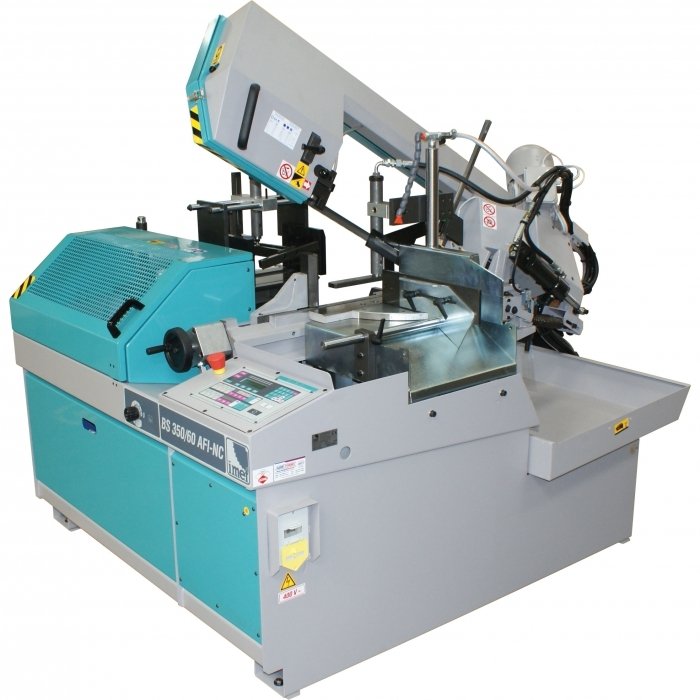

Automatic Hitch Feed Metal Cutting Band Saw
  • 1 of 17
    B106
  • 2 of 17
    Blade Guides
  • 3 of 17
    Blade Guides Rear View
  • 4 of 17
    Material Sensor
  • 5 of 17
    Cleaning Hose
  • 6 of 17
    Motor Gearbox Drive System
  • 7 of 17
    Control Panel
  • 8 of 17
    Down Feed Control
  • 9 of 17
    Switch Open
  • 10 of 17
    Switch Shut
  • 11 of 17
    Front Guard Open
  • 12 of 17
    Front View
  • 13 of 17
    Side View
  • 14 of 17
    Bundle Clamp
  • 15 of 17
    Hydraulic Unit
  • 16 of 17
    Angle Swivel Head
  • 17 of 17
    Blade Cleaning Brush
Order Code: B106
BS350/60 AFI-NC - Automatic Hitch Feed Metal Cutting Band Saw (415V)
350 x 200mm (W x H) Rectangle Capacity
ORDER CODE
B106
Model
BS-350/60 AFI-NC
Operation Type
Swivel Head
Cutting Head Beam Type
Fully-Automatic
Cutting Head Beam Return
Auto-Hydraulic Return
Cutting Head Down Feed Control
Adjustable Hydraulic
Round @ 90º
305mm
Round @ 45º
250mm
Round @ 60º
175mm
Square @ 90º
250mm
Square @ 45º
230mm
Square @ 60º
155mm
Rectangle (W x H) @ 90º
350 x 200mm
Rectangle (W x H) @ 45º
230 x 200mm
Rectangle (W x H) @ 60º
170 x 100mm
Vice Clamping Fixture
Automatic-Hydraulic
Bundle Cutting Fixture
Coolant System
Table Working Height
880mm
Blade Steps / Speeds
Variable 18-100 M/min
Blade Size (L x W x T)
3370 x 27 x 0.9mm
Motor Power
1.8kW / 2.5hp
Voltage
415V
Weight (nett)
890kg
Description
European Quality Made in Italy
Features
  • CNC automatic band saw, hydraulically driven enables 99 different cutting lengths and number of cuts can be memorised, with the possibility to repeat them more than once
  • CNC controls with programming of all operations; machine status shown on display, including blade speed, piece counter; working anomalies shown, too; setting of the cutting lengths (from 4 - 9999mm) by means of the keyboard on the control panel with repetition hitch feeder strokes
  • Mitre cutting from 0° to 45° right in automatic cycle and from 0° to 60° right in semi-automatic cycle
  • Automatic Kerf Compensation: = Blade Cut Thickness for multiple indexing: This function allows and calculates the blade cut thickness into the programmed cut length so you achieve desired length required (factory pre-set)
  • Hydraulic fixed vice, anti-burr hydraulic vertical vice on the unloading side
  • Adjustment of the blade tension from the front side of the saw frame, checked by an end-stroke
  • Electronic inverter control for variable speed from 18-100m/min
  • Bundle cutting clamps ( Nesting Fixture ) allows 300 x 120mm or 120 x 20mm capacity
  • Blade tension 2300 kg/cm, blade guides with hard metal pads will enable a longer blade life providing the correct cutting parameters are set
  • Hardened chromium-plated and tempered metal blade guides & additional bearing for blade alignment
  • Mechanical device (position sensor) that allows the saw frame to lower quickly toward the material and automatically switch to cutting feed rate for increasing production
  • Feeder with 350 mm opening, maximum stroke 515 mm, minimum stroke 4 mm (minimum scrap 80 mm); incremental feeding with automatic calculation of the blade thickness.
  • Connection for loading table with two vertical rollers, unloading slide, connection for unloading table with guide for cutting pieces.
  • Main switch with minimum tension coil, emergency button, thermal and magnetic motor protection
  • Low voltage (24V), main switch with interlocking attachment and minimum tension coil
  • Automatic diagnostics circuit displaying error messages to immediately located obstruction
  • Removable chip collector tank, coolant tank with electro-pump, washing gun for cleaning, hydraulic unit with oil; blade-cleaning brush, bi-metal blade
  • Tools and user's manual
  • In compliance with CEE Safety and Electromagnetic Compatibility standards(EMC)
  • Electrics according to the EN60204-1, EN55011, EN50082-2 EN50082-2 standards
Includes
  • Coolant Unit
  • Blade Cleaning Brush
  • 1 x Blade
  • Hydraulic Feed
