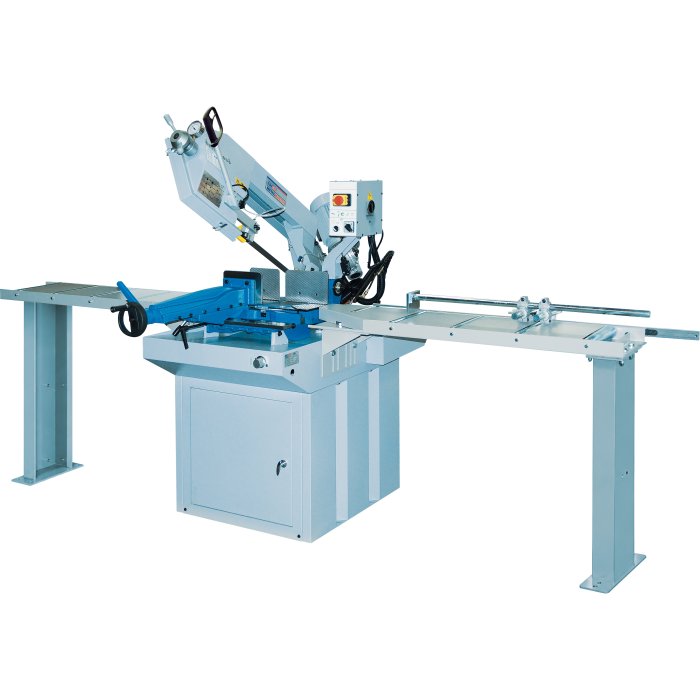

HAFCO METALMASTEREB-330DSC
Swivel Head-Dual Mitre Metal Cutting Band Saw with Conveyor System
  • 1 of 21
    B075
  • 2 of 21

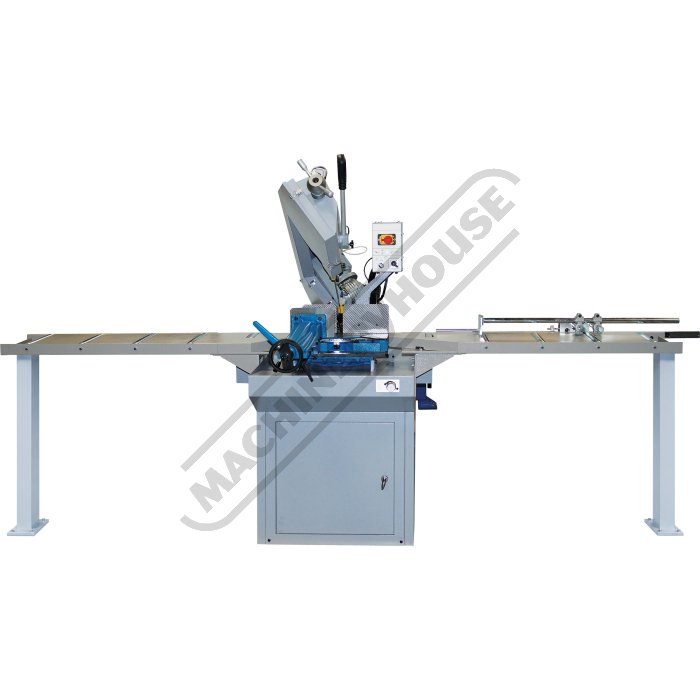

    90 Degrees Cut
  • 3 of 21

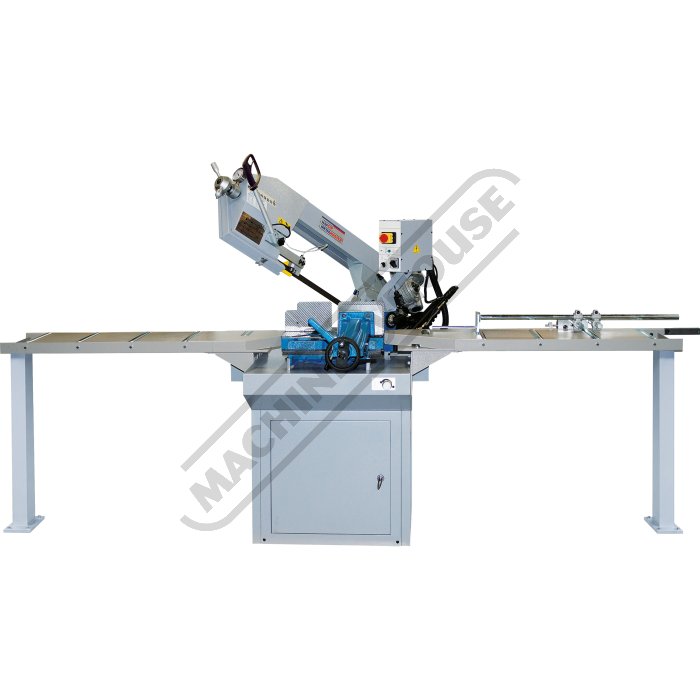

    Swivel Head, 45 Degrees Left Cut
  • 4 of 21

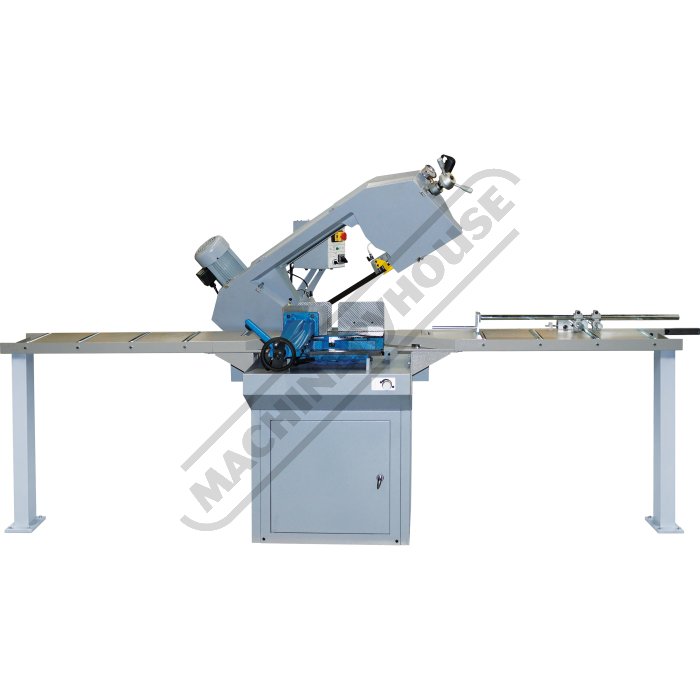

    Swivel Head, 60 Degrees Right Cut
  • 5 of 21
    Control Panel
  • 6 of 21
    Out Feed Roller Table with Length Stop
  • 7 of 21

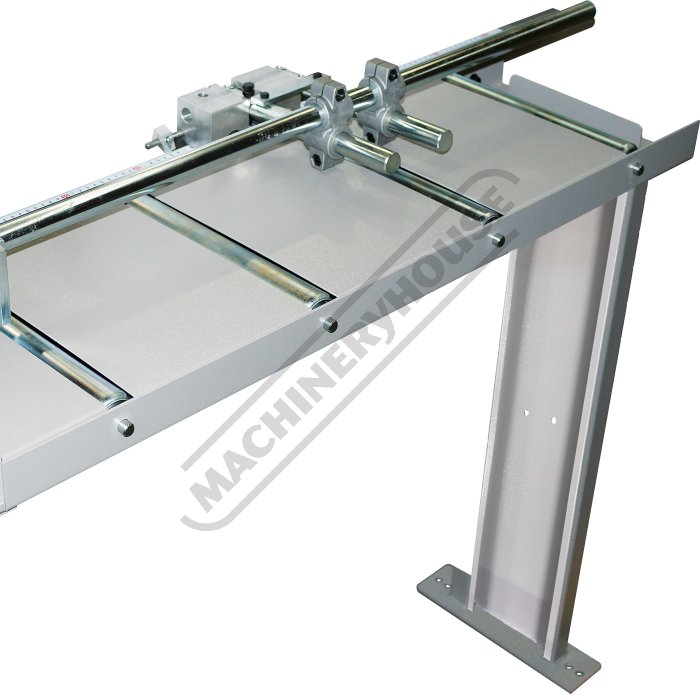

    Length Stop on Ball Bearing Slide with Flip Up Action
  • 8 of 21
    Dual Mitre Rotating Table on Ball Bearings
  • 9 of 21

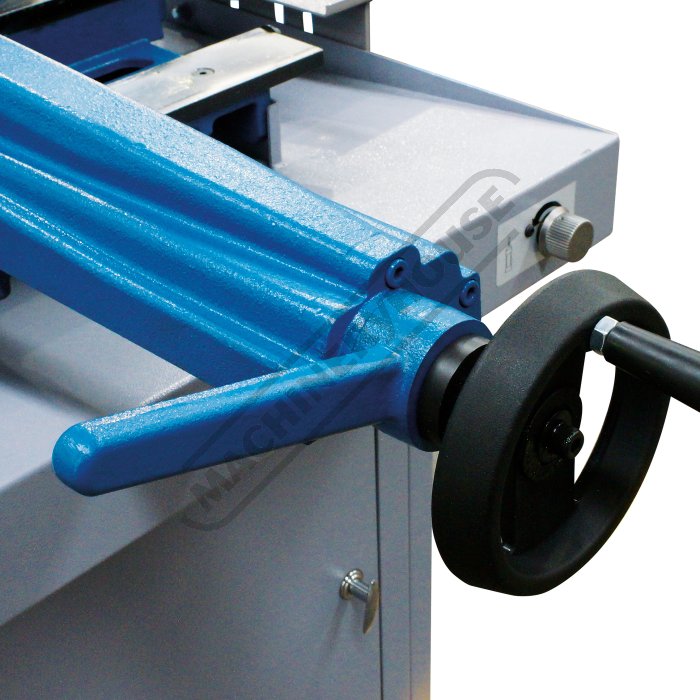

    Quick Action Material Clamp Lever
  • 10 of 21
    Quick Action Lever For Material Setup
  • 11 of 21

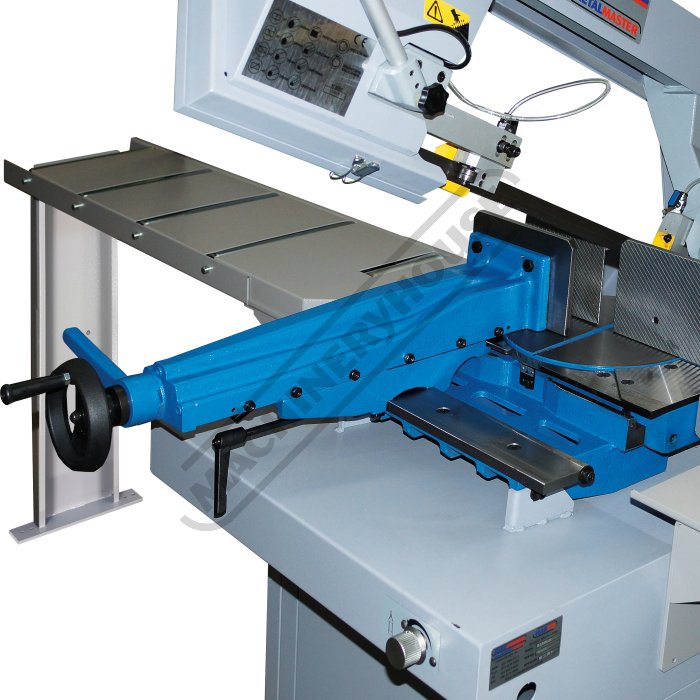

    Quick Release Silding Vice
  • 12 of 21
    Adjustable Hydraulic Blade Feed Dial
  • 13 of 21
    Blade Tension Device with Gauge
  • 14 of 21
    Trigger Control
  • 15 of 21
    Ball Bearing and Carbide Blade Guides
  • 16 of 21
    Blade Cleaning Brush
  • 17 of 21
    Coolant System
  • 18 of 21
    Motor and Gearbox
  • 19 of 21
    Blade Guard Micro
  • 20 of 21
    Blade Cut Out Switch
  • 21 of 21
    Cutting Capacity Chart
Order Code: B075
EB-330DSC - Swivel Head-Dual Mitre Metal Cutting Band Saw with Conveyor System (415V)
295 x 230mm (W x H) Rectangle Capacity
2 Blade Speed 36 - 72mpm
HAFCO METALMASTER
On Special - Ends 30th June 2017
ex GST
inc GST
$5,250.00
$5,775.00
$4,850.00
$5,335.00

ORDER CODE
B075
MODEL
EB-330DSC
Operation Type
Swivel Head - Dual Mitre
Round @ 90º (mm)
260
Round @ 45º (mm)
240
Round @ 60º (mm)
160
Square @ 90º (mm)
230
Square @ 45º (mm)
210
Square @ 60º (mm)
130
Rectangle (W x H) @ 90º (mm)
295 x 230
Rectangle (W x H) @ 45º (mm)
225 x 210
Rectangle (W x H) @ 60º (mm)
160 x 130
Coolant System
Table Working Height (mm)
950
Cutting Head Beam Type
Manual
Cutting Head Beam Return
Manual Return
Cutting Head Down Feed Control
Adjustable Hydraulic
Vice Clamping Fixture
Manual - Quick Action
Blade Steps / Speeds (m/min)
36, 72
Blade Size (L x W x T) (mm)
2965 x 27 x 0.9
Motor Power (kW / hp)
1.2 / 1.6
Voltage / Amperage (V / amp)
415
Nett Weight (kg)
404
Features
  • 295 x 230mm rectangular capacity
  • Control panel with "Auto", "Manual" & "Set-Up" modes
  • Unique rotating table swivels with the cutting head on ball bearings
  • Swivel head double mitre cut to 45º right & left, 60º right
  • Quick action lock/release lever for swivel head
  • Swivel head incorporates rotating
  • Quick action vice release to change opening & closing position
  • Quick-action clamping lever for repetition work
  • Unique sliding vice design for dual mitre operation
  • User friendly blade tension system with gauge
  • Larger cutting capacity than conventional cold saws
  • Adjustable length stop for repetition cutting
  • Heavy-duty gear drive system
  • 2 x blade speeds 36 - 72mpm
  • Ball bearing blade guides ensures minimal blade clearance wear and increases blade life due to less friction
  • Coolant system for cutting efficiency and blade life
  • Adjustable hydraulic cylinder for auto feed
  • Vibration free, low noise operation ensures clean & high precision cuts
  • Machine stand with integrated cooling fitted as standard
  • Made in Taiwan
Includes
  • In & out feed roller conveyor system with stands
  • Material length stop on ball bearing slide with flip over design
